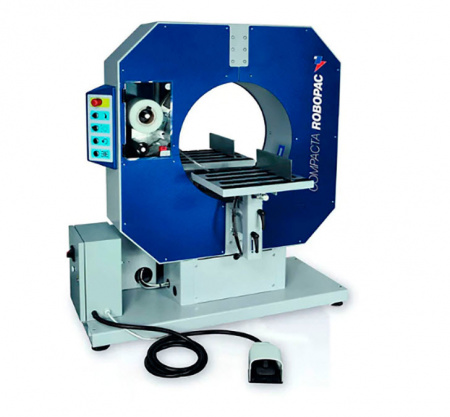

Robopac Compacta 6 Semi-Automatic Horizontal Stretch Wrapper, 120V, 87 PSI


Compacta semi-automatic horizontal rotating ring stretch wrappers are designed for low- to midvolume production. They are designed for bundling long, narrow products like wood molding, aluminum, and plastic extrusion as well as tubing, textiles, and carpet. Safe, simple operation includes automatic film clamping and cutting. Compactas feature constant film tensioning to improve package integrity and reduce film breaks.

FEATURES

  • FILM CARRIAGE UNIT: The film carriage unit has a direct-breaking transmission roller, and it is adjustable at any time. It also eases spool loading and film insertion to a maximum. The spool carriage device is equipped with locking and quick release of the spool
  • CUTTING AND CLAMP UNIT: The automatic highly reliable dual rod clamping and cutting system fully automates the wrapping process
  • START AND STOP PEDAL: The wrapping program can be started in full safety thanks to the pedal start system
  • Operator Interface: Control Panel: Single Purpose Knobs and Buttons for Tension and speed control
  • Safety Features: Emergency Stop Push Button, CE Compliant, Double lateral guides with adjustable side


logo

SPECIFICATIONS

  • Max Roll Width: 5 in
  • Turntable Diameter: 24 in
  • Height: 16 in
  • Max Wrap Height: 61 in
  • Min Roll Width: 5 in
  • Assembly Required: Yes
  • Type: Semi Automatic Stretch Wrapper
  • Color: Blue
  • Series: Compacta 6/li>
  • Control: Single Purpose Knobs & Buttons For Tension & Speed Control
  • Voltage: 120 V
  • Phase: 1
  • Description: Compacta 6 Semi-Automatic Stretch Wrapper
  • Mast Vertical Movement: Semi-Automatic
  • Programmable: Yes
  • Speed: 120 rpm
  • Amperage: 10 A
  • Warranty: 1 Year

logo

AVAILABLE COMPACTA MODELS

Robopac Compacta 4 120V, 87 PSI
Robopac Compacta 9 5 Inches Carriage, 120V, 87 PSI
Robopac Compacta 12 400V, 87 PSI

DEMO VIDEO





If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: Compacta 6

SPECIFICATIONS

  • Max Roll Width: 5 in
  • Turntable Diameter: 24 in
  • Height: 16 in
  • Max Wrap Height: 61 in
  • Min Roll Width: 5 in
  • Assembly Required: Yes
  • Type: Semi Automatic Stretch Wrapper
  • Color: Blue
  • Series: Compacta 6/li>
  • Control: Single Purpose Knobs & Buttons For Tension & Speed Control
  • Voltage: 120 V
  • Phase: 1
  • Description: Compacta 6 Semi-Automatic Stretch Wrapper
  • Mast Vertical Movement: Semi-Automatic
  • Programmable: Yes
  • Speed: 120 rpm
  • Amperage: 10 A
  • Warranty: 1 Year
