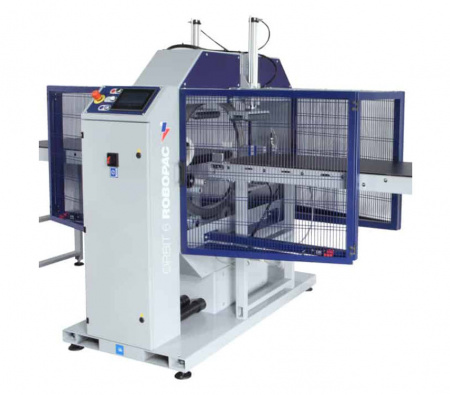

ROBOPAC ORBIT 6 – HORIZONTAL WRAPPING MACHINE

Call Toll Free: 877.336.6877 for Pricing

Availability
Online
In Store
Same Day

Description

ROBOPAC ORBIT 6 – HORIZONTAL WRAPPING MACHINE

The Orbit Range is where two technologies meet. The flexibility needed by high-speed and high-performance line machines becomes available on Entry Level horizontal machines to be added to work cells or integrated lines.

All Orbit machines are equipped with anti-accident protection applying the most recent, restrictive European safety standards for line machines. The Orbit Range is technology made available by Robopac's experience in horizontal ring machines and its competence when providing standardization and modularity solutions. Feel free to contact Al Thika Packaging for further assistance.

PRODUCT VIDEO



Performance features:

COLOUR TOUCH SCREEN
The control panel has been newly designed, adopting it to a touch screen. Thanks to the large color screen this new panel allows you to create programs simply and immediately. It is supplied with more memory to record up to eight different programs.

SPOOL CARRIAGE UNIT
The Spool carriage unit has a direct breaking transmission roller and it is adjustable at any time it also eases spool loading and film insertion to a maximum. The spool carriage device is equipped with locking and quick release of the spool.

CUTTING AND CLAMPING UNIT
The automatic highly reliable dual rod clamping and cutting system fully automates the wrapping process.

FEATURES

  • Perfect for spiral wrapping elongated products.
  • Equipped with electro-welded mesh safety guards to protect the operator during operation.
  • Infeed and outfeed units automatically adjust to ensure proper stabilization of the product.
  • Length of run can be adjusted manually to compensate for products of varying height.
  • Highly reliable, dual rod cut and clamp system fully automates the wrapping process.
  • Seven (7) inch color touch screen accurate, easy-to-understand controls are displayed on every screen allowing for quick and simple operation. Store up to 20 unique, user-defined wrapping programs.

SPECIFICATIONS

  • Max Rotation Speed : 120 RPM

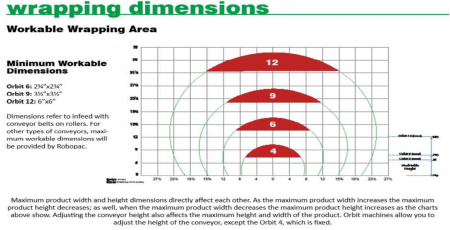

  • Minimum Workable Dimensions : 2.75 Inches x 2.75 Inches
  • Film Delivery System :
    • Pre-stretch : Friction Roll :
    • Contact Film Tensioning
    • Pneumatic Cold Cutting & Clamping Unit
    • Film Width : 5 Inches
    • Maximum Ext. Diameter: 8 Inches
    • Core Diameter : 3 Inches
  • Operator Interface : Control Panel: Icon driven color touch screen
  • Utility Requirements :
    • Power supply voltage : 480 V, 3 PH
    • Working Pressure : 90 PSI
    • Installed Power : 1.5 HP
  • Safety Features :
    • Emergency Stop Push Button
    • Safety Guard Door and Switch
  • Warranty : 1 Year

logo

AVAILABLE ROBOPAC ORBIT MODELS

ROBOPAC ORBIT 4
ROBOPAC ORBIT 9
ROBOPAC ORBIT 12


If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: ORBIT 6

SPECIFICATIONS

  • Max Rotation Speed : 120 RPM
  • Minimum Workable Dimensions : 2.75 Inches x 2.75 Inches
  • Film Delivery System :
    • Pre-stretch : Friction Roll :
    • Contact Film Tensioning
    • Pneumatic Cold Cutting & Clamping Unit
    • Film Width : 5 Inches
    • Maximum Ext. Diameter: 8 Inches
    • Core Diameter : 3 Inches
  • Operator Interface : Control Panel: Icon driven color touch screen
  • Utility Requirements :
    • Power supply voltage : 480 V, 3 PH
    • Working Pressure : 90 PSI
    • Installed Power : 1.5 HP
  • Safety Features :
    • Emergency Stop Push Button
    • Safety Guard Door and Switch
  • Warranty : 1 Year
