Description

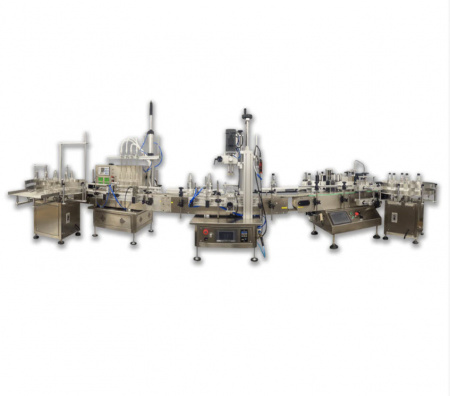

SNEED-PACK LIQUID FILLING PRODUCTION LINE

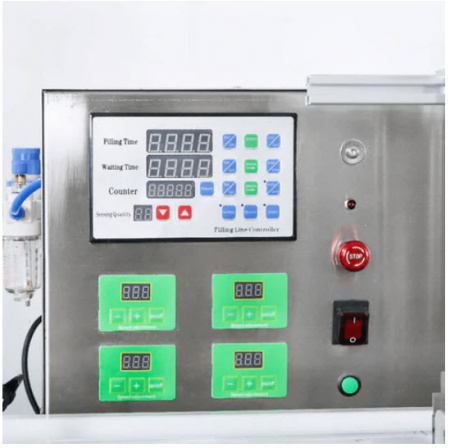

Upgrade your filling process with the efficient SNEED-PACK Liquid Filling Production Line. Bid Farewell to manual tasks as you automate the process of filling, capping, and labeling bottles. Benefit from impressive productivity rates: unscramble 40-60 bottles per minute, fill 30-50 bottles per minute, cap 20-40 bottles per minute, and label 20-60 bottles per minute (varying with bottle and label sizes). This comprehensive line includes a bottle unscrambler, a four-head liquid filler, a capper, a labeler, and an accumulation table at the end of the line, guaranteeing precise and efficient operations. Enjoy the flexibility of customizing dimensions, speeds, filling times, and more using the intuitive user-friendly controls.

SNEED-PACK Production Line Components

Rotary Unscrambler

• Turntable Diameter: 600mm
• Suitable Bottle Diameter: 30-80mm
• Suitable Bottle Height: Max 2500mm
• Working Speed: 40-60 bottles/min(depends on bottle size)
• Motor Power: 40W
• Power Supply: 220V 50/60hz
• Net Weight: 27.5kg

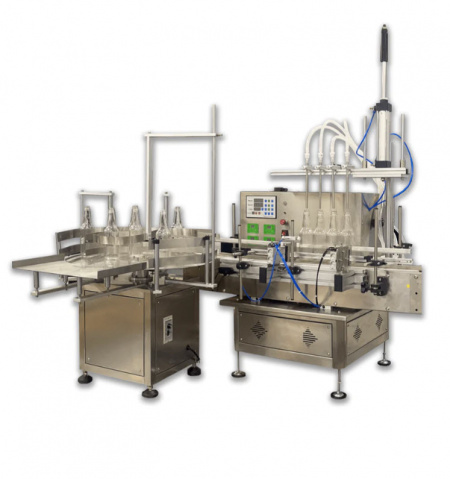

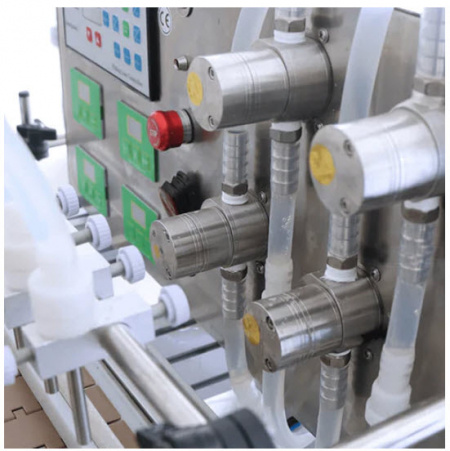

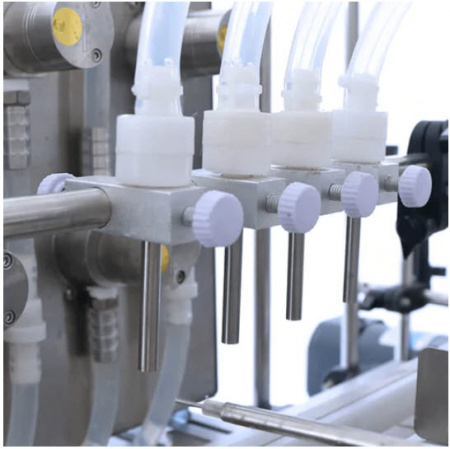

4-Head Liquid Filler, Peristaltic Pump

• Power Supply: AC110V/220V 50hz/60hz 60W(Each Pump)
• Filling Range: 2500ml/min
• Maximum Flow: 2500m/min for each nozzle (based on water)
• Filling Nozzles: 4 (we can customize the nozzles based on your demands)
• Working Speed: 30-50 bottles/min (based on bottles and liquids)
• Air Pressure: 0.3-0.4MPa
• Filling Accuracy: ?±1% (For water)
• Diameter of Filling Nozzle: 6/8mm
• Delay Range: 0.01-999.9s
• Belt Length: 1m
• Size of Air Compressor Connector: OD8mm
• Package Size: 1150*770*840mm
• Package Weight: 110kg

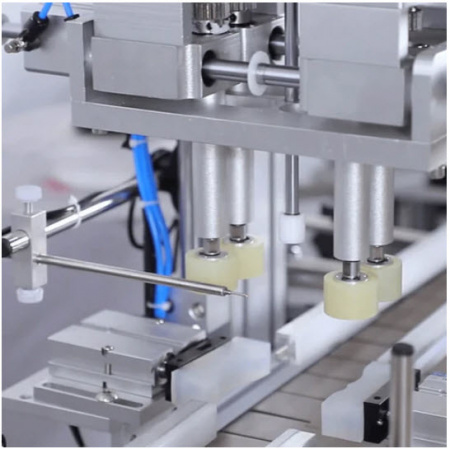

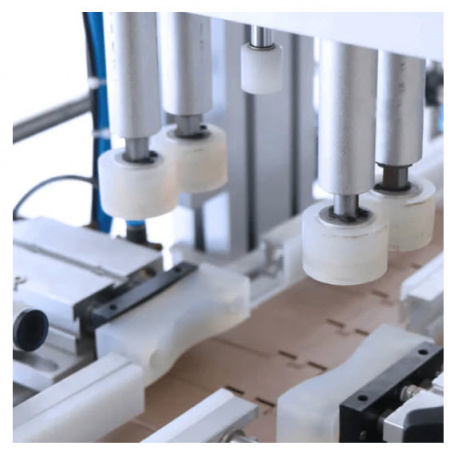

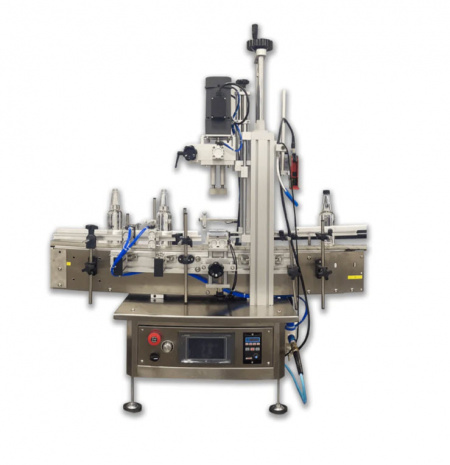

Capper

• Bottle Height: 60-270mm
• Bottle Caps Diameter: 18-70mm
• Working Speed: 20-40 bottles/minute (depending on bottle and caps)
• Working Voltage: AC220V/110V 50/60hz
• Working Pressure: 0.4-0.6 MPa
• Machine Size: 1120*580*1110mm
• Package Size: 1160*610*1140mm
• Package Weight: About 97.5kg
• Conveyor Length: 1117mm
• Size of Air Compressor Connector: OD8mm

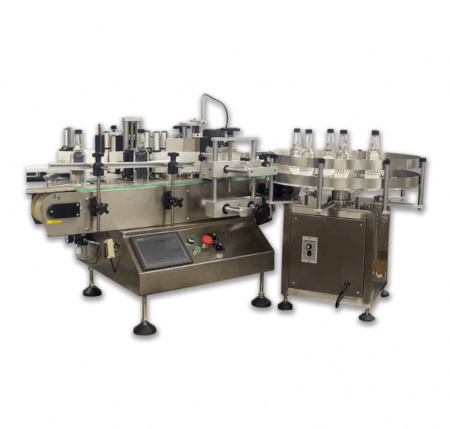

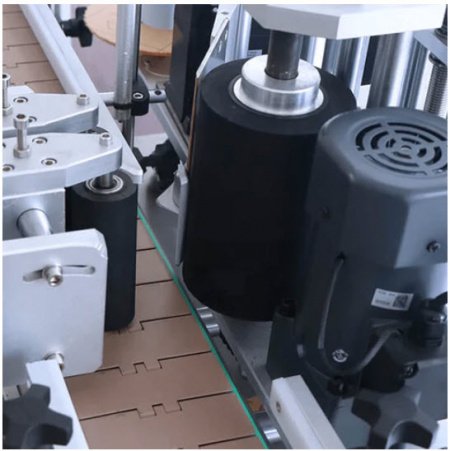

Labeler

• Voltage: 110V 60hz
• Working Speed: 20-50 bottles/min
• Suitable Labeling Size: 15-140mm (W) x 25-300mm (L)
• Roll Inside Diameter: 76mm
• Roll Outside Diameter: 350mm
• Suitable Bottle Diameter: Max 100mm
• Package Size: 1290*860*900mm
• Package Weight: 130kg

Accumulating Table

• Turntable Diameter: 600mm
• Suitable Bottle Diameter: 30-80mm
• Suitable Bottle Height: Max 2500mm
• Working Speed: 40-60 bottles/min (depends on bottle size)
• Motor Power: 40W
• Power Supply: 220V 50/60hz

Crating & Freight

Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $1995 - there may be additional charges for destinations outside the continental United States.
A lift gate delivery is included when we ship crated items. The Flat Shipping Rate applies whether residential, commercial, school, or military delivery.

Lead Time

SNEED-PACK Liquid Filling Production Line is built to order. 3-4 month lead time.

Warranty Information

12 Month Manufacturer's Warranty
