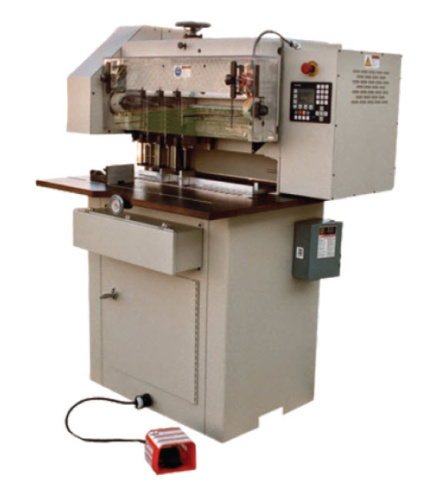

The Lawson "M" Paper Drill Size -1/8 Inches to 1/2 Inches
Description
The Lawson Model "M" paper drill is the next generation on the well known model "B" paper drill. The model "M" has been design to the same exact standards that have made the Dexter- Lawson brand the most widely used heavy duty paper drill. This machine with it's three lift height and gear-driven head rail, is designed to meet the needs of the high volume bindery. This machine can drill up to ten holes, if required, and will not stall in drilling. Because of it's weight and design, the model "M" will run very comfortably in a 24/7 setting.
Easy Operation
The touch screen controls and the self-squaring back and side gauge, makesetting up and operating simple.Heavy Duty Design
The Model M, with it's three inch liftheight and gear-driven head rail, isdesigned to meet the needs of the highvolume bindery applications.More Control
Variable lift and spindle speeds let youcontrol how fast or slow to drill, makingthe Model M more efficient andproductive than other drills.Features
- Heavy duty design
- Full 3 Inches lift height
- Gear box transmission, no hydraulics
- 3 hp drive motor
- 1 1/2 hp lift motor
- Touch screen controls
- Easy set up
- Variable spindle speeds
- Variable lift speeds
Includes
- (5) Drill Heads
- (6) Drill Bits
- (1) Silicone Spray Lubrication Unit
- (1) Box of drill stick banding
- (1) grease gun with lubricating grease, various tools for setup,
- (1) drill sharpener with carbide reamer
Optional Add Ons
- (1) Vacuum Chip Disposal Unit
- (1) Additional Drill Heads
Specifications:
- Self-squaring back gauge:
- Micrometer side guide:
- Table height: 37 1/4 Inches
- Tabe size: 42 Inches wide x 32 Inches deep
- Weight: 1650 lbs
- Overall height: 65 Inches
- Back gauge depth: 9 Inches
- Speeds (headrail CPM): max. 18 min. 12
- Speeds (spindle RPM): max. 3600 min. 12000
- Electric: 220v/ 3 phase/ 60hz
- Drill size: 1/8 Inches to 1/2 Inches
- Compressed air required:50 - 70psi
Drilling:
- Variable spindle speed control
- Slow-down, fast-up head rail motion
- Grip type spindle w/ hex nut in drill head
- Vertical spindle adjustment while running
- Finished lifts ejected onto delivery conveyor
Maintenance:
- Simplified design
- Heavy duty construction
- Minimum lubrication requirements
- Lawson hand drill sharpener
- Swing away guards for accessibility
Positioning:
- Minimum change-over adjustment
- Calibrated rule for positioning heads
- Accommodates standard and high lift drills
- Fast, easy removal, positioning or replacement heads
- Straight through synchronized conveyors
Safety features include:
- Full interlock safety guarding
- Mid-cycle auto stop
- Auto in-feed & delivery, no operator exposure
- Enclosed and guarded
- Head rail equipped Pneumatic brake
