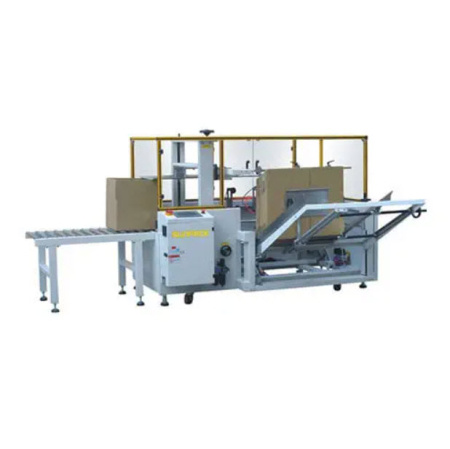

XT-40 Semi-Automatic Carton Erector Entry Level Corrugated RSCs
Description
XT-40 Semi-Automatic Carton Erector Entry Level Corrugated RSCs
Vertical storage, for which carton blanks can be added at any time without stopping the machine; It's suitable for forming and sealing cartons of uniform size. If the carton size need to be changed, the operator should adjust the machine manually(finishing in 2-3 minutes); It's rationally designed so that the forming, folding, and sealing process are accomplished simultaneously; All the parts are precise and durable, without causing any vibration in running. Running steadily with long life; Light in weight, high performance, and speed.Features
- Case erector
- With bottom sealing
- Rigid machine body
- Safety control box
- 8-10pcs/Minute
SPECIFICATIONS
- Model: XT-40
- Applicable Material: BOPP tape
- Material Specification: Length:1000 meters
- Thickness: 60 mic
- Tape head: 2 or 3 Inches
- Sealing Size(L x W x H): L 200-450 × W 150-400 × H 100-350 mm
- Table Height: 600-720 mm
- Power Supply: 220V 50hz 1phase or 110V 60hz 1 phase
- Control System: Safety control box
- Belt width: 50 mm
- Sealing Speed: 8-10/Minute
- Air supply: 0.6-0.7 Mpa
- NW: 400 kg
- Machine Dimension: L2000 × W 1900 × H 1450 mm
DEMO VIDEO
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | XT-40 |
