Foster All-A-Board Lifter (Height Adjustable) - 61612-T
Description
Foster All-A-Board Lifter (Height Adjustable) - 61612-T

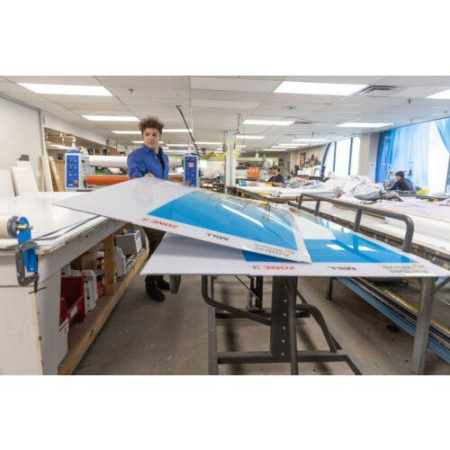

Foster All-a-Board Lifters minimize the risk of injury to your operators and damage to valuable rigid substrates. You can easily transport and lift 500 lbs. of 4' x 10' media. Load boards stored on skids onto the All-a-Board Lifter in the vertical position, 360º heavy-duty rotating (and locking) caster allows you to maneuver through standard doors and narrow passages. right up to your flatbed printer or cutter. The top rotates and locks into a flat position. Hydraulically raise the table to feed boards into the printer or cutter one sheet at a time. 1-year Warranty on gas springs, casters & catches.The All-A-Board® Lifter moves rigid substrates through narrow aisles, doors, and between machinery. Feed boards into printers, and use as a mobile workbench to meet changing workflow and space requirements. Solidly constructed with these ergonomics.
Design Features:
- Body frame is constructed from clear anodized, t-slotted extruded aluminum fastened with metric hardware and extrusion-specific fasteners
- Handle along the back of the frame allows operators to maneuver and rotate table-top from vertical to flat position

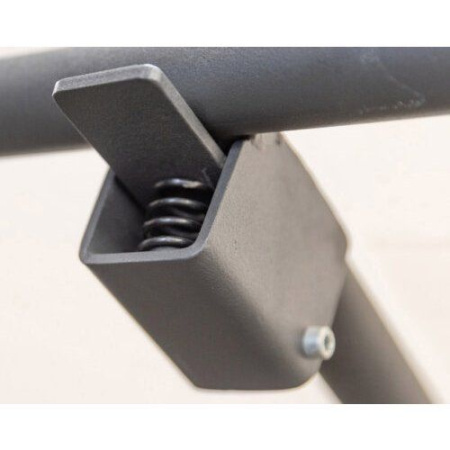

- Spring loaded latch mechanism locks table-top in flat position

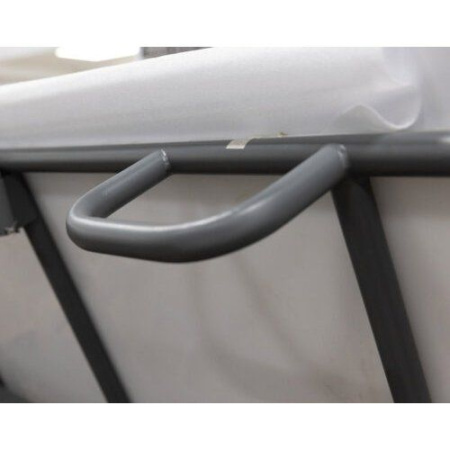

- Pull handle allows the operator to easily release the latch mechanism and return the table to vertical position
- Durable high-pressure laminate surface, fastened to Lifter frame with counter-sunk (Flat Head Cap Screw) hardware that prevents scratching and is impact resistant

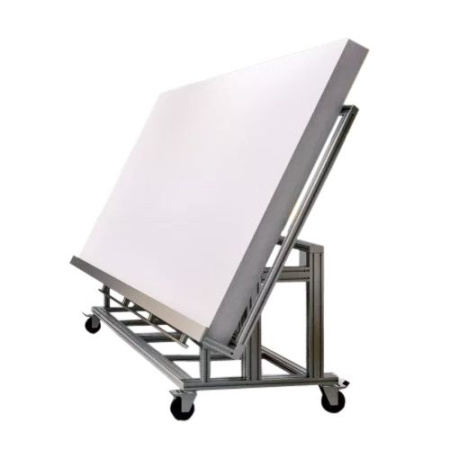

- In the vertical position, boards can be loaded and secured against the ledge bracket to prevent accidental handling damage during transport.
Important Features:
- Quickly load a 6 Inch stack of boards
- Rotate and lock into a flat position
- Operator can quickly and safely load boards onto printers and cutters

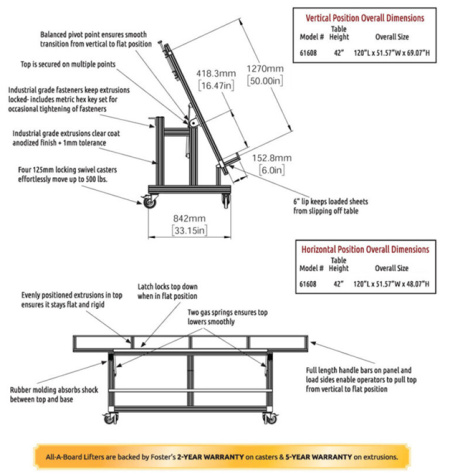

- Industrial grade extrusions clear coat anodized finish + 1mm tolerance
- Four 5 Inch diameter locking swivel casters can transport up to 1,000 lbs of 4’ x 10’ media
- Full-length handlebars on panel and load sides enable operators to pull the top from vertical to flat position
- Warranty: 2-year warranty on casters & 5-year warranty on extrusions
Product Details
- 3-ft. wide tilt in the vertical position guides the user through narrow aisles, doorways, and around tight corners.

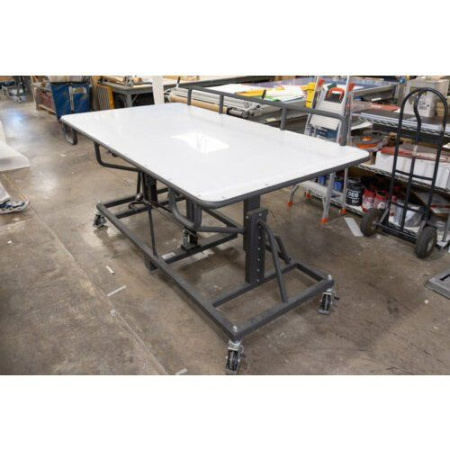

- Functions as a workbench or table in a flat position.
- Durable high-pressure laminate surface, fastened to Lifter frame with counter-sunk (Flat Head Cap Screw) hardware that prevents scratching and is impact resistant.
- Four heavy-duty 5” diameter swivel locking casters for smooth maneuvering.
- Welded steel frame ensures long-lasting use.
- Quickly and safely feed boards onto printers, cutters, and laminators without bending or lifting.

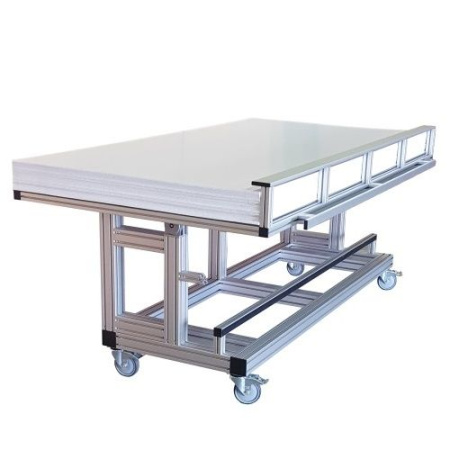

- In a flat position, the Lifter functions as a mobile workbench, moving from station to station and freeing up valuable floor space.
- Deck rails keep 8” stacks of rigid substrates from shifting during transport and loading.
- The tilt down and locking feature lets the operator safely move heavy sheets from horizontal to vertical position.
- Spring-loaded latch mechanism locks tabletop in a flat position.
- ONE OPERATOR can use the handlebar under the table for easy maneuvering of materials and rotation from a vertical to a flat position.
Specifications

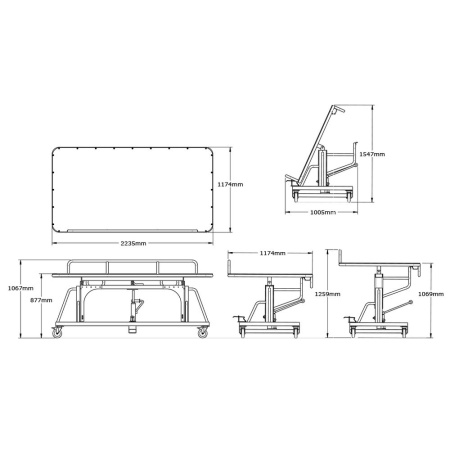

- Maximum Board Size: 8' x 4'
- Maximum Weight Capacity: 500 lbs.
- Min/Max Deck Height: 34 Inch - 42 Inch H
- Max. Tilting Angle: 66°(at 32 Inch H)
- Warranty: 2-Year Manufacturer's Warranty on Hydraulics. 5-year warranty on the frame.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | 61612-T |
