Description

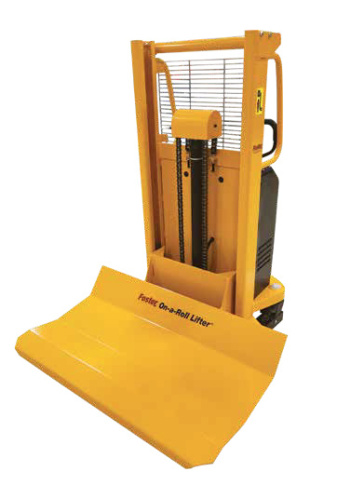

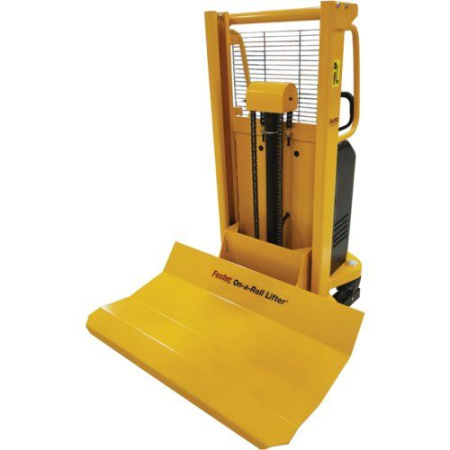

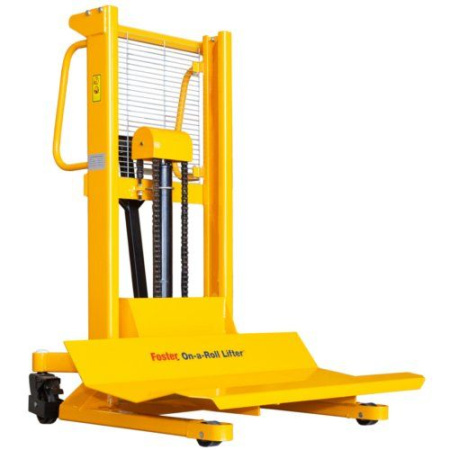

Foster On-A-Roll Lifter Power Low Profile Grande Max (42 Inch Lift Height) - 61548

This Foster On-A-Roll Lifter Power Low Profile Grande Max is a workhorse lifter that can manage to handle very heavy media as heavy as 2,200 lbs (1000 kg). It is designed to handle heavy rolls that require lower clearances. With a push of a lever the Power Low Profile Grande Max easily lifts and lowers media rolls. Its specially designed tray accommodates rolls for easy loading and unloading, as well as transporting. The front caster wheels are fixed to allow the front to fit under tight areas. The simple hydraulic foot pump makes lifting effortless. Reduce on-the-job injuries from moving heavy media rolls with the help of Foster On-A-Roll Lifter Power Low Profile Grande Max.

Reduces on-the-job injuries and enables operators to safely move heavy rolls without damaging media.

With a powerful 12-volt DC motor, the On-a-Roll Lifter® Power Low Profile Grande Max allows one operator to easily lift and lower rolls as heavy as 1,000 kg (2,200 lbs) and as wide as 5 m (16 feet 5 inches) and with diameters as great as 80 cm (31.5 inches). This motorized lifter securely positions large and heavy rolls while providing a safe, effortless, and efficient solution for handling. 8 cm diameter fixed front casters provide lower clearance in the front forks allowing it to fit under most grand format printers.

Product Details

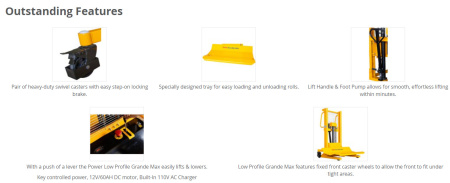

• Pair of heavy-duty rear swivel casters with easy step-on locking brake.

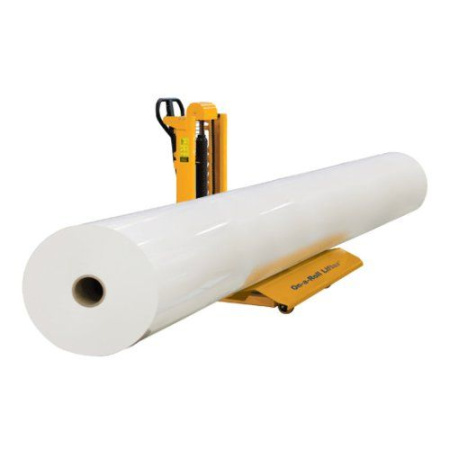

• Specially designed tray for easy loading and unloading rolls.
• Reduces on-the-job injuries and enables all workers to move heavy rolls.
• User-friendly operation avoids costly and dangerous handling mistakes that damage media.
• Rugged construction ensures long lifter life.
• Single-person operation saves labor and time.
• Foot pump allows for smooth, effortless lifting within minutes.
• 2-year Manufacturer's Warranty on hydraulics and media tray. 5-year Manufacturer's Warranty on cross bars.

SPECIFICATIONS

• Lifter: Power Low Profile Grande Max
• Roll Weight Capacity: 2,200 lbs (1000 kg)
• Min. Tray Height: 7.72 Inch (19.6 cm)
• Lift Height: 42.25 Inch (115 cm)
• Max. Roll Width: 16' 5 Inch (5 m)
• Max. Roll Diameter: 31.5 Inch (80 cm)

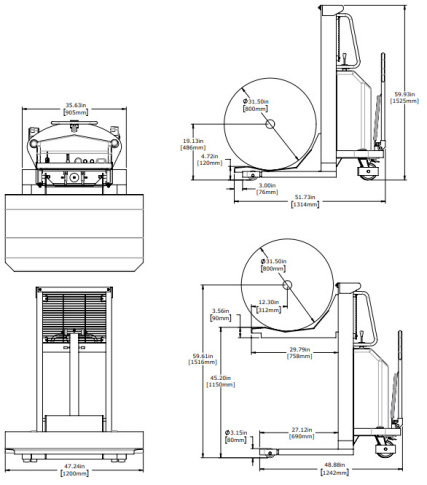

• Overall Lifter Dimensions (W x D x H): 47.24 x 45.2 x 59.1 Inch (120 x 114.8 x 150 cm)
• Media Lifter Weight: 600 lbs (272 kg)
• Bottom Fork Clearance: 3.15 Inch (8 cm)
• Front Casters: Fixed
• Rear Swivel Casters: 6 Inch (15.24 cm)

If you have any questions or concerns, contact a customer service representative today.
