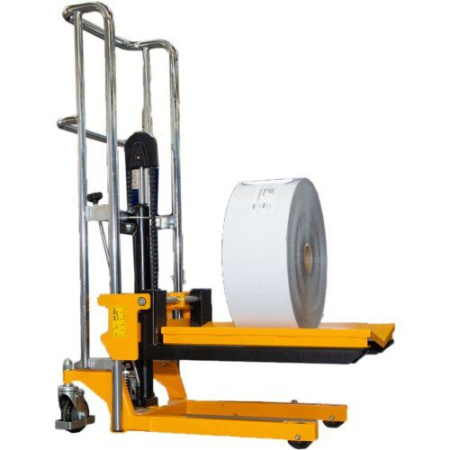

Foster On-A-Roll Lifter V-Tray Narrow Web (47 Inch Lift Height) - 61566

This Foster On-A-Roll Lifter V-Tray Narrow Web is a manually operated hydraulic lifter that provides a quick and safe solution for positioning and loading narrow web rolls. It is ideal for label printers and converters. It can easily lift rolls as heavy as 660 lbs. (300 kg) and diameters as great as 30" (76 cm). It increases safety and decreases the risk of handling damage to valuable roll media with minimal operator training. The V-Tray Narrow Web On-A-Roll Lifter can be used with these brands of flexo and digital narrow web presses and others: Bobst, Edale, Gallus, Mark Andy, MPS, Nilpeter, Omet, and RotaFlex.

Product Details

• Material damage is reduced or eliminated when moving rolls
• Reduced on-the-job injuries and enables workers to easily handle heavy rolls.
• Heavy material rolls are handled quickly and easily
• The cantilevered roll tray extends 6" over the front casters so it won't interfere with any obstructions on the press or floor.
• V-Tray cradle design secures rolls with varying diameters.
• 3-inch low-profile front casters and frame fit underneath your press or converting line.
• Manually operated hydraulic foot pump raises rolls to the optimal height with minimal effort.
• Two heavy-duty rear swivel casters for maneuvering through tight spaces.
• Rugged constructions ensure long lifter life.
• Single-person operation saves labor and time.
• 2-year Manufacturer's Warranty on hydraulics and media tray. 5-year Manufacturer's Warranty on cross bars.

SPECIFICATIONS

• Roll Weight Capacity: 660lbs (300kg)
• Lift Height: 47 Inch H (120cm)
• Max. Roll Width: 26 Inch (66cm)
• Max. Roll Diameter: 30 Inch (76cm)
• Overall Media Lifter Dimensions (W x D x H): 41 W x 23.25 D x 56 H Inch (104 x 59 x 142 cm)
• Media Lifter Weight: 205 lbs (93kg)
• Bottom Fork Clearance: 3.01 Inch (7.7cm)
• Rear Swivel Casters: 6 Inch (15.24 cm)

On-A-Roll Lifter Warranty: Compact, Compact-2, Scoop, KL, Power KL*, Low Profile Grande Max, Power Low Profile Grande Max*, Hi-Rise, Jumbo, Low Profile, Standard, Standard Plus, Universal, V-Tray Narrow Web, Power Jumbo*
The On-A-Roll® Lifter includes a 2-year warranty on hydraulics and the media tray and a 5-year warranty on the cross bars.
*Power operated lifters carry a one-year warranty under normal use for the Battery and Electric.
All Foster products are inspected before shipment and believed to be free from any defects in workmanship. Foster cannot be responsible for tools that show excessive wear or damage resulting from misuse, accidents or abuse.
These warranties do not cover any product that has been altered, modified or damaged, neglected, accidentally dropped or improperly used. If any of the previous occurs, the warranty shall be considered null and void.
