Description

Custom Pak Shreddy 400 STRIPS VS (24 hrs Non-Stop) Cardboard Shredders

Introducing SHREDDY, a full line of cardboard shredders that transform used or unusable cardboard into practical and effective packaging material. Each system includes a single or three-phase motor, a cutter of specific width, and a vacuum system for removing dust particles.

After cutting the cardboard, there are two options for the resulting material: cardboard strips, or cardboard elastic net. While both can be used for repacking boxes, the elastic net is a unique, user-friendly option that’s growing in popularity. Cardboard elastic net protects the content of outgoing freight with its flexible, cushioning structure.

The line of SHREDDY machines are industrial workhorses that customers can rely on. Each system – Series 299, 300, 400, 500 & 700 – varies by power, motor size, and cutting width. Options for producing cardboard strips and elastic nets are available for each series type. All units are set up for a Hepa extractor to collect dust during the shredding process.

FEATURES

• Oversized motor for maximum reliability.
• Special steel blades to last.
• Set up for Hepa extractor to collect dust.
• Tempered and resistant gears for heavy-duty work.
• Simple and practical use using a two-position switch: on/off.
• Monobloc bearing structure.
• High production speed.
• Bearings with high radial loads. Reinforced drive shaft and belt!
• Nozzle to easily grease the gears.
• Large handling wheels with parking brake.
• Blade inspection window.
• The blades are easy to clean thanks to the door with a safety device.
• Industrial powder coating.
• Blades and gears have anti-wear treatment.
• Conforms to current regulations.

The SHREDDY transforms used or unusable cardboard into practical and effective packaging material without wasting time or money!

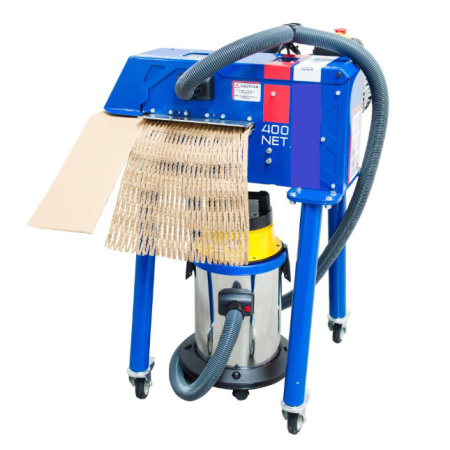

> NET version converts the cardboard into a shock absorbing and flexible netting the best solution to replace plastic packing peanuts, bubble wrap, and packaging air bags.

> CHIP version is a special cardboard converter to replace plastic peanuts and polystyrene chips, the best way to pack delicate items.

> STRIP version shreds your cardboard waste into (long) strips, the best way for special packaging applications, like for medical products are also ideal, to replace the straw for animal bedding.

• 2HP SINGLE-PHASE or 3HP THREE-PHASE
• VARIABLE SPEED
• 6,5M3/h CUTTING CAPACITY
• Side opening with the automatic cutting of the excess cardboard
• HEPA vacuum (optional)
• Thermo-hardened steel blades
• Blades inspection window
• Door for blade cleaning
• Shreds CD / Floppy / Credit Cards/cardboard with staples
• Switch on/off/reverse
• Emergency safety stop
• Roller bearings, reinforced haft
• 100% Made in Italy

SHREDDY 400 STRIPS VS TECHNICAL DATA

• Model: 400 STRIPS VS
• Cutter Feed width: 430 mm
• Cutter Feed height: 16 mm
• Cutting Capacity: 5,5-6,5 M³/h per hour of not pre-processed material
• Continuous Run Time: 24 hr no stop
• Motor: 2HP 1phase
• Voltage Cycle (V / Hz): 220-240 50-60Hz
• Amp: 10
• Noise Level db/(A): 40
• Dimensions (without legs kit) LxHxW: 85 x 50 x 50 cm
• Dimensions (with legs kit) LxHxW: 85 x 105 x 50 cm
• Weight: 125 Kg
• Open Inlet : Yes
• HEPA vacuum (optional): Yes
• Thermo-hardened steel Blade: Yes
• Roller bearings, reinforced haft: Yes
• Legs kit: Optional (net and strips)
• Wheels with brakes: Optional (net and strips)
• Blades inspection window: Yes
• Periodic Lubrication of Blade: Yes
• Kit “Net” Mode available: Yes
• Kit “Strips” Mode available: Yes
• Kit “Chips” Mode available: Yes
• Shreds CD: Yes
• Shreds floppy: Yes
• Shreds Credit Cards: Yes
• Shreds cardboard with staples: Yes
• Switch on/off/reverse: Yes
• Emergency safety stop: Yes
• 12 months warranty: Yes
