Conveyor | AS40-Z: Angled Frame Conveyors

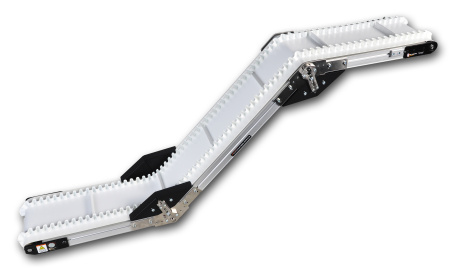

Angled Frame AS40-Z conveyors elevate and lower product. They are especially useful for elevating product from machinery with a low discharge or into a bin or hopper. Automation Series conveyors are designed with you in mind, with a wide array of options to cutomize them for any application from robotic assembly and automotive to pharmaceutical and packaged foods.

FEATURES

End drive unit on LH side at discharge end

18” Horizontal

54” Incline

18” Horizontal

30 Degree Incline

Variable speed with 3-128 FPM speed range

115V 1 PH input

18” wide white urethane v-guide belt w/ 20mm high cleats 0n 12” ctrs & corrugated side wall

Flip up tail pulley

Adjustable supports for 12” Infeed & 38” discharge elev

THREE CONFIGURATIONS

L, R and Z angle configurations are available standard with 30º, 45º and 60º angles. The lengths of each section are fully customizable to fit your application.

Z-TRACK DESIGN

Z-Track Design simplifies belt tracking with control at the angles of incline or decline. Z-Track adjusts quickly and locks the tracking setting in place to ensure long-term performance and is well-guarded to avoid dangerous pinch points.

RIGID ALUMINUM FRAME

AS40-Z frames are designed to maintain alignment and prolong belt and bearing life. Frames 12” wide and under feature a sturdy single-piece box construction, while frames 18” and wider feature a rigid aluminum/steel frame.

TENSION RELEASE TAILS

Tension Release tails flip up at the push of a button, releasing tension on the belt to allow the operator to clean under the belt in the event of spills. Tracking and tension settings are maintained when the tail is snapped back into place.

CROWNED PULLEYS

AS40-Z conveyors use crowned pulleys to take advantage of the natural tendency of belts to run centered on the longest part of the conveyor. V-guide belts are available for applications that require side-entering or -exiting.

SPECIFICATIONS

• Widths: 8, 10, 12, 18, 21 and 24 INCH
• Lengths: Up to 20 Inch
• Loads: Up to 120 lbs
• Speeds: Up to 400 FPM
• Profile: 1.95 Inch
• Fasteners: Metric
• Angles: 30º, 45º, 60º

Demo Video

If you have any questions or concerns, contact a customer service representative today.
