Intimus | TSI-5S SPECIAL HCDF Mail Processor (A0147160)

The intimus TSI-5s Folder-inserter combines unparalleled ease of use with advanced technology.

The versatile intimus TSI-5s can be customized to meet the demands of your office to maximize productivity. Featuring Contact Image Sensor (CIS) scanner technology, the intimus TSI-5s can read any type of coding.

• Convenient, versatile, and easy-to-use mail folder-inserter
• Processes up to 3.800 documents per hour
• CIS scanning technology can read a variety of barcodes and other coding
• Supports a variety of feeder configurations to accommodate your specific office processes

With its compact footprint, large loading and unloading capabilities, and features like CIS scanning technology, the intimus TSI-5s can process a wide variety of mail for direct marketing campaigns, invoicing, monthly statements and many other applications. Easy to use via its full-color touchscreen and unique intuitive navigation, the extraordinarily quiet intimus TSI-5s fits perfectly into any work environment.

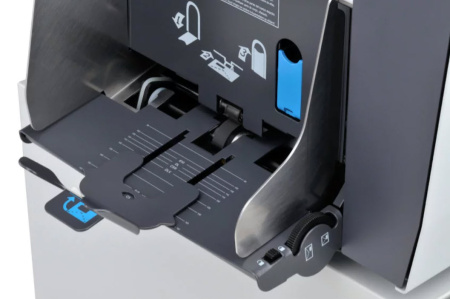

The exclusive FlexFeed® trays enables you to process any document size or type. In combination with the unique semi-automatic envelope separation mechanism, this provides full flexibility for feeding a wide variety of document types. You can use practically any size and type of material to address your prospective and current customers efficiently. Load the MaxiFeeder with up to 325 business reply envelopes or 1.200 sheets to maximize your productivity.

The intimus TSI-5s daily mail feature allows manual feeding of multiple pages to be folded and inserted at a time, mainly used when no reading is at hand. This is a perfect fit for low volume multiple sheet applications. The intimus TSI-5s is equiped with a shelf as a convenient storage place for documents.

The intimus TSI-5s can read a variety of codes, including OMR, BCR 1D, 2D data matrix, QR codes, and can be printed anywhere on the document. This unique feature provides full flexibility to fulfill any layout requirement.

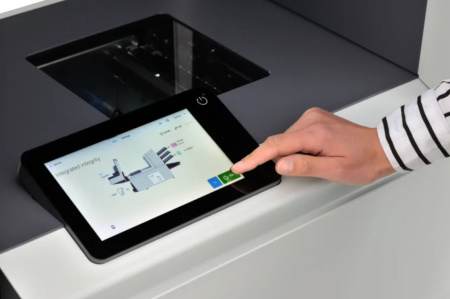

Designed for all users, the intuitive, full-color, high-resolution 7? touchscreen provides a wizard-based user-friendly interface, making it easy for anyone to select and run their folding and inserting jobs. Alternatively, see how easy it is to create a new job using the exclusive load’n’Go intuitive procedure. Simply load your documents and envelopes and then press the start button. The intimus TSI-5s will automatically measure the length of all loaded documents as well as the envelope in order to adjust all settings and process the appropriate mail items.

SPECIFICATIONS

• Product Type: Low-medium volume
• User interface: 7" Colour touchscreen
• Speed: Up to 3.800 inserts/hr.
• Document feeder capacity: 325 sheets (80 g/m²)
• High capacity feeder capacity: 725 sheets (80 g/m²)
• Envelope feeder capacity: 325
• Folding capacity (C / V): 8 doc. in C / 10 doc. in V (80 g/m²)
• Fold types: C / Z / V / double parallel / no fold
• Job Memory: 50
• Optional Envelope Exits: Catch tray / side exit / HCVS (High Capacity Vertical Stacker)
• Document height: 90 mm – 356 mm
• Document width: 130 mm – 230 mm
• Document weight: 60 g/m² – 250 g/m² (170 g/m² when folded)
• Maximum insert thickness: 1 mm
• Maximum set thickness: 2.5 mm
• Noise level: <66 dBA
• System dimensions (L x D x H): 1270 x 720 x 500 mm (including catch tray)
• System weight: 79 kg
