Foster FOS-61539 - Power Dye Sub On-A-Roll Lifter

A NEW Solution to Dye Sublimation Material Handling

The Power Dye Sub On-A-Roll® Lifter & Spindle Trolley are essential tools for streamlining the handling of freshly printed rolls of fabric and transfer paper in the dye sublimation printing process. The system eliminates the need for multiple personnel, as one individual can operate it.

Foster’s motorized Lifter and Spindle Trolley work in tandem to prevent ink bleeds and smearing, which can result from pressure or contact during handling. The retractable telescoping arms hold the roll spindles securely, ensuring no direct contact with the printed material.

Safety latches on the trolley hooks prevent accidental dislodging of the spindle and media roll during transportation. Additionally, a foam pad lines the media pocket, providing a protective cushion to prevent dents or impressions from hard surfaces that could lead to ink bleed.

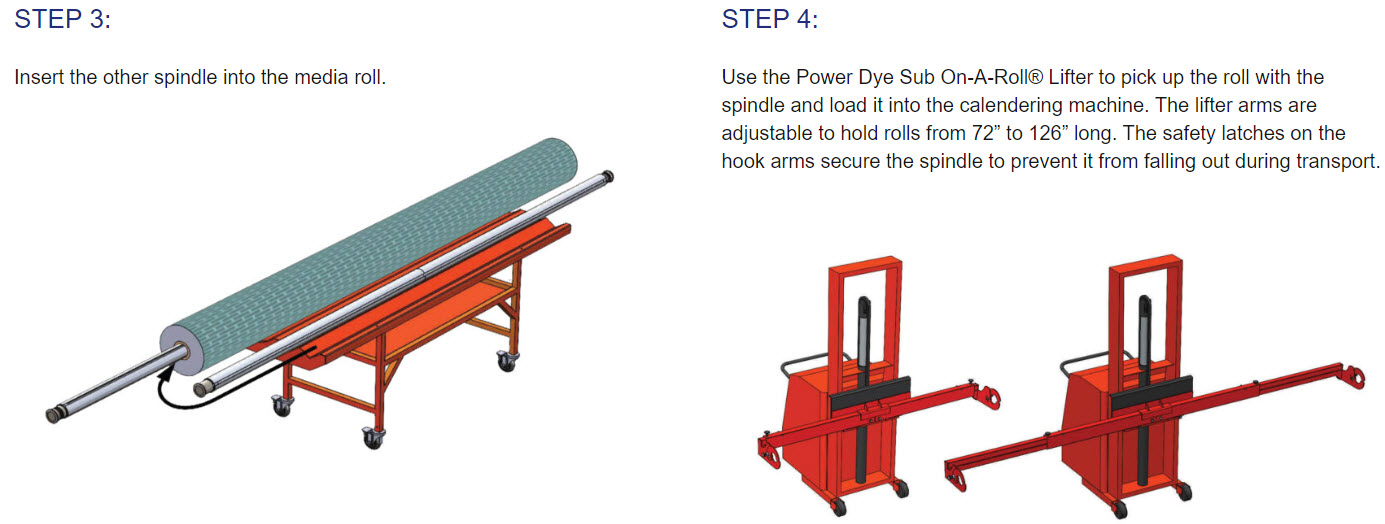

There are 4 simple steps for using Foster’s Dye Sub On-A-Roll® Lifter and Trolley from print to finish:



Foster’s Dye Sub On-A-Roll® Lifter’s counterweight design has a low clearance of 1” with no front fork extensions to interfere with loading rolls into the calendaring machine. It provides

FEATURES

• Lifting speed: 5” per second
• Arms adjust from 72” W to 126” W
• Heavy-duty C100 foot operated floor lock
• Heavy-duty 12V battery
• 3 positions “Comfort Cushion” push handle

SPECIFICATIONS

• Load Capacity: 600 lbs.
• Load Center: 13”
• Raised Height: 62”
• Load Height: 5”

Dimensions

• Without Arms: 80”H x 27” W x 50 3/4” L
• With Arms retracted: 80”H x 78” W x 36” L
• With Arms extended: 80”H x 134 ½” W x 36” L

Two fixed front casters, 2 rear swivel casters

• Wheel Diameter: 5” x 5”
• Shipping Weight:1200 lbs.
• 600 lb. counterweight ballasts included

Warranty

• 2-Year Warranty on mechanical parts
• 5-year Warranty on cross bars and frame
• 90-day Warranty on battery, charger, and electronics
