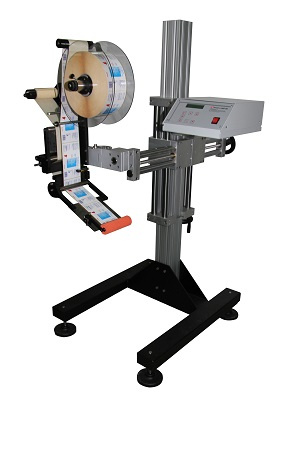

Labeling Machines | Automatic Label Applicator GIOVE–140

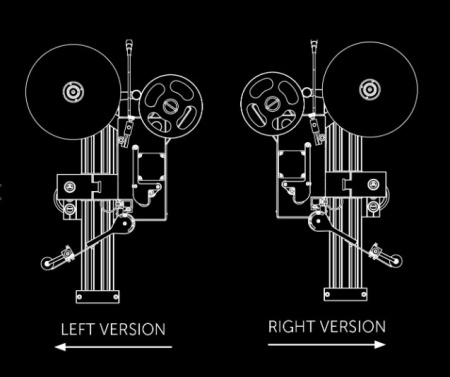

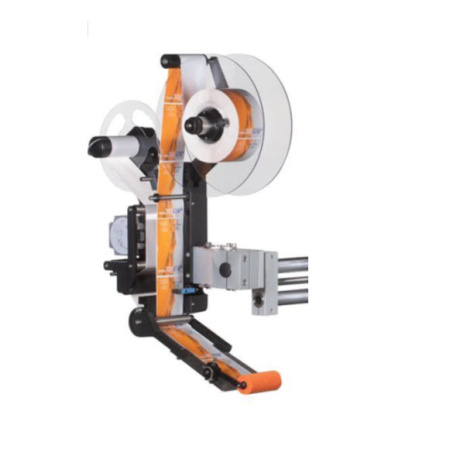

The GIOVE-140 is an applicator of self-adhesive labels to match up and align with production lines. It is ideal for mounting on flat or slightly irregular surfaces. The Labeling Heads TRITO and GIOVE can be used for applications above or to the side. The main feature of the model is simplicity in installation and use. The head is available left and right (on all units).So, you can do left-handed (workflow right to left) and right-handed (workflow from left to right) labeling.

OPTIONAL

Hot stamping / dry for printing date and batch

Encoder with 1000 pulses encoder unit

Control unit for speed 60mt/min

Optical/acoustic end of the roll paper tear

Preend of label

Full column

Caster

Ultrasonic Label sensor for clear label

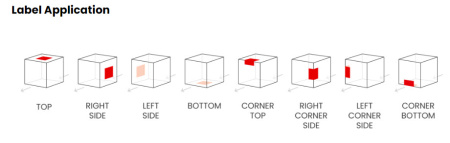

Application on the side (right and left)

All adjustment by plc Mitsubishi touch screen: 9 Inch

Multi-color screen

Multilanguage interface: Italian, Spanish, English to 10

Adjustable coating idle roller made of foam rubber for a correct pressure between label and product.

Electronic display for parameters Supply voltage:120 v 50/60 hz (other voltages on demand).

Motors – Brushed

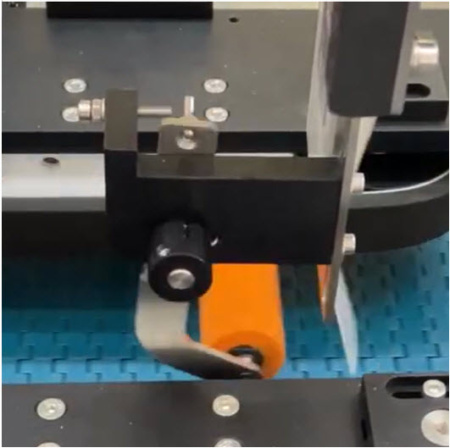

Spring loaded foam roller to apply label to side and top

Adjustable

SPECIFICATIONS

• Speed - variable from 0-30m (0 - 1181 Inch)
• Maximum label width - 140 mm (5.51 Inch)
• Width min - 10 mm (0.39 Inch)
• Label Length - 500 mm (19.70 Inch) (other sizes on request)
• Length min - 10 mm (0 .39 Inch)
• Outside diameter of the reel - 12” OD (305 mm)
• Re-winder backing paper motorized. -
• Inner diameter min. - coil – 38 mm. (1.50 Inch) (76 with adapter)
• Labels roll diameter - 300 mm (12 Inch)
• Automatic self-adhesive label applicator - Yes
• Engine type - step / step
• Electronic control unit - controlled by a microprocessor with display, ability to handle speed of delivery, delay start, pre-label distribution, a counting
• The footprint is approximately 32 x 30 Inches, (813 x 762 mm) and the height can go up to approximately 67 Inches (1701.8mm)
• The label accuracy is typically 1/32", but this is based on the product's handling before being labeled. If the product is not secured before the label applicator, the accuracy could be different.
• The warranty of the equipment is 12 months.
• Aluminum Frame
• Labeling speeds are always dependent on the size of the product, the gap between the products, and the size of the labels.
• If you look at the video attached, the system is applying a label that is larger than the 4.75" and the 4.50" and labeling over 60 products per minute.
• Start Photocell - Yes
• Read labels - by photocell
• Memory - 50 programs
• Power supply - 200 0 110 V / 60 Hz
• Shipping Dimensions - 47 x 36 x 37 Inch (1194 x 915 x 940 mm)
• Weight - 82 kg (180 lbs.)

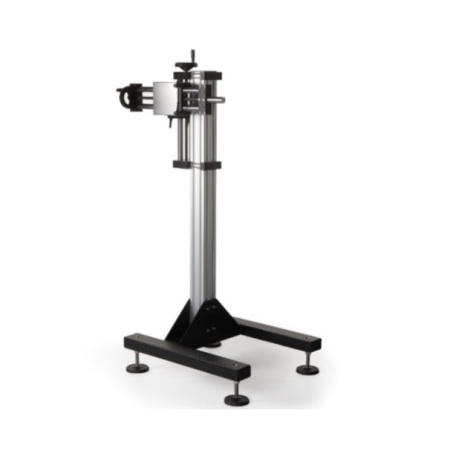

COLUMN WITH STAND

• Column with vertical and horizontal adjustment for labeling head position
• Joint for connect labelling head on the column
• Base in iron paint with 4 feet with regulation
• Arm for control box
• Additional support for high-level application

DEMO VIDEO
