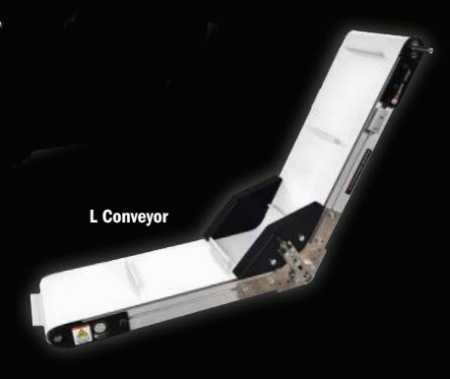

QC Conveyor | AS40-L: Angled Frame Conveyors Inclined Aluminum Belt Conveyor 24 Inch wide

Angled Frame AS40-L conveyors elevate and lower the product. They are especially useful for elevating products from machinery with a low discharge or into a bin or hopper. Automation Series conveyors are designed with you in mind, with a wide array of options to customize them for any application from robotic assembly and automotive to pharmaceutical and packaged foods.

FEATURES

• Rigid aluminum frame with tee slots
• V-Guide Belts ensure proper tracking in any application
• Tension Release Tail tips up at the push of a button for a fast belt change and easy access to the frame to clean or clear debris
• Sealed, double-row ball bearings for higher loads and longer life
• L-Track design gives you greater control over belt tracking and longer belt life

THREE CONFIGURATIONS

L, R, and Z angle configurations are available standard with 30º, 45º and 60º angles. The lengths of each section are fully customizable to fit your application.

L-TRACK DESIGN

L-Track Design simplifies belt tracking with control at the angles of incline or decline. L-Track adjusts quickly and locks the tracking set in place to ensure long-term performance and is well-guarded to avoid dangerous pinch points.

RIGID ALUMINUM FRAME

AS40-Z frames are designed to maintain alignment and prolong belt and bearing life. Frames 12” wide and under feature a sturdy single-piece box construction, while frames 18” and wider feature a rigid aluminum/steel frame.

TENSION RELEASE TAILS

Tension Release tails flip up at the push of a button, releasing tension on the belt to allow the operator to clean under the belt in the event of spills. Tracking and tension settings are maintained when the tail is snapped back into place.

CROWNED PULLEYS

AS40-Z conveyors use crowned pulleys to take advantage of the natural tendency of belts to run centered on the longest part of the conveyor. V-guide belts are available for applications that require side-entering or -exiting.

SPECIFICATIONS

• 18 Inch Horizontal Section
• 24 Inch Incline
• 45 Degree Angle
• 24 Inch Wide V-Guide White Urethane Belt with 40 mm high Cleats on 12.1 Inch Centers
• 110 V input Variable speed
• 120 FPM Max Speed
• Flip up tail pulley
• Profile: 1.95" high
• Load: up to 120 lbs
• Speeds: up to 200 FPM
• Adjustable supports for 21 Inch – 24 Inch Infeed & 33 Inch - 36 Inch Discharge elevation
