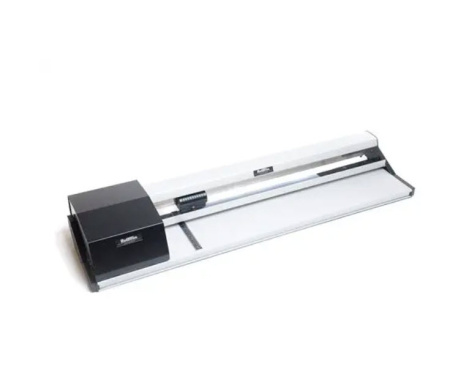

Rotatrim 61” (1549.4 mm) Rotatrim High Speed PowerTech Trimmer - ROT-60425

Description

The cutting head on the PowerTech series of cutters is motor-driven by a steel-reinforced belt, via a foot-operated pneumatic switch, leaving both hands free for speedy repositioning. This top-of-the-line solid metal cutter combines the lightness of touch with industrial strength cutting power. Slice without effort through almost any flexible sheet material up to 4mm thick. These cutters are equally at home with thin films and foils due to the unique self-adjusting triple roller cutting head. Chromed 1-1/2” square steel guide rail and all metal construction eliminates distortion. Self-sharpening Sheffield tungsten steel cutting wheel and counterblade. Two-way cutting option by removing the cover plate. Transparent clamp strip and rubber gripper for firm, positive clamping action. A 10 1/2” rule and a squaring arm are installed onto an all-metal base. Extruded aluminum satin finish baseboard with parallel indents is strong and warp-free. Each PowerTech is supplied

The PowerTech is a powered version of the Technical, operated by a foot pedal. Heavy-volume, large-format shops will see a quick return on investment through reduced manpower and increased productivity.

The PowerTech frees both hands and decreases operator fatigue.

The trimmer is electrically driven through a steel-reinforced belt for longevity.

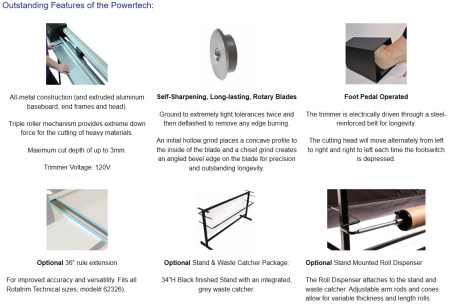

All-metal construction (and extruded aluminum baseboard, end frames, and head) ensures robustness.

An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.

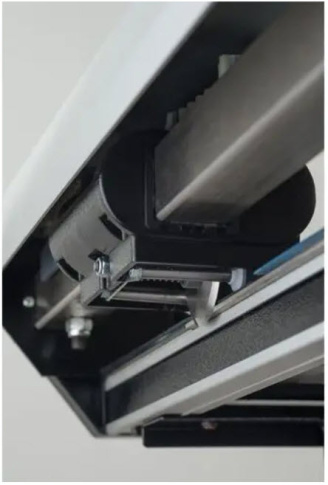

A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 3mm).

If you’re looking for an “all day, every day-use” extremely heavy-duty rotary trimmer that is capable of cutting the widest array of substrates and materials, from flexible to semi-rigid, this large-format powered trimmer (up to 100?) is the answer. The PowerTech’s normal speed variant cuts at 0.5M/sec and is better for trimming heavier materials.

Optional Stand & Waste Catcher Package

This convenient quality steel stand that supports the Rotatrim PowerTech Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off-cuts.

Helpful Hints

The two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.

Perfect for Cutting Up to 3mm:

• Aluminum (.5mm)
• Banners
• Canvas
• Card
• Cellophane
• Cibachrome
• Cork
• Digital prints
• Encapsulations
• Engraving lam (1mm)
• Flexographic plates (.067 inch)
• Floor graphics
• Foamex (1mm)
• Foil
• Inkjet paper
• Laminations
• Leather
• Lithoplate
• Magnetic Vinyl
• Masonite (2mm)
• MDF (2mm)
• Mount board
• Photo Paper
• Photo Film
• Polyester
• Polystyrene
• Posters
• Self-adhesive film
• Tissue paper
• Veneers

FEATURES

• Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
• Triple roller mechanism
• ISO9001:2008 quality certified
• Powered trimmer operated by a foot pedal
• 1 year general warranty under normal use (excluding cutting wheels, motors and clamping strips)
• 100% made in England

SPECIFICATIONS

• Max Cutting Thickness: 0.11 Inch / 3 mm
• Max Cutting Length: Cuts Size 61 Inch / 1549.4 mm
• Dimensions (L x W x H):90.5 W x 13 1/2 D x 7 H Inch

Warranty

All Rotatrim products have a one-year warranty except:

• Rotatrim cutting wheels
• Casters for lifters
• Electrics and batteries
