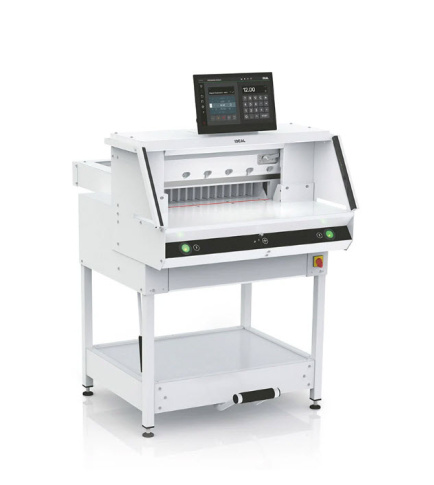

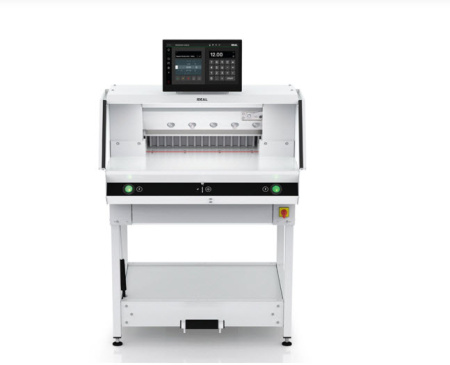

MBM Triumph Speedcut 68 LT1 26 7/9 Inch Auto Programmable Hydraulic Paper Cutter with Air Tables Package - CU0471P

The Triumph Speedcut 68 is a next-generation, programmable, hydraulically powered paper cutter that enhances efficiency and productivity with its advanced features. The 15.6” multi-touch display offers intuitive software with easy touch and swipe operation, providing a clear main screen and intelligently split display. The tilt-adjustable display can be customized to suit body height and lighting conditions. Precision is ensured with the manual fine adjustment of the backgauge, operated via an ergonomic control element. Safe, two-hand operation is achieved with EASY-TOUCH cut-activating buttons and integrated optical signals. The mechanical foot clamp features ergonomic, patented pre-clamping and cutting line indication functionality, offering ultimate convenience and precision.

PLEASE CALL FOR A SHIPPING QUOTE.

Due to the size and weight of a Cutter and the unique delivery circumstances involved, each shipment and delivery is custom. To make entering your order for a Cutter easier, we show FREE Shipping on the site and in the Shopping Cart. After you submit your order, we'll contact you for information to calculate a precise shipping cost. We set up our Shopping Cart to gather information; you are NOT charged when you go through it. Just to let you know, we will not charge you for the Cutter or Shipping without your agreement.

This MBM Triumph Speedcut 68 Package Includes:

• MBM Triumph Speedcut 68 Cutter
• Side tables (CU0496)
• Cutting knife (AC0655)
• Cutting sticks (AC0673)

Features

• Electric Paper Cutter
• Cutting Width: 26.77 Inch
• Cutting Height: 3.15 Inch / 3 Inch *
• Length Behind Blade: 26.77 Inch
• Narrow Cut: <0.6 Inch / 2.3 Inch
• Clamp Type: Adjustable hydraulic

Product Details

• Item #: CU0499
• Blade Material: German steel
• Horsepower: 2
• Electrical Requirements: 120 V. 60 Hz– 20 amp dedicated line required
• Dimensions (D x W x H): 52.40 x 43.26 x 59.96 INCH
• Shipping Weight: 770 lbs.

Safety Features

• Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation

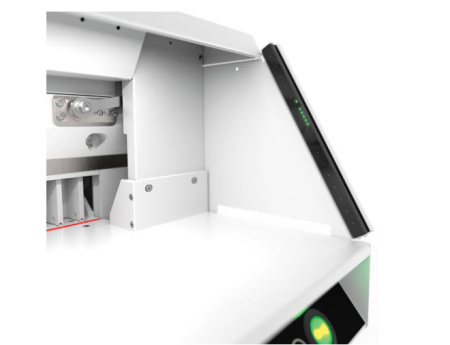

• R Light Beam Safety Curtain covers the work area to ensure the highest level of operator safety
• Safety cover on rear table
• Main switch and safety code lock

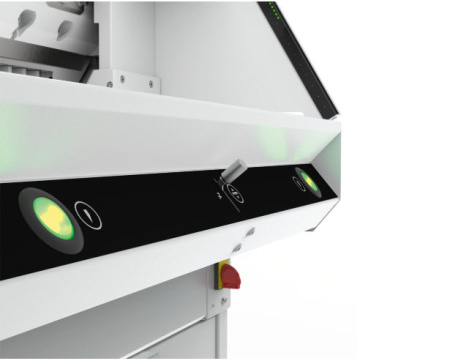

• True two-hand blade activation via EASY-TOUCH buttons
• Easy blade and cutting stick change
• Knife changing device with covered cutting edge
• Pin controlled, electronic code lock to secure the machine
• Knife depth adjustment from the outside

Characteristics

• Electro-mechanical precision blade drive and hydraulic clamp drive (patent pending)
• Programmable and manual backgauge positioning with optimum operator ergonomics and logic
• Adjustable back gauge with narrow separations and plastic gliders
• The precision back gauge spindle guarantees exact cuts. ­
• Clamp bar with infinitely programmable adjustment
• Electronically controlled false clamp plate, ideal for delicate work
• Infinitely dimmable front table illumination LEDs
• Ergonomic control element for manual adjustment of the backgauge position
• Table height ergonomically adjustable from 37.4 Inch to 39.3 Inch
• Solid steel blade carrier with blade guide system (patent pending)
• Accessible blade depth adjustment on the front of the machine (patent pending)
• Integrated tool storage

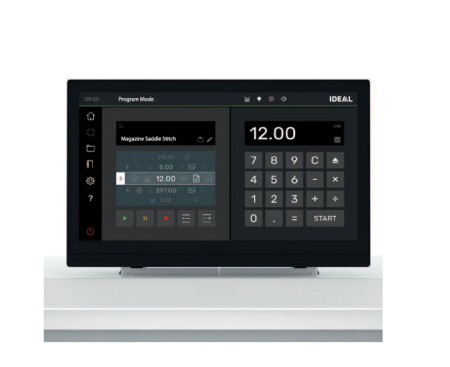

User Interface

• Clear graphical user interface with intelligently divided display
• Main functions directly accessible via self-explanatory icons
• Intuitive creation of cutting programs with user guidance and programmable clamp pressure

Speedcut Integrated Software

• Elevating cutting program automation to new heights.
• Speedcut enhances production efficiency with cutting-edge mark recognition technology, removing the need for manual programming.
• Automatically generates cutting programs for the TRIUMPH Speedcut 56, streamlining your workflow.
• Imposition transforms cutting productivity with seamless integration
• Features advanced cut mark recognition for precision and speed.
• Operates independently of templates or specific file formats.
• Achieve expert-level cutting results effortlessly, saving you both time and money.

Warranty

• 1-year limited warranty, excluding wearables
