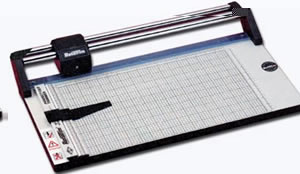

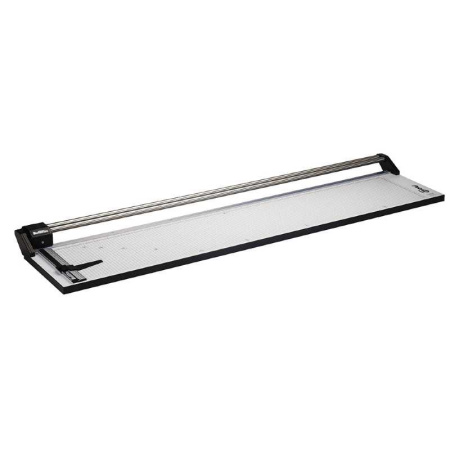

Rotatrim 54” (1371.6 mm) Professional (Pro) Series Rotary Trimmer - ROT-60170 (OLD PART# M54T)

Description

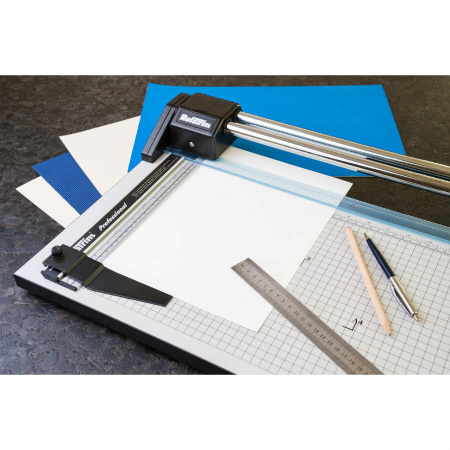

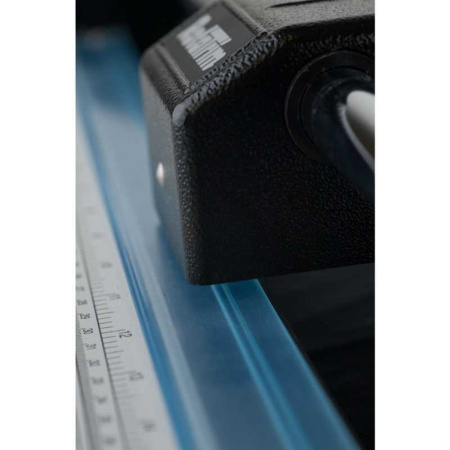

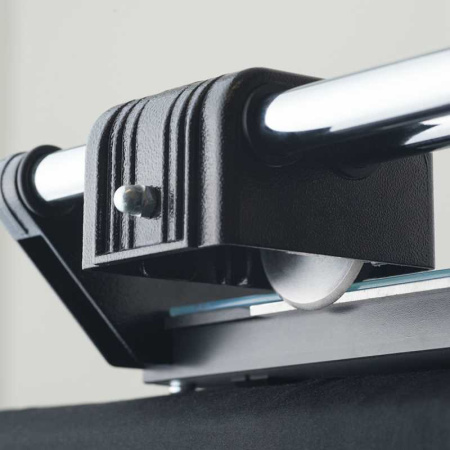

Unique twin-guide rail design and nylon bearings ensure silent, resistance-free, and accurate cutting. Versatile and affordable, the Professional Rotatrim is used extensively for cutting 12" to 54" film, laminated materials, and digital media output from image setters and plotters. Ergonomic die-cast steel housing over the cutting wheel is operator safe. Cutting wheel self-sharps the Sheffield tungsten steel cutting blade on the return pass, ensuring smooth, clean cuts every time. Maximum cut depth varies depending on the model.

Steel end castings are mounted to a high-density laminated particleboard with screen printed grid in inches and metric.12" rule supplied with adjustable squaring arm. Free spare clear plastic clamp strip with each Professional Rotatrim.

Originally designed with the photographer in mind, the heavy-duty use Pro Series has proven its durability and worth as an “all day, every day use” trimmer in a variety of industries. Aside from the materials listed below, the Pro Series has been used to cut offset printing plates, packaging materials, polyethylene, and even mount board, as well as for office finishing projects.

From mount board down to tissue paper, the Pro Series accurately cuts all these substrates without a single adjustment to the machine.

The Rotatrim Pro Series is perfect for heavy-use cutting and trimming of flexible materials:

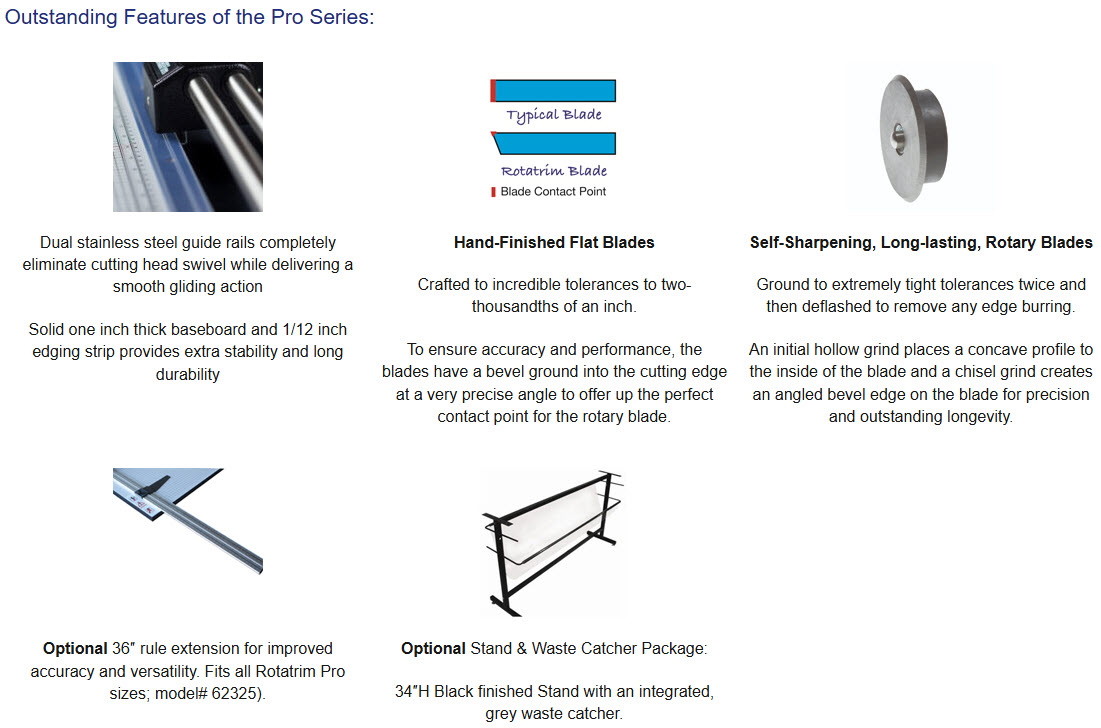

• Solid one inch thick baseboard and 1/12 inch edging strip provides extra stability and long durability

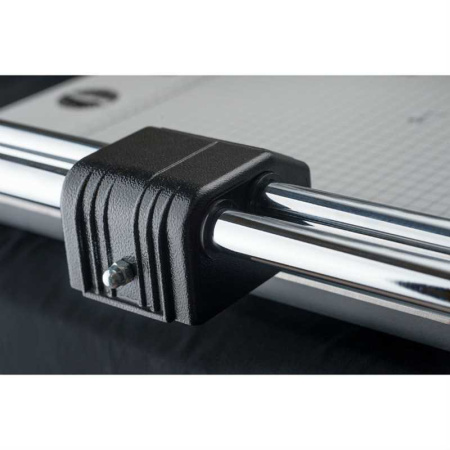

• Dual stainless steel guide rails eliminate cutting head swivel while delivering a smooth gliding action
• Self-sharpening, absolute precision steel blades
• All-metal end frames and head, and an aluminum square side rule
• 12”, 15”, 18”, 20”, 24”, 30”: up to 3mm cut capacity
• 36”: up to 2mm cut capacity
• 42”, 54”: up to 1.5mm cut capacity

Optional Stand & Waste Catcher Package

This convenient quality steel stand that supports the Rotatrim Pro Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.

Helpful Hints

Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.

Product Details

• Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate

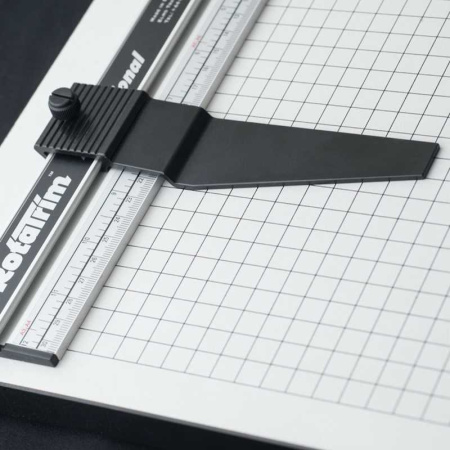

• 12 Inch rule supplied with adjustable squaring arm
• ISO9001:2008 quality certified
• 5-year general warranty on all parts
• 100% made in England

Perfect for Cutting Up to 3mm:

• Canvas
• Cellophane
• Cibachrome
• Cork
• Corrugated card
• Digital prints
• Encapsulations
• Felt
• Flexographic plates (.067")
• Floor graphics
• Heatseal
• Inkjet paper
• Laminations
• Photo paper
• Photo film
• Polyester
• Polystyrene
• Posters
• Reflective film
• Self-adhesive film
• Tissue paper
• Transparencies
• Veneers
• Vinyl

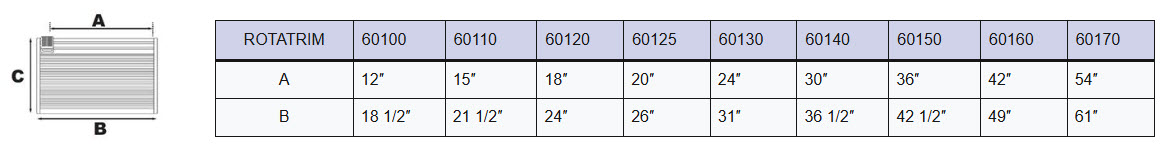

SPECIFICATIONS

• Max Cutting Thickness: 0.11 Inch / 3 mm
• Max Cutting Length: 54 Inch / 1371.6 mm
• Dimensions (L x W x H):61 W x 15-3/4 D x 6 H Inch

DEMO VIDEO (Rotatrim Pro36 Mastercut II Standard)

Warranty

All Rotatrim products have a one-year warranty except:

• Rotatrim cutting wheels
• Casters for lifters
• Electrics and batteries

If you have any questions or concerns, contact a customer service representative today.
