Description

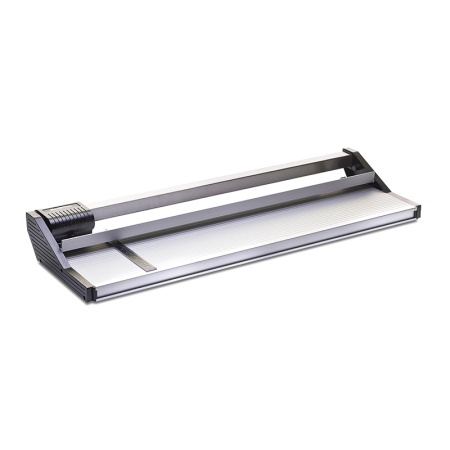

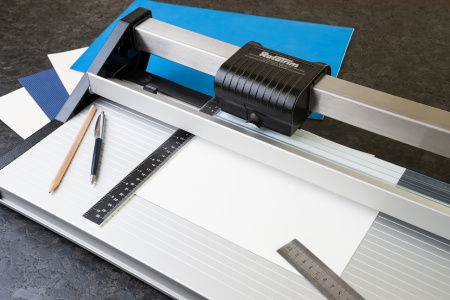

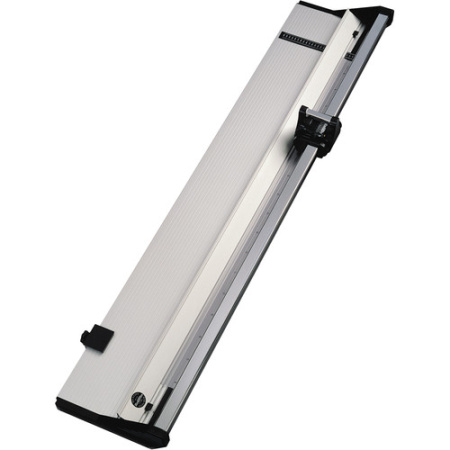

Rotatrim Technical Series Heavy Duty Rotary Trimmer 50 inch
The perfect tool for heavy-duty jobs with extra long, extra dense material to cut.
The Rotatrim Technical is identical in form to the DigiTech+ except that its design adds a triple roller mechanism to provide extreme down force for the cutting of heavy materials. It also features special Sheffield “tool†steel blades designed to offer enhanced durability under extreme operational loads. With high chromium content, these blades are exceptionally slow wearing, even when cutting the most abrasive materials.
The Technical series of cutters is the top of the line solid metal cutter that combines the lightness of touch with industrial strength cutting power. The 7 models in the Technical series will each slice effortlessly through almost any flexible sheet material up to 4mm thick. These versatile cutters are equally at home with thin films and foils due to the unique self-adjusting triple roller cutting head.
The Rotatrim Technical Series Cutter is perfect for display/exhibition applications, finishing of all digital media and fast accurate dead straight trimming of pop-ups, encapsulated posters, vinyls and banners.

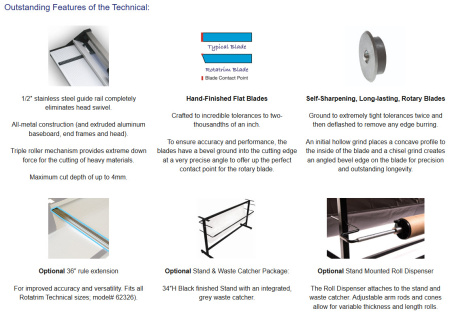

FEATURES:
Chromed 1-1/2" square steel guide rail and all metal construction eliminates distortion and head swivel..

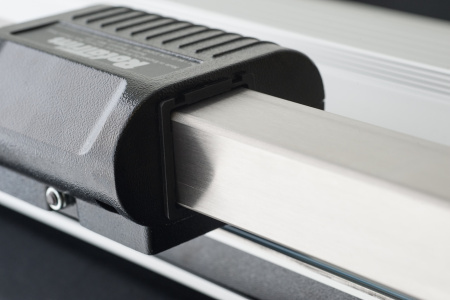

A strong 1 ½†stainless steel guide rail completely eliminates head swivel.

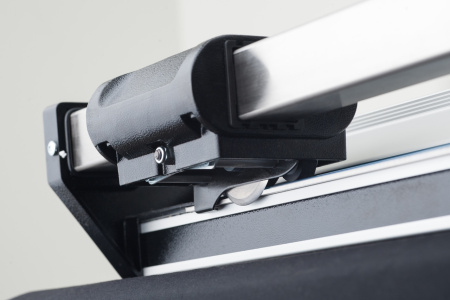

A triple roller mechanism for extremely heavy-duty cutting (maximum cut depth of up to 4mm).
Extruded satin finish aluminum baseboard with parallet indents,(strong and warp free), end frames and head- plus an aluminum square side rule- ensures extreme robustness.
An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
• Extremely heavy-duty use.
Self-sharpening Sheffield tungsten steel cutting wheel and counterblade.
Two way cutting option by removing cover plate.
Transparent clamp strip and rubber gripper for firm positive clamping action.
A 10-1/2" rule and squaring arm is factory installed onto an all-metal base.

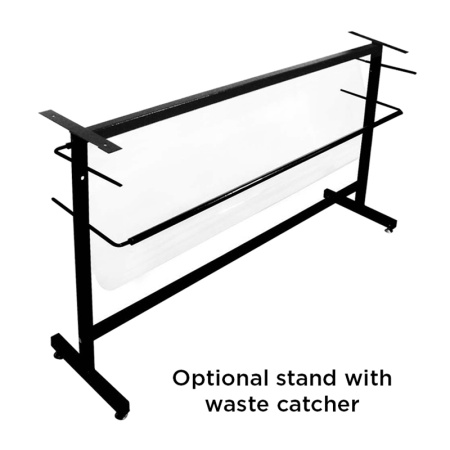

An optional steel stand offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.
Powertech high speed version available.
Comprehensive range of accessories.
Longer machines (61 in. and up) now supplied with unique extension rods which effectively double the baseboard depth perfect for pop-ups.
Full range of accessories available.(see below)
Support Stand
Waste Catcher
Pro Series Package (Cutter, Support Stand and Waste Catcher)
Bench Stop
Adjustable Cursor
Base Extension
24 inch Rule Extension
36 inch Rule Extension
TBXS Base Extension Stand
Roll Dispenser
TH Handle
WC Work Clamp
Please Call for Pricing on all accesories
Please Note:
Foamboard and Foamex cannot be cut by this machine.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: |
60320 |
