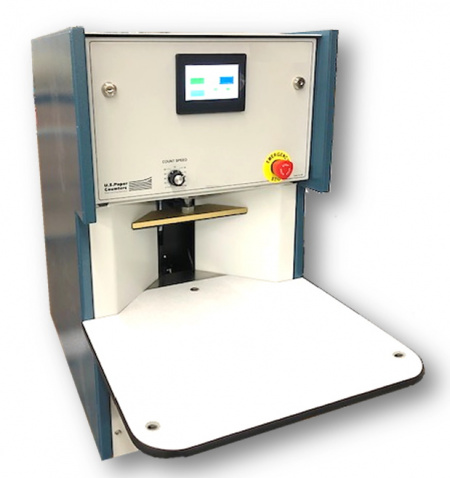

U.S. Paper Counters MAX-BANTAM Paper Counting Machine and Batch Tabber

THE U.S. PAPER COUNTERS MAX-BANTAM MB HAS BEEN DISCONTINUED AS OF 07/01/2023, HOWEVER, WE STILL SELL THE ACCESSORIES AND REPLACEMENT PARTS FOR IT.

U.S. Paper Counters MAX-BANTAM Paper Counting Machine and Batch Tabber is your Cost-Effective Answer to improve Quantity Control, verify quantities delivered to customers, and double-check incoming stock deliveries.

Fast, accurate counting and tabbing with speeds up to 2000 sheets per minute gives you the quantity control you need to maximize efficiency and profit. This Sheet Counter and Sheet Tabber will improve productivity and bring down production costs! The Max Bantam can also be used to count empty envelopes with thicknesses ranging from Onion Skin to 1/10 inch with the optional Coupon Tray and 73 Blade. The Bantam features an alignment register of 2-1/2 inches to set up your paper before the paper engages with the Counting Blade. The Counting Blade goes into the stack being counted 3/4 of an inch from the edge.

This Paper Counter and Sheet Counter / Tabber is designed for companies whose priority is cost justification, the Max-Bantam Paper Counter and Sheet Counter can count up to 2000 sheets per minute with absolute accuracy while inserting tabs in batches from 5 to 9999. The Max-Bantam's solid state controls with 6-digit Batch Counter and Totalizer, Low Tape Warning Indicator, large LED display, 15" x 18" counting table and one-button initiation make it the affordable solution to all your counting needs.
The Max-Bantam gives you fast and accurate counting and tabbing, lets you virtually eliminate miscounts and allows quantity control at every stage of your operation, which leads to better overall customer satisfaction.

Customers that currently benefit from U.S. Paper Counters Products include:

Check Printers, Paper Mills and Converters, Security Printers, Label and Paper Manufacturers, Business Form Printers, Pharmaceutical Companies, Pad Printers, Government Printers, Paper Merchants, General Printers, In-Plant Printers, Magazine and Book Publishers, Silk Screen Transfers, and Stationary Printers.

APPLICATIONS

Exact count deliveries

Provide competitive quotes

Eliminate re-runs & miscounts

Improve quantity control

Verify quantities of stock deliveries

Improve customer satisfaction

STANDARD FEATURES

Counting speeds up to 2000 CPM

Tab insertion from 5 to 9999 sheets

Easy Installation

Large electronic display (LED)

Color Touch screen

Low tape warning indicator

Minimal maintenance requirements

Six-digit Batch Counter and Totalizer

Readily available parts

Solid state electronics

15" x 18" Counting surface

Plug-in components

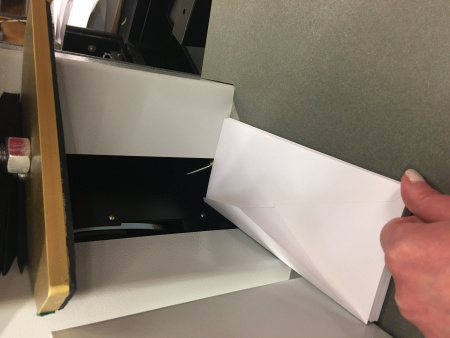

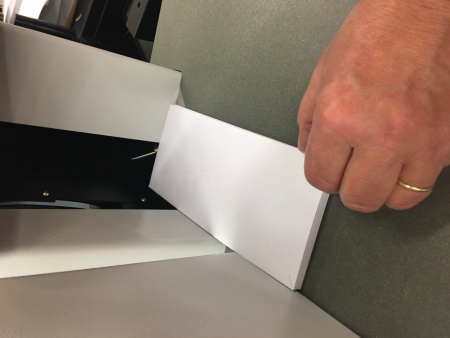

The BANTAM can count envelopes. They just can not count foil lined envelopes.

CUSTOMIZE YOUR MAX-BANTAM WITH THESE OPTIONS

Base cabinet with locking storage compartment and wheels

Coupon tray (for smaller sheets) and for counting empty envelopes.

SPECIFICATIONS

Net Weight ..............................................160 lbs (73 Kg)

Height ..........................................................30" (76 cm)

Width ........................................................18.5" (47 cm)

Depth............................................................37" (94 cm)

Throat Height..................................................6" (15 cm)

Table Size ..............................15" x 18" (38 cm x 46 cm)

Sheet Size Maximum ............15" x 18" (38 cm x 46 cm)

Sheet Size Minimum............2.25" x 4" (5.7 cm x 10 cm) Counts smaller sheets with the optional coupon tray

Paper Range ..............12 lb. bond up to .010 cover stock (25 g/m2 up to 250 g/m2) Dependent upon paper substance & flexibility

Electrical ........120V AC, 10A or 220/240V AC, 50/60 Hz

NOTE: Maximum sheet size is based on the 15" x 18" Table.

Shipping Information: Ships by Truck as Class 100. Shipping Dimensions are 34 L. x 25 W. x 41 H. Inches. Shipping Weight is s 210 lbs.

Max Bantam Counting 20lb bond paper in 25's



How to load tabbing tape



How the Counter Works





Warranty:U.S. Paper Counters (USPC) Count-Wise1 Count-Wise M, Count-Wise III and Bantam have a one (1) year Parts and Labor Limited Warranty. USPC is not liable for any shipping costs involved in the return of defective parts or in the dispatch of replacement parts.
