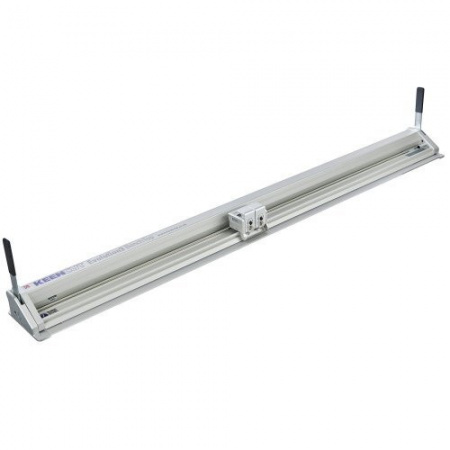

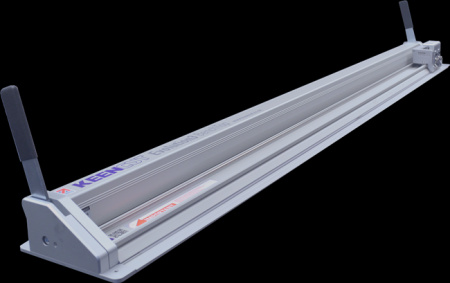

Keencut Evolution3 64 Inch BenchTop Cutter - E3BT160

**SEE DEMO VIDEO BELOW.**

The Keencut Evolution3 E3BT160 64 Inch BenchTop Cutter is perfect for a busy studio or medium-use production environment. It is guaranteed to cut within .008 Inch of a straight line for the length of the cut. The Lift-and-Hover saves time and avoids mistakes allowing users to line up their cuts quicker and more accurately. The site line strip enables operators to see exactly where the cut line is. The stainless steel slideway track and rollers on the QuikSwap tool heads provide a very strong and steady movement up and down the machine, with very little sideways motion that could misalign the cut. Plus, it is equipped with an Anti-sag system that holds the cutter bar level for accurate line-up. This Keencut Evolution3 64 Inch BenchTop Cutter is perfect for cutting up to 1/2 Inch thick materials such as foam boards, banners, corrugated plastic, paper, tissue, card, fabric & textiles, inkjet media, pvc board (up to 10mm thick), and acrylic (score & snap up to 1/4 in).

The Keencut Evolution3 BenchTop Cutter is designed to fit the optional Keencut BenchTop Bench. Combine the BenchTop Bench with the Evolution3 BenchTop cutter to create the ultimate precision cutting table. Looking to Cut ACM? Keencut’s new Evolution3 Rocker tool head (sold separately) is a general-purpose cutting head. It has an ergonomic design that follows the natural curvature of your hand and offers maximum comfort for all-day cutting. The Rocker tool head will cut materials such as banners, cardboard, and foamboard up to 10mm (3/8 Inch) and can be used for the occasional cutting of aluminum composite panels.

Product Details

• Quick and easy to use - saves time and money
• Reliable and built to last with a 5-Year Manufacturer's Warranty
• Lift-and-Hover (patent pending) for fast, accurate cut alignment
• Future-proof and versatile QuikSwap tool heads
• Guaranteed ultra high precision 0.2 mm accuracy
• Cuts PVC foamboard up to 13 mm
• Lift-and-Hover alignment system
• Quikswap Tool Heads

Single-handed operation

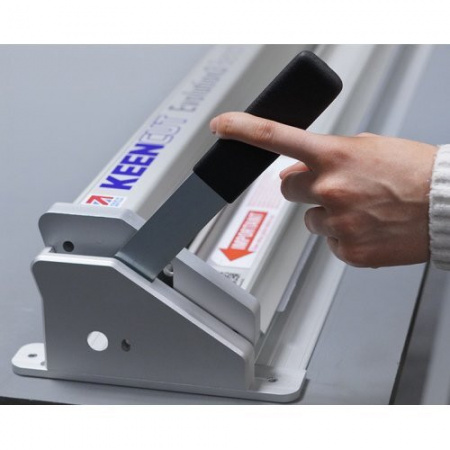

Two unique, patent-pending features enable single-handed, fast, and accurate alignment of all materials, irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sags.

Guaranteed accuracy

The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008 in) of a straight line for the full length of the cut. The in-built ultra-precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-precision accuracy will save you time and money with less waste and fewer mistakes.

Total stability

The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes.

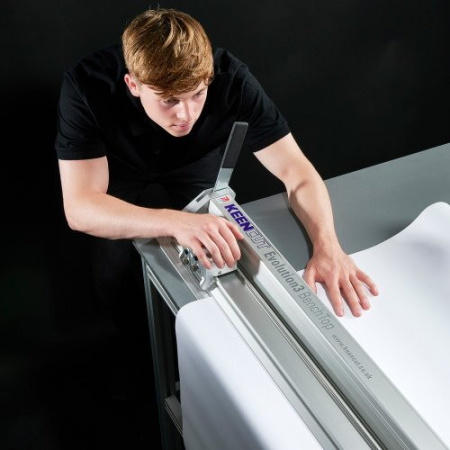

Simple to use

The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Testing has proven that the Evolution3 features increase accuracy and the speed of production. The ease of use makes it possible for even first-time users to cut confidently and accurately.

Heavy duty reliability

The entire Evolution3 range has been built to last using high-quality materials and well-tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines keeping tolerances and quality under constant control, this assures exceptional accuracy and total reliability.

Future-proof and versatile Quikswap tool heads

The QuikSwap tool head family gives users the ultimate flexibility. Each tool is designed for a specific purpose, such as general cutting, creasing, and fabric cutting, and can be attached or detached from the cutter in seconds. You can mount single or multiple tool heads to suit your work and the Graphik tool head is supplied as standard with other optional QuikSwap tools available to extend your cutting capability. New tools are also being developed to meet emerging requirements.

The versatile Rocker head

The optional Rocker tool head is the latest addition to the QuikSwap range. It is a versatile general-purpose tool for cutting materials such as banners, cardboard and foamboard up to 10mm (3/8 in). The ergonomic design follows the natural curvature of your hand and offers maximum comfort for everyday cutting. It also provides two-way cutting – pulling to cut lighter-weight materials and pushing for those that require more effort. For those who occasionally cut aluminum composite panels, such as Dibond or Alupanel, the Rocker's head can be fitted with the Tech-D.012 blade. The cutting technique requires a series of careful strokes and we advise that you watch the Keencut video guide to perfect your cutting action.

Five-year guarantee

Like all Keencut machines, the Evolution3 is precision-built using top-quality materials. All components are manufactured in-house to ensure quality and all Evolution3 cutters come with a five-year comprehensive guarantee. Register your product to activate your guarantee

SPECIFICATIONS

• Materials cut:
• Semi-rigid materials
• Corrugated cardboard 13 mm (1/2 in)
• PVC foamboard 13mm (1/2 in)
• Corrugated plastic 13 mm (1/2 in)
• Foam centred board 13 mm (1/2 in)
• Rigid materials
• Cast acrylic / Plexiglas 3 mm (3/32 in) scoring only
• Aluminum composite panel, e.g. DiBond 3 mm (3/32 in) Rocker tool head only, for occasional use
• Flexible materials
• Banners
• Pop-ups
• Magnetic sheets
• Film
• Self-adhesive vinyls
• Textiles
• Delicate materials: tissue paper, wallpaper
• Dimensions:
• Cut Length cm ("): 160 cm (64 in)
• A cm ("): 198cm (78 in)
• B cm ("): 20.5cm (8 in)
• Packed Weight: 34.5kg (76 lbs)
• Packed Dimensions cm ("): 210 x 35 x 17cm (83 x 14 x 7 in)
• What's in the Box?
• One (1) Evolution3 64" BenchTop Cutter Bar
• 100 Graphik blades
• One (1) Double Graphik tool head (mounted)
• Manufacturer's Warranty: 5 Year Manufacturer's Warranty
• Old Part Number: 61286
• New Part Number: E3BT160
