Description

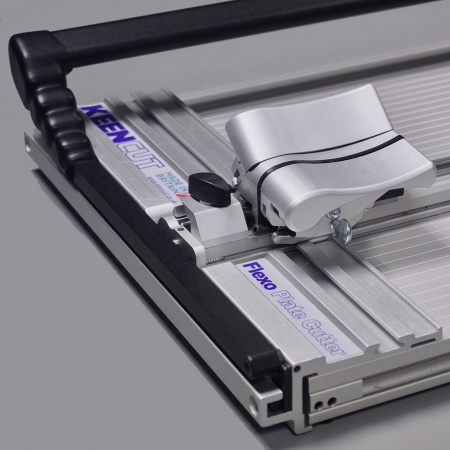

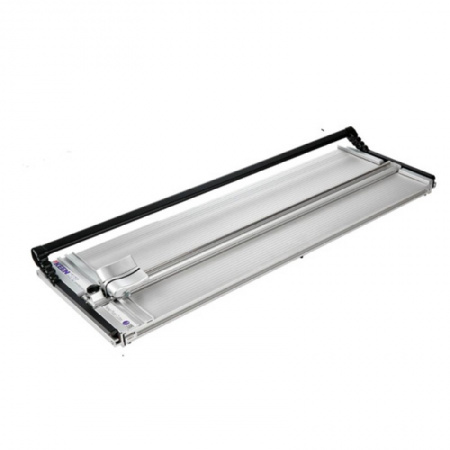

Keencut 64 Inch (163 cm) Flexo Plate Cutter Series 2 - FPC64 For wide web printers (Old Part # 61916)

The safer, faster, and more accurate way to cut flexographic plates

With the Flexo Plate Cutter, you can accurately pre-cut flexo on the flat.

By using the sightline strip you can precisely align to your target marks for the first and second cut – there is no need to cut flexo on the round. There is less chance of costly mistakes, which often result in production downtime and the need to re-schedule work. You will quickly create seamless splices every time and save both time and money.

The cutter is also intuitive to use and with a little training and practice, precise flexo cutting is achievable by all operators.

The dual cutter head gives the option of creating a beveled overlapping join, or alternatively a 5° undercut, so both plate edges meet perfectly when applied to the roller. The perfect join prevents ink traps or any deterioration of the adhesive.

The Flexo Plate Cutter is specially designed to ensure your safety and increase production.

Features

• Smooth, seamless splices every time
• Bevel and 5° angled magnetic blade cartridge system
• Quick ROI through reduced waste and cut time
• Extreme accuracy
• Cutting mat included
• Robust construction
• Safety by design
• Manufactured with premium quality materials
• Guaranteed for 5 years

Perfect accuracy for tight joins

The design gives a lifetime of straight, precision-accurate, silent cutting. The cutting head features a set of built-in self-aligning ball-bearing rollers operating on twin steel tracks. There is zero play on the cutting head sliding action and the base is constructed of heavy-duty, one-piece aluminum extrusion for complete stability. The precision accuracy produces seamless splices and eliminates costly mistakes, whilst the 5-degree undercut creates a tight join when the flexo is attached to the cylinder.

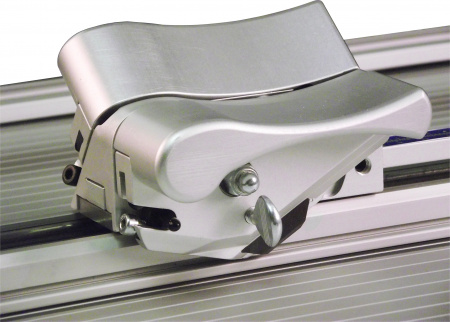

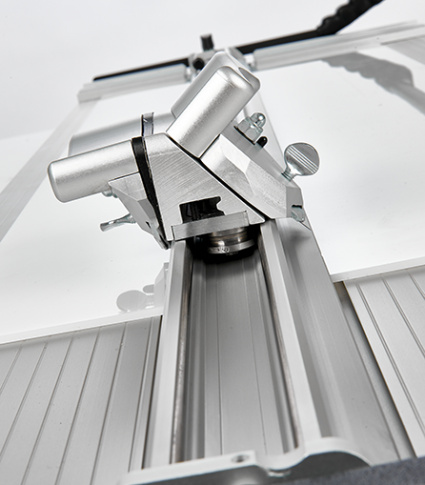

Bevel & 5° undercut cutting head

The spring-loaded bevel and 5° undercut blade holder feature ball and thrust bearings for perfect alignment and superb blade control. The cutting head is mounted on two stainless steel tracks and hardened steel ball track rollers. All combined, they work together to give the ultimate in blade control.

Safety by design

The Flexo Plate Cutter ensures your safety and removes the dangerous practice of cutting flexo by hand with a knife. Magnetic blade cartridges make switching between different thicknesses of the plate a safe, simple, and quick process. Everything has been designed to ensure your safety.

Simple operation

You can have various blade depths pre-set within different cartridges, so a precise and repeatable cut can be made by simply switching to a new cartridge. You can be confident of getting the right cut the first time, every time, and eliminating variability. The maximum blade depth for the bevel blade is 5 mm (3/16 Inch), the 5° undercut blade fitted with a trapezoidal blade is 10mm (3/8 Inch) and the rectangular blade is 8 mm (5/16 Inch). Simple color coding makes it easy to identify and calibrate the pre-set depths.

Ergonomically designed cutting head

The sculpted cutting head makes the Flexo Plate Cutter easy to use over long periods and is suitable for operation by left or right-handed users. A smooth sliding action provides precise cutting with no discernible friction.

Five year guarantee

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Flexo Plate Cutter will provide reliable long-lasting, and accurate service. All Keencut products are offered with a comprehensive five-year guarantee. Register your product to activate your guarantee.

SPECIFICATIONS

• Materials cut:
• Designed specifically to cut flexographic plates.
• Also capable of cutting:
• Floor graphics
• Vinyl
• Rubber matting
• Corrugated cardboard
• Foam centred board

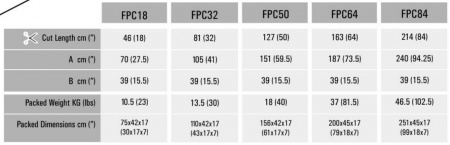

• Dimensions:
• Cut Length cm ( in ): 64 in (163 cm)
• A cm ( in ): 73.5 in (187 cm)
• B cm ( in ): 15.5 in (39 cm)
• Packed Weight: 37 kg (81.5 lbs)
• Packed Dimensions cm ( in ): 200 x 45 x 17cm (79 x 16 x 7 in )
• What's in the Box?
• 15 Tech-S .015 blades
• 15 Tech-S .012 blades
• 15 Tech-D .012 blades
• 100 medium duty utility blades
• Manufacturer's Warranty: 5 Year Manufacturer's Warranty
• Old Part Number: 61916
• New Part Number: FPC64

DEMO: Flexo Plate Cutter How to cut flexo plates

Keencut Flexo Plate Cutter Series 2 Models

Keencut 18 Inch Flexo Plate Cutter Series 2
Keencut 32 Inch Flexo Plate Cutter Series 2
Keencut 50 Inch Flexo Plate Cutter Series 2
Keencut 84 Inch Flexo Plate Cutter Series 2

Accessories, Blades & Consumables

Tech-D .012 Blades (Box of 100) for Rocker Head - CA50-017
Tech-D .015 Blades (Box of 100) - CA50-020
Tech-S .012 Blades (Box of 100) - CA50-021
Tech-S .015 Blades (Box of 100) - CA50-030
Medium Duty Utility Blades CA50-019 (100 pack) - CA50-019
Yellow “T” Silicon Cord (x 33 ft) - SILYT
Sight Line Strip for Flexo Plate Cutter (x18 ft) - SLS
Lift & Hold System for Flexo Plate Cutter - FLH
Squaring Arm for Flexo Plate Cutter - FSA

Flexo Plate Cutter Spare Parts

Keencut Flexo Cutting Head Assembly FF01/004
Keencut Ultimat Futura & Flexo Plate Cutter Undercarriage - SU21-002
