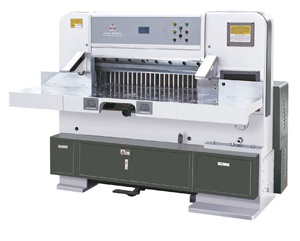

ERC 54 inch Hydraulic Paper Cutter
Description
ERC 54 inch Hydraulic Paper Cutter
Hydraulic Paper Cutting Machine:
�54" Cutting Width, 5.13" Clamp Opening
Hydraulic Cutting
Adjustable Clamp Pressure
Manual Foot Pedal Clamping
Backgauge Position Indicator
Line-Light Cut Position Indicator
Lighted Work Surface
False Clamp Plate
Cast Iron and Steel Construction
When making your purchase of this item, consider that we carry all parts for this Cutter and offer you support! We are in the USA and you can easily reach us by CHAT, E-mail, Fax, and Telephone. See if our competitors can make those same statements. Most of them do not and cannot.
Technical Specification of ERC Hydraulic Paper Cutters:
Model | 92 | 115 | 130 | 137 |
Cutting width (cm/inch) | 92/36.25 | 115/45.25 | 130/51.20 | 137/54 |
Cutting height (cm/inch) | 13/5.13 | 16.5/5.13 | 13/5.13 | 16.5/6.5 |
Max. cutting length(cm) | 92/36.25 | 115/45.25 | 130/51.20 | 145/57 |
Main motor power(KW) | 3 | 4 | 4 | 4 |
Width (with sideway)(cm/inch) | 212/83.50 | 265/104.33 | 280/110.25 | 287/113 |
Length (cm/inch) | 205/80.69 | 246.5/97 | 258.5/101.75 | 278.5/109.63 |
Height (cm/inch) | 156/61.4 | 165/65 | 156/61.4 | 165/65 |
Front table length(cm/inch) | 69/27.19 | 73.5/28.94 | 73.5/28.94 | 73.5/28.94 |
Table height(cm/inch) | 90/35.44 | 90/35.44 | 90/35.44 | 90/35.44 |
Min. cut size(without press plate)(cm/inch) (with press plate)(cm/inch) | 2.5/1 9/3.5 | 2.5/1 9.5/3.75 | 2.5/1 9/3.5 | 2.5/1 9.5/3.75 |
Cutting speed(r/min) | 45 | 45 | 45 | 45 |
Packing size (LXWXH) cm inch | 244�145�180 96.08�57.09�70.88 | 275�150�200 108.25�59.06�78.75 | 275�140�191 108.25�55.13�75.20 | 295�140�200 116.13�55.13�78.75 |
Voltage (three-phase) v | 380�5% | 380�5% | 380�5% | 380�5% |
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
Manufacturer Part #: | Wity YXW 137T |
