COUNT | ACTREG AccuCreaser Air Digital Creasing and Perforating Machine

Quantity:

MSRP:
$15,921.41

Price You Pay:

$14,850.00
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

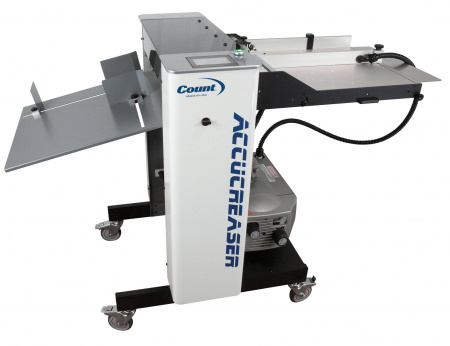

COUNT | ACTREG AccuCreaser Air Digital Creasing and Perforating Machine


Our top-of-the-line vacuum-feed creasing and perforating solution–fast, consistent and accurate.

The COUNT ACTREG AccuCreaser Air provides fast, consistent quality creasing and perforating with a variety of features that make it top of its class. Get super accurate CAM actuated compression creasing with rotary perf/score capabilities, including micro-perf options (up to four at a time), and automated distance recognition to support auto set-ups for a variety of creases, even perfect bind set-ups. The AccuCreaser Air utilizes a bottom vacuum paper feed with a built-in register guide to ensure accuracy with every sheet.


Need Parts for the AccuCreaser? We have them.
See Below. All Parts are in Stock


FEATURES

  • Provides modes for creasing, perforating or feeding.
  • Bottom vacuum feed with sheet spacing control.
  • CAM actuated compression creasing ensures maximum crease accuracy.
  • Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect bind.
  • Perform up to 4 perfs at a time (including micro perf).
  • Includes a sheet counter (for both batch and total sheet count).
  • Two-sided die creasing rod accommodates for heavier stock–simply remove and flip over to change from narrow to wide crease.
  • User-friendly touch screen for easy set up and control of the machine.

SPECIFICATIONS

  • Paper Feed :Vacuum
  • Max Crease Speed :5,500
  • Max Perf/Score Speed : 12,000
  • Paper Weight Range : 60 – 350 (gsm)
  • Max Sheet Size : 24.0 L x 17.0 W in (61.0 x 43.2 cm)
  • Min Sheet Size : 4.5 L x 4.5 W in (11.4 x 11.4 cm)
  • Max Crease Locations per Sheet : 12
  • Max Perf/Score Locations per sheet : 4
  • Paper Fold Options : Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
  • Scoring : Standard
  • Touch Screen Controls : True
  • Product Dimensions : 56.0 L x 30.0 W x 44.0 H IN
  • Product Weight : 300 lbs (136 kg)
  • Electrical : 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A

Spare/Replacement Part for COUNT ACTREG AccuCreaser Air Digital Creasing and Perforating Machine

Count Machinery Part # M-S0H1702 - O-RING MOTOR DRIVE BELT

Count Machinery Part # M-S0H1762 - O-RING (8820 - 200 - 325)

Count Machinery Part # WRASAAM0930 Upper Roller

Count Machinery Part # WRASAAM0931 Lower FWD Roller

Count Machinery Part # M-S0H1663 - O RING BELT EXCREASER

Count Machinery Part # M-S045707 - RELAY 24VDC

Count Machinery Part # M-S0E1241 - MOTOR, CREASER 24VDC

Count Machinery Part # M-S0E1321 - STEPPER MOTOR DRIVER

Count Machinery Part # M-S045719 - 24VDC POWER SUPPLY

Count Machinery Part # M-S0E1300 - SENSOR

Count Machinery Part # M-S0E1323 48VDC POWER SUPPLY



If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: ACTREG
Dimensions (LxWxH): 56.00in. x 30.00in. x 44.00in.

SPECIFICATIONS

  • Paper Feed :Vacuum
  • Max Crease Speed :5,500
  • Max Perf/Score Speed : 12,000
  • Paper Weight Range : 60 – 350 (gsm)
  • Max Sheet Size : 24.0 L x 17.0 W in (61.0 x 43.2 cm)
  • Min Sheet Size : 4.5 L x 4.5 W in (11.4 x 11.4 cm)
  • Max Crease Locations per Sheet : 12
  • Max Perf/Score Locations per sheet : 4
  • Paper Fold Options : Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
  • Scoring : Standard
  • Touch Screen Controls : True
  • Product Dimensions : 56.0 L x 30.0 W x 44.0 H IN
  • Product Weight : 300 lbs (136 kg)
  • Electrical : 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A
