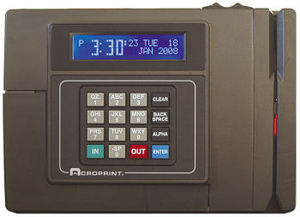

Acroprint Ethernet DC7000 Data Collection Terminal
Magnetic Stripe Reader, RS232 & Ethernet Communications
Save time and improve data-collection accuracy with a versatile and reliable DC7000 terminal.
DC7000 at a glance
Flexible - Supports multiple input options, including proximity or barcode badges, fingerprint biometrics and terminal keypad entry. Designed to grow and adapt to your evolving needs. See various configurations below.
Customizable - Configurable to meet your specifications. Collects data for time tracking, time and attendance applications, job costing / labor distribution, inventory control, controlled access, material tracking, or machine monitoring.
Connectable - Offers multiple communications options and printer connections to easily integrate with your network and meet your needs.
Reliable - Stores 20,000+ events internally between pollings. Flash memory protects data without the need for external power.
The DC7000's tough, flame-retardant ABS shell resists cracking. Each terminal offers an easy-to-read 2-line by 20-character backlit blue alphanumeric display and a 16-button keypad. With a variety of communications and data input options, these highly-customizable terminals also include a parallel port for printing and DIN input port for wands, bells and access control.
Easy integration with Acroprint or custom systems. The DC7000 integrates seamlessly out-of-the-box with the Acroprint Pendulum time and attendance system. This terminal can function as a drop-in replacement for our ADCT units.
System developers! You can easily integrate the DC7000 into your custom applications. (Note: the DC7000 does not function as a standalone unit or with other off-the-shelf time and attendance software.)
A complete terminal kit
Each DC7000 terminal comes complete with a power transformer a hardware installation manual a wall mounting kit and supervisor and configuration badges Employee badges (mag stripe, barcode or proximity) cables signal devices and other accessories are available separately (SEE BELOW).
DC7000 product features and specifications
Display: 2 line by 20 character blue backlit LCD (alphanumeric).
Memory:
Flash: 1 MB (2 MB optional)
SRAM: 512 KB (1 MB optional)
FRAM: 128 KB (256 KB optional)
Data Flash: 512 KB (optional)
Power: 120/240V. 50Hz/60Hz wall mount transformer 9 volt AC, 1000 mA minimum.
Battery Capabilities: Internal lithium battery powers the real time clock for up to 10 years. Data is retained in FRAM which does not require external power.

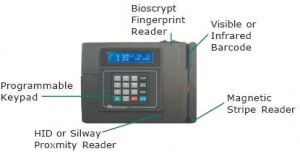

Media Input:
Integral keypad.
Magnetic Stripe Card Reader (ABAII).
Barcode Reader, Code 39, Interleaved 2 of 5, (visible or infrared).
External Bar Code Reader.
Pen Wand.
Integrated Fingerprint Reader.
Proximity Reader 125kHz RFID or HID 26 Bit.
Communications: RS232, RS485 2 wire single terminal or multi-dropped protocols (LAN), internal 56K-baud modem, Ethernet/Internet TCP/IP (RJ45), 10/100 BaseT.
Printer Connection: Serial port RJ11 modular, parallel port 25-pin DB.
Enclosure: Flame retardant Polycarbonate/ABS, with reversible wall mounting bracket and secured access door that protects I/O ports.
System Requirements: Works with Acroprint Pendulum system and custom software applications. Requires Windows 2000/2003 Server/XP/Vista.
Operating Ranges: 0 to 40 degrees Celsius; 32 to 110 degrees Fahrenheit; 0 to 95% relative humidity, non-condensing.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: |
017000002 |
| Dimensions (LxWxH): |
2.00in. x 9.00in. x 6.00in. |
