Acroprint Ethernet DC7000 Data Collection Terminal - Magnetic Stripe Reader, FIU

Quantity:

MSRP:
$1,664.00

Price You Pay:

$1,324.00
Yes! This Item Is In Stock!
International & Domestic Shipping Info
Availability
Online
In Store
Same Day

Description

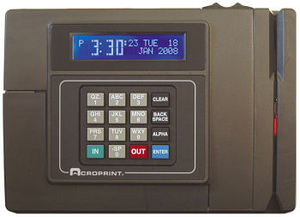

Acroprint Ethernet DC7000 Data Collection Terminal



Magnetic Stripe Reader, FIU, RS232 & Ethernet Communications

Save time and improve data-collection accuracy with a versatile and reliable DC7000 terminal. DC7000 at a glance

  • Flexible - Supports multiple input options, including proximity or barcode badges, fingerprint biometrics and terminal keypad entry. Designed to grow and adapt to your evolving needs. See various configurations below.

  • Customizable - Configurable to meet your specifications. Collects data for time tracking, time and attendance applications, job costing / labor distribution, inventory control, controlled access, material tracking, or machine monitoring.

  • Connectable - Offers multiple communications options and printer connections to easily integrate with your network and meet your needs.

  • Reliable - Stores 20,000+ events internally between pollings. Flash memory protects data without the need for external power.

    The DC7000's tough and versatile terminal, flame-retardant ABS shell resists cracking. Each terminal offers an easy-to-read 2-line by 20-character backlit blue alphanumeric display and a 16-button keypad. With a variety of communications and data input options, these highly-customizable terminals also include a parallel port for printing and DIN input port for wands, bells and access control.

    The DC7000 integrates seamlessly out-of-the-box with the Acroprint Pendulum time and attendance system. This terminal can function as a drop-in replacement for our ADCT units.

    System developers! You can easily integrate the DC7000 into your custom applications. (Note: the DC7000 does not function as a standalone unit or with other off-the-shelf time and attendance software.)

    A complete terminal kit

    Each DC7000 terminal comes complete with a power transformer, a hardware installation manual, a wall mounting kit and supervisor and configuration badges. Employee badges (mag stripe, barcode or proximity), cables, signal devices and other accessories are available separately (SEE BELOW).

    DC7000 product specifications

  • Display: 2 line by 20 character blue backlit LCD (alphanumeric).

  • Memory:
  • Flash: 1 MB (2 MB optional)
  • SRAM: 512 KB (1 MB optional)
  • FRAM: 128 KB (256 KB optional)
  • Data Flash: 512 KB (optional)
  • Power: 120/240V. 50Hz/60Hz wall mount transformer 9 volt AC, 1000 mA minimum.
  • Battery Capabilities: Internal lithium battery powers the real time clock for up to 10 years. Data is retained in FRAM which does not require external power.

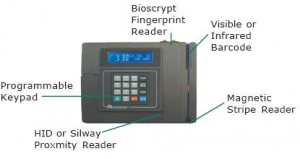

  • Media Input:
  • Integral keypad.
  • Magnetic Stripe Card Reader (ABAII).
  • Barcode Reader, Code 39, Interleaved 2 of 5, (visible or infrared).
  • External Bar Code Reader.
  • Pen Wand.
  • Integrated Fingerprint Reader.
  • Proximity Reader 125kHz RFID or HID 26 Bit.
  • Communications: RS232, RS485 2 wire single terminal or multi-dropped protocols (LAN), internal 56K-baud modem, Ethernet/Internet TCP/IP (RJ45), 10/100 BaseT.
  • Printer Connection: Serial port RJ11 modular, parallel port 25-pin DB.

    Enclosure: Flame retardant Polycarbonate/ABS, with reversible wall mounting bracket and secured access door that protects I/O ports.

    System Requirements: Works with Acroprint Pendulum system and custom software applications. Requires Windows 2000/2003 Server/XP/Vista.

    Operating Ranges: 0 to 40 degrees Celsius; 32 to 110 degrees Fahrenheit; 0 to 95% relative humidity, non-condensing.

    • Specifications

    Manufacturer Part #: 017000202
    Dimensions (LxWxH): 2.00in. x 9.00in. x 6.00in.
