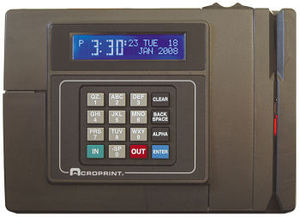

Acroprint LAN DC7000 Data Collection Terminal

Magnetic Stripe Reader, RS232 & RS485 Communications

Save time and improve data-collection accuracy with a versatile and reliable DC7000 terminal. The DC7000's tough, flame-retardant ABS shell resists cracking. Each terminal offers an easy-to-read 2-line by 20-character backlit blue alphanumeric display and a 16-button keypad. With a variety of communications and data input options, these highly-customizable terminals also include a parallel port for printing and DIN input port for wands, bells and access control.

The DC7000 integrates seamlessly out-of-the-box with the Acroprint Pendulum time and attendance system. This terminal can function as a drop-in replacement for our ADCT units.

System developers! You can easily integrate the DC7000 into your custom applications. (Note: the DC7000 does not function as a standalone unit or with other off-the-shelf time and attendance software.)

DC7000 at a glance

Flexible - Supports multiple input options, including proximity or barcode badges, fingerprint biometrics and terminal keypad entry. Designed to grow and adapt to your evolving needs. See various configurations below.

Customizable - Configurable to meet your specifications. Collects data for time tracking, time and attendance applications, job costing / labor distribution, inventory control, controlled access, material tracking, or machine monitoring.

Connectable - Offers multiple communications options and printer connections to easily integrate with your network and meet your needs.

Reliable - Stores 20,000+ events internally between pollings. Flash memory protects data without the need for external power.

A complete terminal kit

Each DC7000 terminal comes complete with a power transformer, a hardware installation manual, a wall mounting kit and supervisor and configuration badges. Employee badges (mag stripe, barcode or proximity), cables, signal devices and other accessories are available separately.

DC7000 product specifications

Display: 2 line by 20 character blue backlit LCD (alphanumeric).

Memory:

Flash: 1 MB (2 MB optional)

SRAM: 512 KB (1 MB optional)

FRAM: 128 KB (256 KB optional)

Data Flash: 512 KB (optional)

Power: 120/240V. 50Hz/60Hz wall mount transformer 9 volt AC, 1000 mA minimum.

Battery Capabilities: Internal lithium battery powers the real time clock for up to 10 years. Data is retained in FRAM which does not require external power.

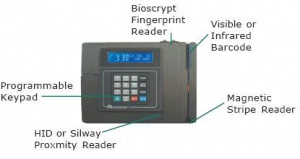

Media Input:

Integral keypad.

Magnetic Stripe Card Reader (ABAII).

Barcode Reader, Code 39, Interleaved 2 of 5, (visible or infrared).

External Bar Code Reader.

Pen Wand.

Integrated Fingerprint Reader.

Proximity Reader 125kHz RFID or HID 26 Bit.

Communications: RS232, RS485 2 wire single terminal or multi-dropped protocols (LAN), internal 56K-baud modem, Ethernet/Internet TCP/IP (RJ45), 10/100 BaseT.

Printer Connection: Serial port RJ11 modular, parallel port 25-pin DB.

Enclosure: Flame retardant Polycarbonate/ABS, with reversible wall mounting bracket and secured access door that protects I/O ports.

System Requirements: Works with Acroprint Pendulum system and custom software applications. Requires Windows 2000/2003 Server/XP/Vista.

Operating Ranges: 0 to 40 degrees Celsius; 32 to 110 degrees Fahrenheit; 0 to 95% relative humidity, non-condensing.
