Description

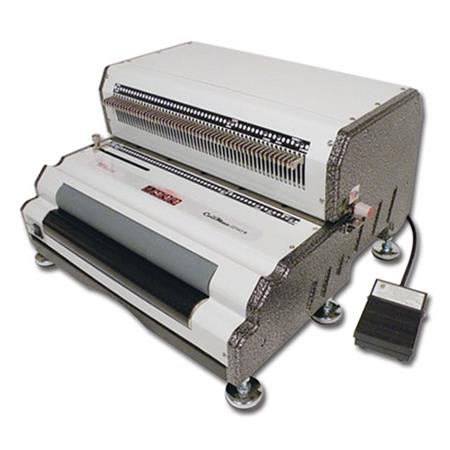

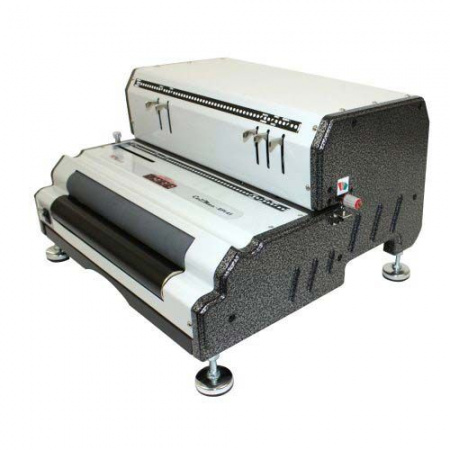

Akiles | CoilMac-EPI+ 13 Inches Electric Coil Punch and HD Electric Coil Inserter Binding Machine, Oval Hole (ACM-EPI41+)

The New Akiles CoilMac EPI Plus is a new and improved version of the classic CoilMac EPI Electric Spiral Coil Binding Machine. This machine includes the solid construction, electric coil inserter, heavy duty electric punch and other great features that have made the Akiles Coilmac EPI binding machine famous. However, it provides a number of features that are simply not available on comparable spiral coil binding machines. The New CoilMac EPI-Plus offers oval punching holes to help make inserting coils easier than ever. It also includes fully disengageable punching pins to allow you to punch virtually any document length. The CoilMac EPI Plus series of machines is the only line of manual coil binding machines to offer these options. Plus, the Coilmac-EPI-Plus offers a 0.248 pitch to help ensure that the holes aren't too close or too far away from the edge of the paper. With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI Plus Coil Binding Machine makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads. The Akiles CoilMac EPI+ Heavy Duty Electric Coil Binding Machine with Electric Coil Inserter is one of the best electric coil binding machines on the market. The CoilMac EPI Plus includes a heavy duty electric binding punch and a high quality electric coil inserter. The CoilMac EPI+ can punch up to 20 sheets per lift and includes a foot pedal control for easier punching and inserting. The Akiles CoilMac EPI Plus truly is the ultimate in Combination Coil Binding Machines.

Product Details

• OVAL holes: Special 4 x 5 mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
• FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
• LETTER 4:1 pitch (0.248 Inch): This revolutionary 0.248 Inch coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

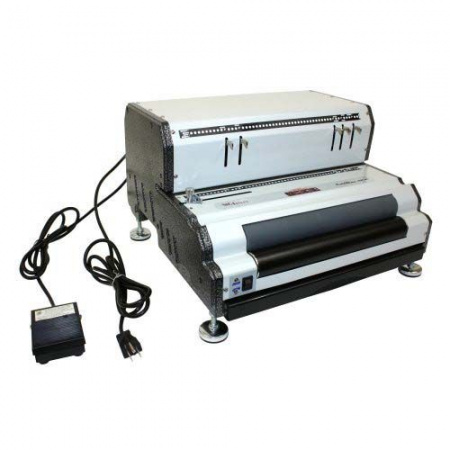

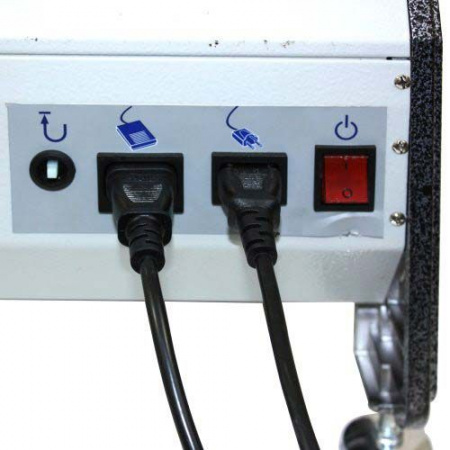

• All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
• Extended Single Punching Length (13 Inches): With open ends & continuous punch guide to easily punch documents of any length (up to 26 Inches).
• High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
• Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.
• Electric Reverse (Anti-Jam) Function: For trouble-free punching.

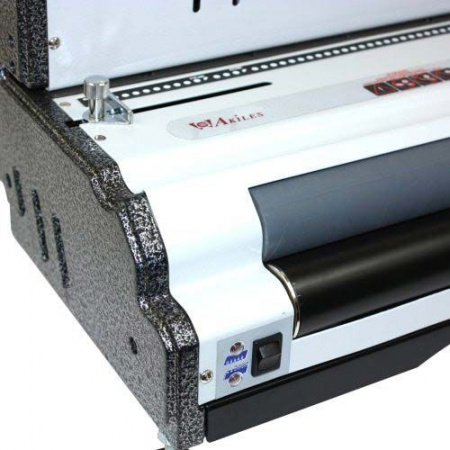

• Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8 Inches EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
• Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
• U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.

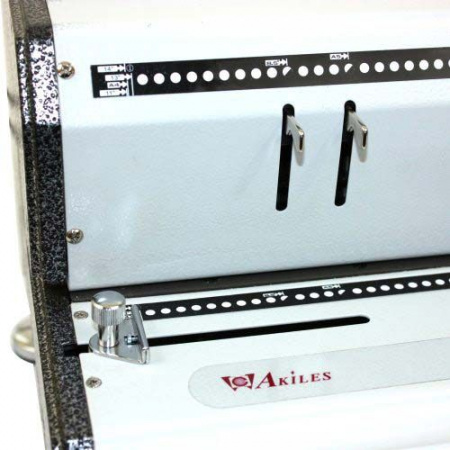

• Side Margin Control: Provides an evenly centered punch for all document sizes.

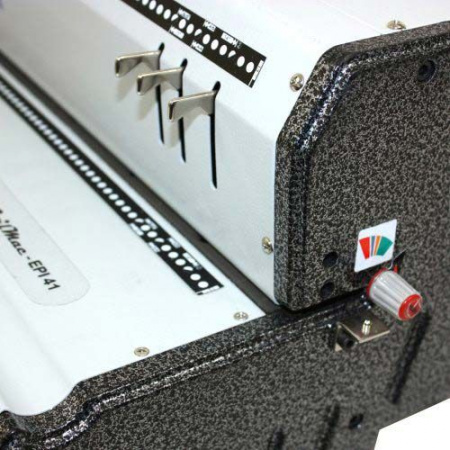

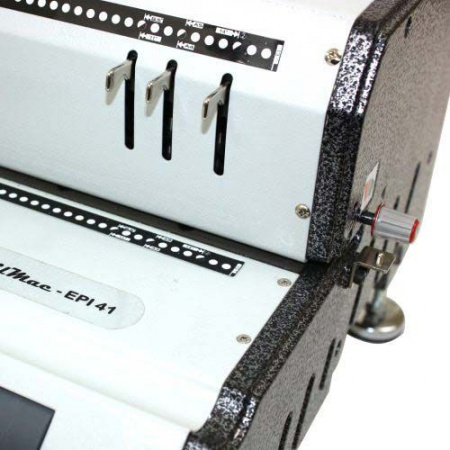

• Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
• Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26 Inches.
• Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
• Extra-High-Capacity Waste Drawer
• 6 Height-Adjustable Non-Skid Metal Feet
• CE Certification: All components certified & approved by CE for most stringent safety requirements.
• Includes Coil Diameter Selector & Premium Oval Coil Crimpers

SPECIFICATIONS

• Model: CoilMac-EPI+
• Pitch: Letter 4:1 (0.248 Inch)
• Operation: Punching – Electric Inserting – Electric
• Single Punch Capacity: Up to 25 sheets for 20 lbs paper. Up to 2.6 mm for hardboard (28-sheet equivalent thickness)*
• Suggested Binding Capacity:Up to 1 Inch (electric) Up to 2 Inches (manual)
• Single Punch Length: 13 Inches (54 holes)
• Hole Size: Oval (4mm x 5mm)
• Disengageable Pins: All 54
• Weight & Dimensions:75 lbs & 2.9 CbFt
• Warranty: 1 Year
