Akiles | CoilMac ER 4:1 Pitch Coil Binding Machine with Electric Coil Inserter (ACM-ER41)
This Item Ships For Free
Availability
Online
In Store
Same Day
Description
Akiles | CoilMac ER 4:1 Pitch Coil Binding Machine with Electric Coil Inserter (ACM-ER41)
FOR RELATED PRODUCTS CLICK ON THE RELATED ITEM TAB ABOVEFOR PARTS, SUPPLIES AND ACCESSORIES CLICK ON THE ACCESSORIES TAB ABOVE

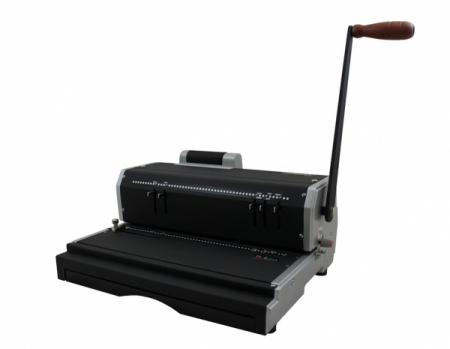

A fully featured, heavy-duty manual coil punching machine, with a built-in Electric coil inserter. The re-designed & improved CoilMac-ER is the ideal partner for mid-volume workloads.
Product Details
- Round Holes: Standard 4mm round holes.
- 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
- STANDARD 4:1 Pitch (0.250 Inch): Standard pitch for coil binding. Punches 43 holes in a 11 Inches sheet.
- Extended Single Punching Length (13 inch): With open ends & continuous punch guide to easily punch documents of any length (up to 26 Inches).
- High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13? length (53 holes).
- Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.

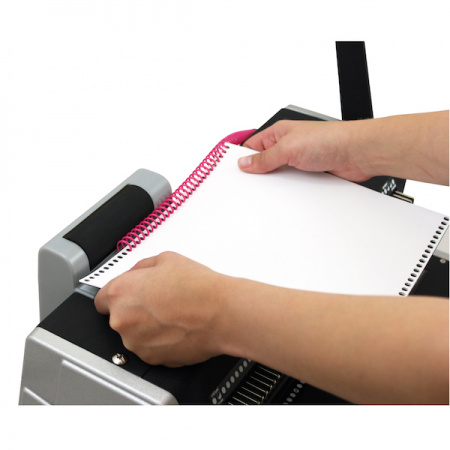

- Top Electric Roller Coil Inserter (Foot Pedal Operated): This easy to use and durable roller makes coil inserting surprisingly fast and easy. It is strategically placed on the left side of the machine so your coil will clear the punch handle while you are inserting.

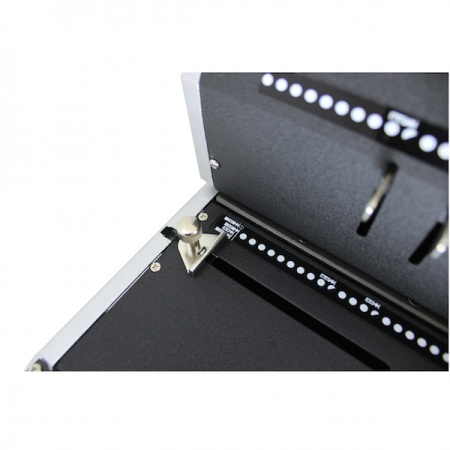

- Side Margin Control: Provides an evenly centered punch for all document sizes.

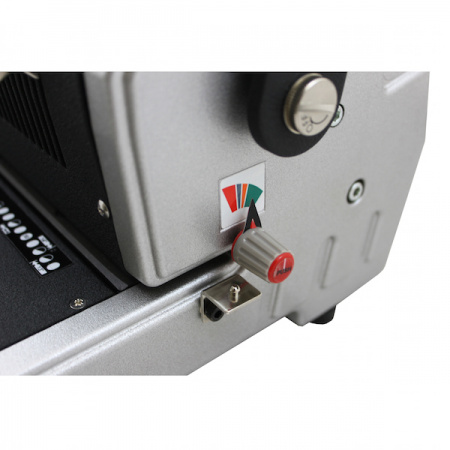

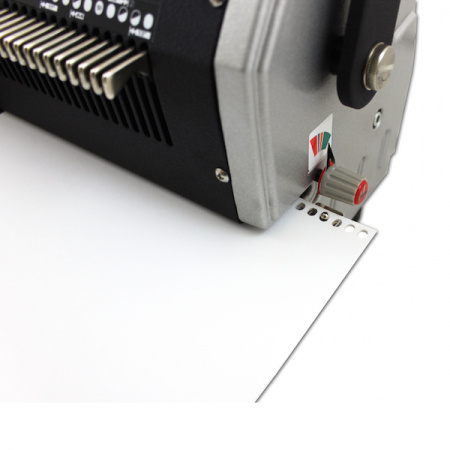

- Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26 Inches.
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
- Large Waste Drawer and Non-Skid Feet
- CE Certification: All components certified & approved by CE for most stringent safety requirements
- ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
- Includes Coil Diameter Selector & Premium Oval Coil Crimpers
SPECIFICATIONS
- Model :CoilMac-ER
- Pitch Available :Standard 4:1 (0.250 Inch)[Other pitches also available upon special request]
- Operation : Punching – Manual Inserting – Electric (with built-in Electric Roller)
- Single Punch Capacity : Up to 20 sheets for 20 lbs paper / Up to 2.6mm for hardboard / (28-sheet equivalent thickness)
- Suggested Binding Capacity : Up to 7/8 Inch (electric) Up to 2 Inch (manual)
- Single Punch Length : 13 Inches (53 holes)
- Hole Size : Round (4mm)
- Disengageable Pins: 5 out of 53
- Weight & Volume : 38 lbs & 2.5 CbFt
- Warranty : 1 Year
