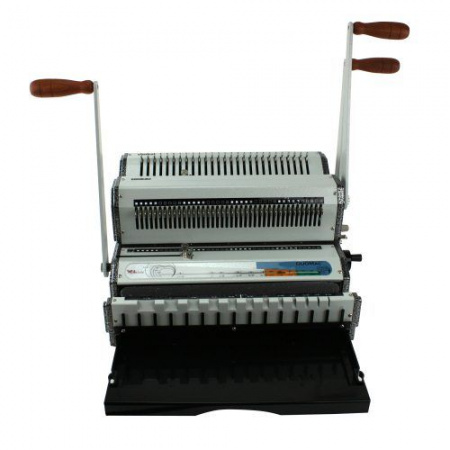

Akiles | DuoMac-321/WireMac-Duo Heavy Duty 2-in-1 Punching and Binding Machine (3:1 and 2:1 Pitch Wire)
Description
Akiles | DuoMac-321/WireMac-Duo Heavy Duty 2-in-1 Punching and Binding Machine (3:1 and 2:1 Pitch Wire)
FOR RELATED PRODUCTS CLICK ON THE RELATED ITEM TAB ABOVEFOR PARTS, SUPPLIES AND ACCESSORIES CLICK ON THE ACCESSORIES TAB ABOVE

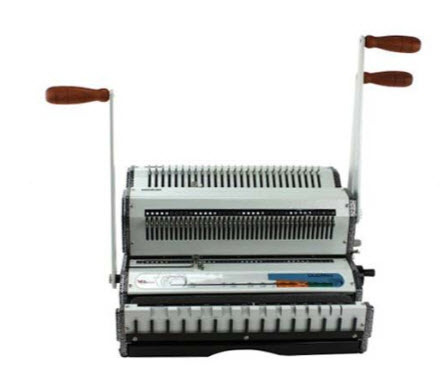

Based on the best selling WireMac (which has the option of 3:1 and 2:1 Model), the WireMac-Duo has both die sets installed in one single unit, with no need to change dies. This new Wire Binding System is all you need to wire punch and bind from 2 sheets to over 200 sheets! The Akiles WireMac Duo Combo Twin Loop Wire Binding Machine is the only machine available on the market that can punch and close both 2:1 and 3:1 pitch wire binding patterns. Built on the same great platform as the best selling Akiles WireMac the WireMac Duo allows you to bind books up to 14" wide and up to 1-1/4" thick.
Product Details
- Punches and Closes both 3:1 AND 2:1 Pitch Wires
- 20 sheets single punching capacity (20 lbs paper)
- 14 Inch width punching capacity with open sides for even wider documents
- All dies can be independently disengaged, to allow the punching of any size document while preventing partial side-end perforation.
- Closing capacity: From 3/16 Inch to 1-1/4 Inch
- All metal construction
- Limited 1 Year Warranty
SPECIFICATIONS

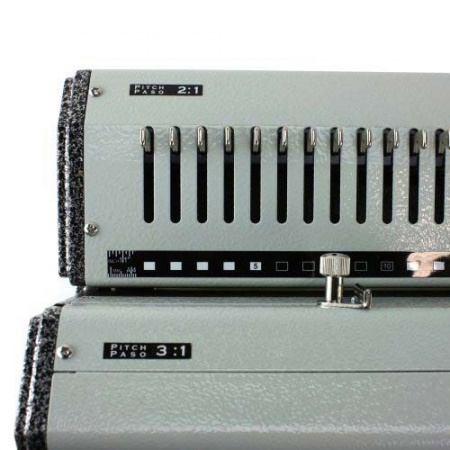

- Punching Pitch: 3:1, 3 holes per 1 Inch / 2:1, 2 holes per 1 Inch
- Disengageable Dies: 40 dies / 27 dies
- Punching Holes: Square 4 mm x 4 mm / Rectangular 4 mm x 5.5 mm
- Binding Capacity: 3/16 Inch - 9/16 Inch / 5/8 - 1-1/4 Inch
- Punching Length: 14 Inch with open throats for longer documents.
- Punching Capacity: 20 sheets of 20 lbs bond paper
- Die Disengagement Pins: For a clean and complete punching with different paper sizes.
- Continuous Punch Guide (3:1 Only) & Open Throats: For punching documents larger than 14 Inch

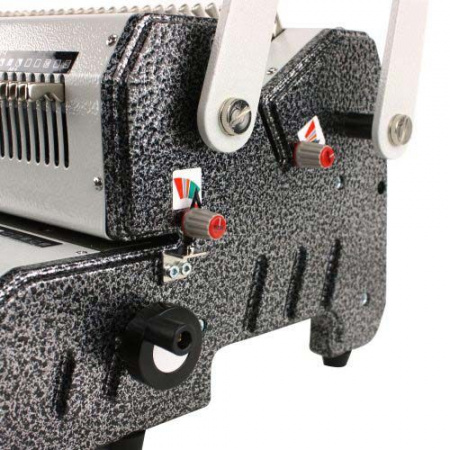

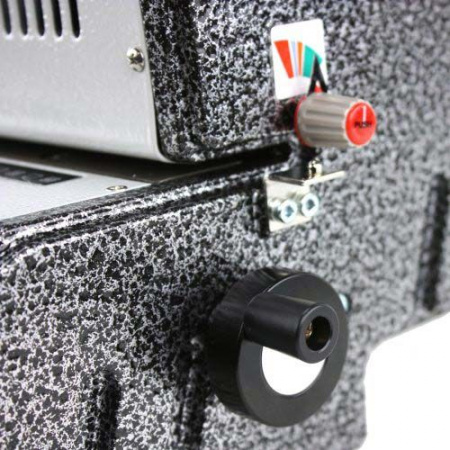

- Depth Margin Controls: Provides the correct punching margin depth needed for all wire sizes and maximizes the document's tear resistance.
- Side Margin Controls: Provides a well-centered punch for all document sizes.
- Master Selector: Determines the correct: Wire Diameter, Closing Position, Depth Margin, Wire Pitch.

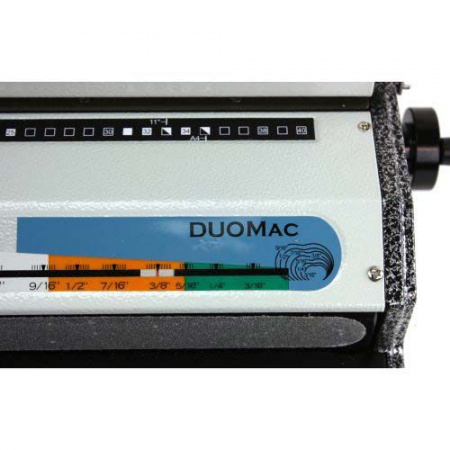

- Diameter Scale: Measures document's thickness in order to select best wire size option.
- Wire Closer Control: Adjusts the wire closer to close wires from 3/16" to 1-1/4"
- Closing Mechanism: Vertical
- Wire Snatch: Holds wire in place for easier inserting of sheets.
- Warranty: 1 Year Manufacturer
- Weight & Cubit Feet : 53 Lbs & 2.22 CbFtc
