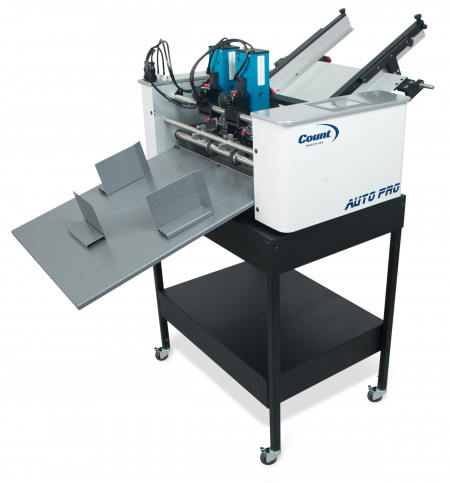

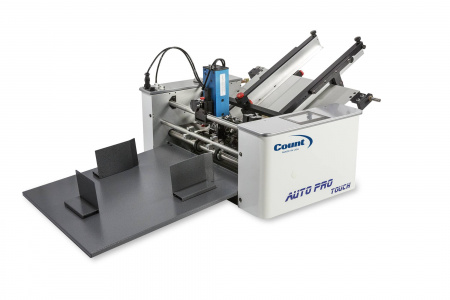

COUNT | AutoPro Touch Numbering and Perf/Scoring Machine (APT)

The COUNT AutoPro Touch Numbering and Perf-Scoring Machine is the solution for numbering and perforating when durability and ease of use are critical. The AutoPro Touch comes standard with two (2) pneumatic numbering heads that vary the pressure of the head and control the striking process for the ultimate in consistency and long life. Number single sheets or crash number carbonless forms up to 10 parts. The AutoPro also features COUNT patented self-inking disposable ink cartridges—no re-inking required.

Our durable and easy-to-use number and perf solution features an automatic bottom friction paper feed and can number single sheets or crash-number carbonless forms, up to 10 parts.

The Auto Pro includes two reliable pneumatic numbering heads with a Gothic font wheel with seven digits, four drop-digits, and multiple repeats. The Auto Pro allows you to vary the pressure of the head and control the striking process for maximum consistency and longevity. It uses Count’s patented, self-inking, disposable ink cartridges so no re-inking is needed for up to 25,000 impressions per cartridge.

FEATURES

• Easily program the AutoPro numbering machine to number, perforate, or score individually or at the same time.
• Uses a reliable bottom friction paper feed system.
• Includes a sheet counter (for both batch and total sheet counting).

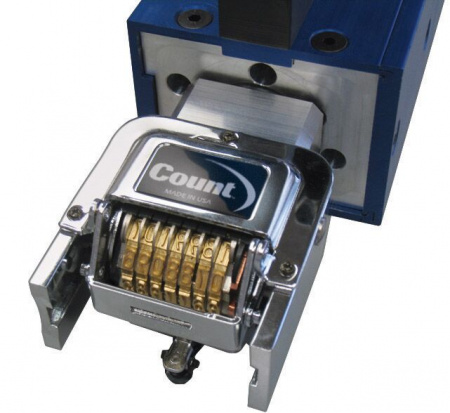

• Includes two (2) reliable pneumatic, Gothic wheel reverse numbering heads–with seven (7) digits, four (4) drop zeros, and multiple repeats.
• Apply for the numbers virtually anywhere on a sheet–from the lead edge, place numbers within 1 mm of the previous number.
• Number single sheets or crash numbers up to a 10-part carbonless form.
• Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.

SPECIFICATIONS

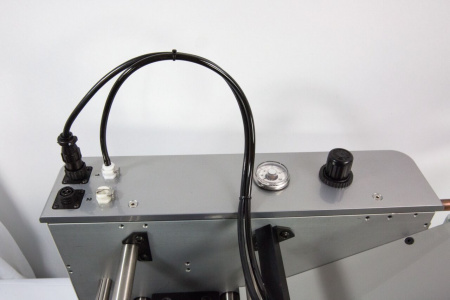

• Paper Feed :Standard bottom friction feed. A standard air compressor can be used for pneumatic heads.
• Max Perf/Score Speed : 12,000 sheets per hour
• Paper Weight Range : 60 - 350 (gsm)
• Max Sheet Size : 24.0 L x 18.0 W in (61.0 x 45.7 cm)
• Min Sheet Size : 4.5 L x 6.0 W in (11.4 x 15.2 cm)
• Max Perf/Score Locations per sheet : 4
• Touch Screen Controls : True
• Product Dimensions : 44.0 L x 32.0 W x 27.0 H IN
• Product Weight : 200 lbs (91 kg)
• Shipping Information: Shipping Dimensions: One (1) crate, 33” x 36” x 26” inches, and Shipping Weight: 234 lbs. Ships from the factory, Zip Code is 46992.
• Electrical: 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A (Check before purchasing)
• Max Numbering Speed : 8,500 sheets per hour
• Numbering Heads : 2-Pneumatic
• Scoring : Standard
