Description

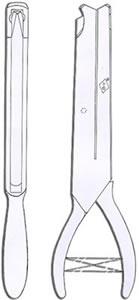

B-v Tool #PC-4 4-1/4 Inch Reach Template Test Punch

The B-V Tool #PC-4 is a long reach One-Hole Punch used to design test-score templates and for programming industrial machinery using plastic control charts. With a 4-1/4" reach, The B-V Tool #PC-4 Hole Punch can accommodate round dies up to 1/4" in hole diameter. Rectangular chart dies are available for the #PC-4. This product is custom made and NOT a stock item: manufacturing lead time is 4 weeks in production before shipping.

SPECIFICATIONS for the B-V #PC-4 -1/4 Inch Reach Template Hole Punch

Maximum Reach: 4-1/4 Inches

Overall Length: 8/3/4 Inches (222.25mm)

Weight: 14oz.

Other Custom Hand Made B-V Punches available on this website:

B-V punches are made to order and are the best quality available. Castings are aircraft-quality alloy, dies are hardened steel, and punches are highly-polished and nickel-plated for long life and attractive appearance. B-V Hole Punches are in continuous use in transportation, quality control, sales promotion, identification card design, agricultural picking, and various industrial applications. Punches are available in six lengths.Hundreds of standard die shapes are available without setup charges. B-V Tool Co.'s specialty is custom logos

#5 Standard 1-1/2" Punch: A heavy-duty utility punch used extensively for premium cards, ticket cancellation and quality control. Max. Reach: 1-1/2" (38.10mm), Overall Length: 5-1/4" (133.35mm), Weight: 7 oz.

#12 Standard Punch 2 Inch Reach : Used for automotive inspection, agriculture counts, and ticket cancellation. Max. Reach: 2" (50.80mm), Overall Length: 6-1/4"(158.75mm), Weight: 8 oz.

#12-L High Leverage Punch: Used for Validating Plastic Identification Cards. Max. Reach: 3/4" (0.80mm), Overall Length: 6-1/4" (158.75mm), Weight: 8oz.

#12-E Standard Punch 3 Inch Reach : A lightweight, long reach punch for quality control and chart work. Max. Reach: 3" (76.20mm), Overall Length: 7-1/2" (190.50mm) Weight: 12-1/2oz.

#13 Punch - Strap-Slot Punch for Plastics : Cuts 9/16" x 1/8" strap-slot holes in plastic identification cards. This punch can also be equipped with larger special purpose dies and multiple characters. e.g. "VOID" - Max. Reach: 3/4" (12.70mm), Overall Length: 5-3/4" (146.05mm), Weight: 7-1/2oz.

Accessories available for B-V Hand Punches

Reservoir Caps: Slide-on nickel-plated cap holds 800 punchings /chits (available for the #5 punch only).

Security Chains : 36 Inch nickel plated steel chain attached for securing a punch to a counter. Comes with attachment fittings for each end.

Finger Rings : Attached to the inside of a punch handle.

Holsters : Black leather holsters with security strap. For use with B-V #5, #12, and #12E punches.

Numbering : Punches can be stamped with numerals or letters for identification.

Accessories are available on this website.
