B-V Tool #5 Standard 1-1/2 Inch Reach Punch
Description

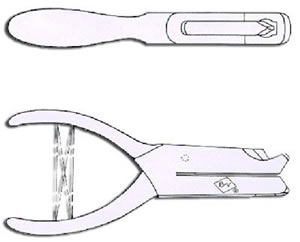

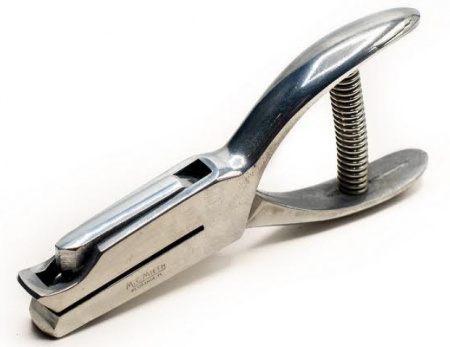

B-V Tool #5 Standard 1-1/2 Inch Reach Hole Punch #5
The B-V Tool #5 One-Hole Punch is designed for premium cards, ticket cancellation, and quality control. With a 1-1/2 Inch reach, the B-V Tool #5 Hole Punch can accommodate round dies up to " Inch in hole diameter. The B-V Tool #5 Hole Punch can punch double characters up to 5/32 Inch. Slide-on reservoirs are available to collect paper chips. Up to 400 custom die shapes are available as well as corporate and logo die shapes.
The price shown for this model is for a single character only. The #5 Punch is also available with Double Characters. Call for a complete listing of multiple and custom die shapes. Each Hole Punch is built to order and requires up to three weeks for fabrication. Specify the punch shape and size in Notes Section when ordering. The Notes can be entered on the second page of the Shopping Cart.
SPECIFICATIONS for B-V #5 1-1/2 Inch Standard Reach Hole Punch
Other Custom Hand Made B-V Punches available on this website :
B-V punches are made to order and are the best quality available. Castings are aircraft-quality alloy, dies are hardened steel, and punches are highly-polished and nickel-plated for long life and attractive appearance. B-V Hole Punches are in continuous use in transportation, quality control, sales promotion, identification card design, agricultural picking, and various industrial applications. Punches are available in six lengths. Hundreds of standard die shapes are available without setup charges. B-V Tool Co.'s specialty is custom logos BR>
#12 Standard Punch " 2 Inch Reach : Used for automotive inspection, agriculture counts, and ticket cancellation. Max. Reach: 2" (50.80mm), Overall Length: 6-1/4"(158.75mm), Weight: 8 oz.
#12-L High Leverage Punch " " Inch Reach: Used for Validating Plastic Identification Cards. Max. Reach: 3/4" (0.80mm), Overall Length: 6-1/4" (158.75mm), Weight: 8oz.
#12-E Standard Punch " 3 Inch Reach : A lightweight, long reach punch for quality control and chart work. Max. Reach: 3" (76.20mm), Overall Length: 7-1/2" (190.50mm) Weight: 12-1/2oz.
#13 Punch - Strap-Slot Punch for Plastics : Cuts 9/16" x 1/8" strap-slot holes in plastic identification cards. This punch can also be equipped with larger special purpose dies and multiple characters. e.g. "VOID" - Max. Reach: 3/4" (12.70mm), Overall Length: 5-3/4" (146.05mm), Weight: 7-1/2oz.
PC-4 Template Punch - 4-1/4 Inch Reach:- A light long-reach punch used to design test-score templates and for programming industrial machinery using plastic control charts. Max. Reach: 4-1/4" (107.95mm), Overall Length 8-3/4" (222.25mm), Weight: 14 oz.
Accessories available for B-V Hand Punches
Accessories are available on this website.
COVID Supply Chain Warning Due to global challenges including COVID and Climate Change affecting all businesses, prices are subject to change because of supply chain disruptions, shipping delays, labor shortages, material shortages, and inflationary pressures. If you place an order, and there is an increase in a price from that shown, we will alert you before processing the order.
Specifications
| Manufacturer Part #: | 5 |
