Beech Compact Battery Operated Work Positioner PS-2480B 80" Lift 1000 Lb. Capacity 24 Inch. W

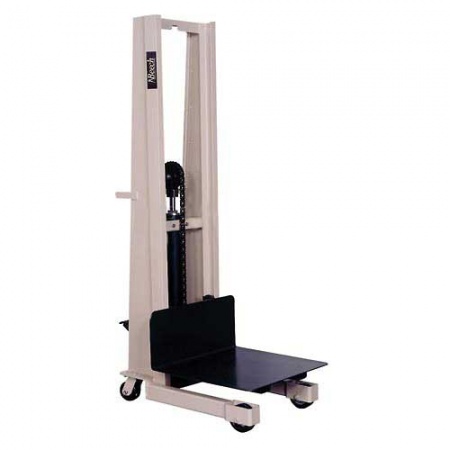

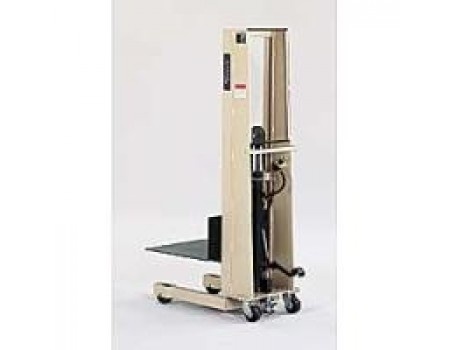

Model PS-2480B Hydraulic Platform Stacker
Engineered for use as a stacker or a work positioner, our Hydraulic Platform Stacker features the outstanding quality you have come to expect from Beech Design & Manufacturing.
- The Hydraulic Stacker is available in lift heights up to 80", and can be ordered with a foot pedal or battery-powered lift. The stacker is also available in two standard sizes for narrow or standard aisles.
COMPACT BATTERY OPERATED WORK POSITIONER
Take the Work out of Lifting!
This Stacker comes equipped with powered lifting hydraulics for precise load positioning. Lift is easily controlled with a push button remote with 10' cord. Heavy duty deep-cycle battery is easily recharged via the integral 120V 10 amp charger. Standard features include oversized hydraulic ram, integral overload relief valve and heavy duty 9000 lb. yield roller lifting chain. Durable steel mast features an acrylic safety shield that provides an unobstructed view for the operator. Lifting platform features welded and unitized construction for strength. Rolls easily on phenolic load and steer wheels with roller bearing and grease fittings. Stackers are equipped with a floor lock for stationary positioning. 2 Year Limited Warranty.
FEATURES
- 1000-pound capacity.
- Lift heights from 58" and 80".
- Beech "in-house" manufactured hydraulic rams and pedal pumps are oversized for years of trouble-free operation.
- Welded, unitized-construction platform available in standard sizes of 24" x 24" or 30" x 32".
- Floor lock is standard.
- Roller chain with over 9000 lb. yield.
- 2" x 5" load wheels, 2" x 4" steering casters, phenolic wheels with roller bearings and grease fittings are standard.
- Safety screen provides operator with unobstructed vision.
- Battery Powered Lift models also include a heavy duty deep-cycle battery and a 10 amp automatic built-in charger.

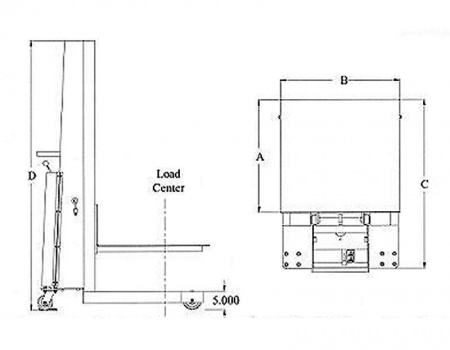

SPECIFICATIONS
- LENGTH INCHES :39-1/4
- WIDTH INCHES :24
- HEIGHT INCHES : 92
- CAPACITY LBS : 1000
- COLOR FINISH : Tan
- ASSEMBLY : Assembled
- BATTERY : 12V
- CHARGER : Integral 10 amp
- BRAND : Beech Engineering
- CONSTRUCTION : Steel
- LIFT SPEED FEET PER MINUTE : 20
- LOAD CENTER INCHES : 15
- LOWERED HEIGHT INCHES : 5-1/4
- MANUFACTURERS PART NUMBER : PS-2480B
- PLATFORM DIMENSIONS : 30"L x 32"W
- PLATFORM LENGTH INCHES : 24
- PLATFORM WIDTH INCHES : 24
- POWER : Battery Operated
- RAISED HEIGHT INCHES : 80
- REFERENCE # : PS-2480B
- TRUCK STYLE : Platform
- WEIGHT LBS : 440
- WHEEL DIAMETER INCHES : Load = 5; Steer = 4
- WHEEL TYPE : Phenolic, 2 Swivel, 2 Rigid
Specifications
| Manufacturer Part #: | PS-2480B |
| Dimensions (LxWxH): | 40.00in. x 24.00in. x 92.00in. |
