Beech Compact Foot Pedal Operated Work Positioner PS-2470 70" Lift 1000 Lb. Capacity 24 Inch. W

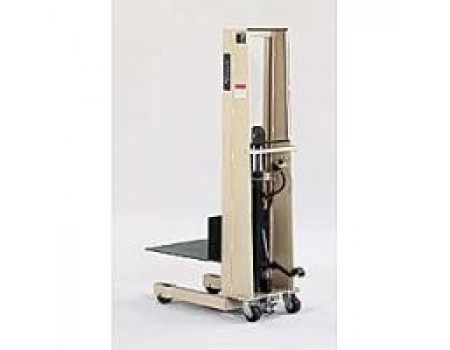

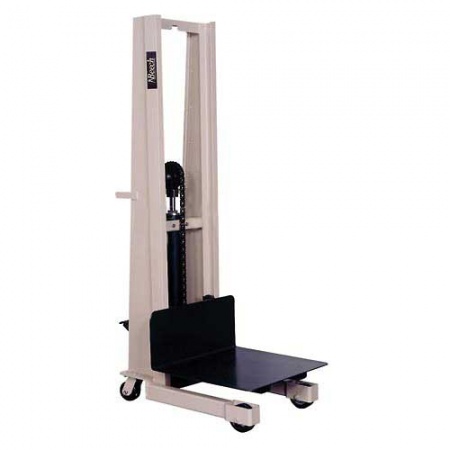

Model PS-2470 Hydraulic Platform Stacker
Engineered for use as a stacker or a work positioner, our Hydraulic Platform Stacker features the outstanding quality you have come to expect from Beech Design & Manufacturing.
- The Hydraulic Stacker is available in lift heights up to 80", and can be ordered with a foot pedal or battery-powered lift. The stacker is also available in two standard sizes for narrow or standard aisles.
COMPACT FOOT PEDAL OPERATED LIFT TRUCK
Lift Truck Makes Light Work out of Heavy Loads!
Perfect for moving heavy loads throughout the workplace, this Stacker features a durable steel mast with an acrylic safety shield that provides an unobstructed view for the operator. Lifting platform features welded and unitized construction for strength. Rolls easily on phenolic load and steer wheels with roller bearing and grease fittings. Stacker is equipped with a floor lock for stationary positioning. 2 Year Limited Warranty.
Foot Pedal Operated Lift Truck features high-quality hydraulics with an oversized hydraulic ram and integral overload relief valve for reliability. Lift truck is engineered with a heavy duty roller lifting chain that is rated for over 9000 lbs. of yield.
FEATURES
- 1000-pound capacity.
- Lift heights from 58" and 80".
- Beech "in-house" manufactured hydraulic rams and pedal pumps are oversized for years of trouble-free operation.
- Welded, unitized-construction platform available in standard sizes of 24" x 24" or 30" x 32".
- Floor lock is standard.
- Roller chain with over 9000 lb. yield.
- 2" x 5" load wheels, 2" x 4" steering casters, phenolic wheels with roller bearings and grease fittings are standard.
- Safety screen provides operator with unobstructed vision.
- Battery Powered Lift models also include a heavy duty deep-cycle battery and a 10 amp automatic built-in charger.

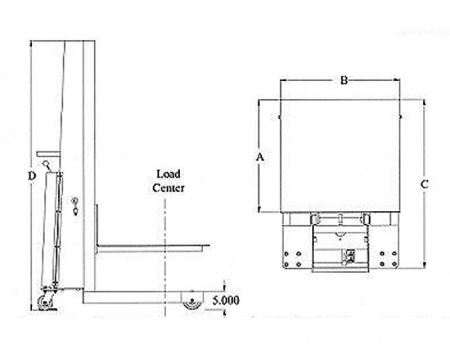

SPECIFICATIONS
- LENGTH INCHES :35-3/4
- WIDTH INCHES :24
- HEIGHT INCHES : 82
- CAPACITY LBS : 1000
- COLOR FINISH : Tan
- ASSEMBLY : Assembled
- BRAND : Beech Engineering
- CONSTRUCTION : Steel
- LOAD CENTER INCHES : 15
- LOWERED HEIGHT INCHES : 5-1/4
- MANUFACTURERS PART NUMBER : PS-2470
- PLATFORM DIMENSIONS : 24"L x 24"W
- PLATFORM LENGTH INCHES : 24
- PLATFORM WIDTH INCHES : 24
- POWER : Foot Operated
- RAISED HEIGHT INCHES : 70
- REFERENCE # : PS2470
- TRUCK STYLE : Platform
- WEIGHT LBS : 297
- WHEEL DIAMETER INCHES : Load = 5; Steer = 4
- WHEEL TYPE : Phenolic, 2 Swivel, 2 Rigid
Specifications
| Manufacturer Part #: | PS-2470 |
| Dimensions (LxWxH): | 36.00in. x 24.00in. x 82.00in. |
