Description

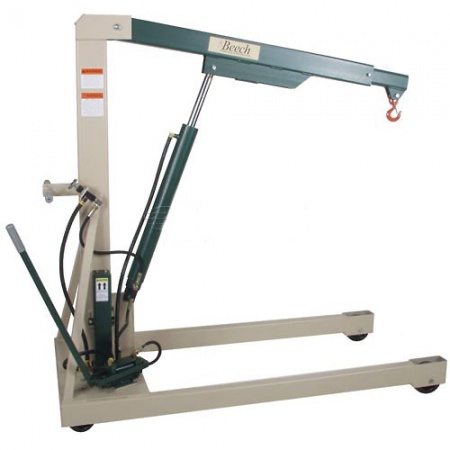

Beech Engineering Premium Hydraulic Floor Crane B-3000 3000 Lb. Capacity 35 Inch. W

Featuring the highest capacity of any of our floor or straddle cranes, the B-3000 can carry up to 3,000 pounds safely and easily.
- With a lift height of 105", while weighing only 525 pounds, the B-3000 is ready for those heavyweight lifting jobs.

This heavy-duty straddle floor crane offers an economical way to lift machinery, tools and equipment safely and easily. Portable crane is equipped with an industrial-grade hydraulic pump with an overload relief valve to prevent dangerous overloading. Each machine is factory proof tested to 150% of capacity. Needle valve offers controlled lowering for smooth, controlled operation. Crane includes an alloy steel safety swivel hook and rolls easily on roller bearing phenolic wheels (2 swivel, 2 rigid). 2 Year Limited Warranty.

FEATURES

• 3000-pound capacity.
• Lift height of over 105" at full capacity.
• Safety Swivel Hook is attached directly to extension boom.
• For ease of movement, oversized roller bearing phenolic 8" diameter x 3" wide load wheels and 6" diameter x 2" wide steering casters are standard.
• Optional wheels available.
• Optional floor lock available.
• Safety by-pass relief valve is standard to prevent dangerous overloading.
• Each machine is factory proof tested to 150% capacity.
• 2-year warranty on entire machine, 5 year on frame weldment.
• Exceeds ASME PALD-12 and ANSI Z535 Standards.
• Weight 525 pounds.

SPECIFICATIONS

• LENGTH INCHES :79 Overall; 64-1/2 within Legs
• WIDTH INCHES :35 Overall; 24-1/2 within Legs
• HEIGHT INCHES : 76
• COLOR FINISH : Tan
• ASSEMBLY : Assembled
• BOOM HEIGHT INCHES : 25 to 127
• BOOM LENGTH INCHES : 63-3/4 to 95-1/2
• BRAND : Beech Engineering
• CONSTRUCTION : Steel
• EXTENDED CAPACITY LBS. :500
• LOAD WHEEL DIAMETER INCHES :8
• MANUFACTURERS PART NUMBER : B-3000
• RETRACTED CAPACITY LBS. : 3000
• STEER WHEEL DIAMETER INCHES : 6
• WEIGHT LBS : 525
• WHEEL TYPE : Phenolic
