Beech Hydraulic Fork Stackers FS-3076 30" Forks X 76" Height 1000 Lb. Capacity (Foot Lift)
Description
Beech Hydraulic Fork Stackers FS-3076 30" Forks X 76" Height 1000 Lb. Capacity (Foot Lift)

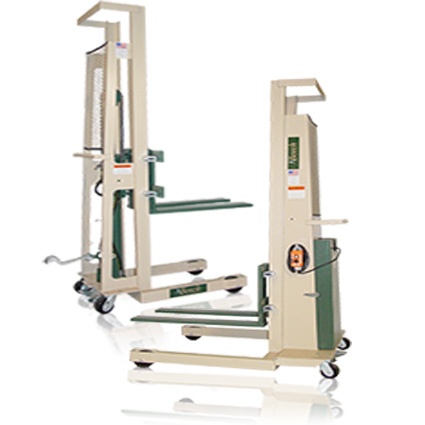

Model FS-3076 Hydraulic Fork Stacker
Designed to handle loads up to 1,000 pounds, our Hydraulic Fork Stacker is manufactured with the rugged quality typical of all Beech Design & Manufacturing equipment.
- Available in lift heights up to 76", the Hydraulic Fork Stacker is available with a foot pedal or battery-powered lift.
FEATURES
- 1000-pound capacity.
- Lift heights of 56", 66" and 76". Forks reach completely to the floor when lowered.
- Beech "in-house" manufactured hydraulic rams and pedal pumps are oversized for years of trouble-free operation.
- Forks are heavy duty 4" wide 1" thick solid steel and adjustable from 8" to 26-½" O.D.
- Roller chain with over 9000 lb. yield.
- Floor lock is standard.
- 2" wide phenolic wheels are standard, optional wheels available.
- Safety shield provides operator with unobstructed vision.
- Battery powered lift models also include a heavy-duty deep-cycle battery and a 10 amp automatic built-in charger.

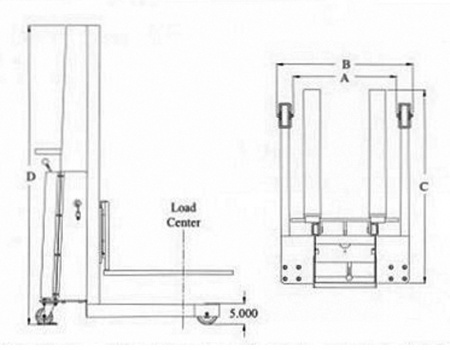

SPECIFICATIONS
- FORK LENGTH INCHES :30
- LEGS ID DIM. A :25
- LEGS OD DIM. B : 33
- LENGTH DIM. C : 43.25
- HEIGHT DIM. D : 92
- LOAD CENTER INCHES : 18
- FORK HEIGHT RANG INCHES : 1 - 76
- WEIGHT LBS : 419
- POWER : Foot Pedal Lift
- COLOR FINISH : Tan
- ASSEMBLY : Assembled
- BRAND : Beech Engineering
- CONSTRUCTION : Steel
- MANUFACTURERS PART NUMBER : FS-3076
