Description

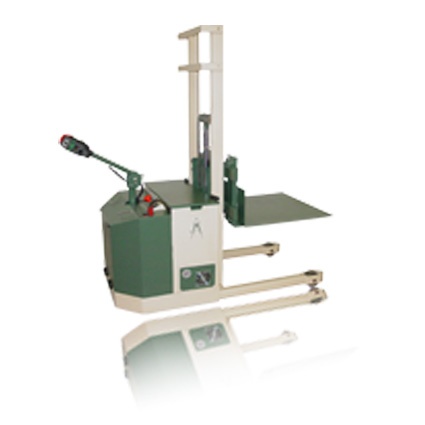

Beech Power Driven Platform Stackers PW25-10042 42" Forks X 100" Height 2500 Lb. Capacity
Model PW25-10042 Power Driven Platform Stackers
Manufactured for safety, ergonomics and durability, Beech Power Driven Platform Stackers feature quality and standard features that are second to none.
Our Power Driven Stackers also provide true ease of ownership - just check the battery's water level, grease the wheels and plug in the charger. Beech Power Driven Stackers also feature the Beech Two-Year Plus Warranty guaranteeing all components except the battery. Beech stocks the correct replacement parts should they be needed.
Featuring our patent-pending 5th Wheel Suspension Drive, Beech Power Driven Platform Stackers maintain constant traction and steering effort regardless of the weight of the load. The suspension drive floats up and down according to floor conditions, while the four loadbearing wheels carry the load so that even as the drive floats up and down, traction remains constant. The end result is that the driver will notice no difference in steering effort between an empty machine and a fully loaded one.
FEATURES
- Dampens shock of traveling over uneven terrain
- Will steer the same w/ 500 or 5,000 pounds
- Dual Butterfly Speed control with infinitely variable forward and reverse speeds
- Fork raise and lower buttons on handle for greatest ease of use
- Safety Belly Button Reversing Switch to protect operator
- Key Lock Switch disables truck, preventing unauthorized use
- Deadman Brake will activate if handle is released for any reason, applying brake and turning off power to the drive motor
- Patent Pending 5th wheel parallelogram suspension drive
- All welded steel frame construction
- ITA type elevator with roller bearings
- Hot extruded track sections for straighter, stronger masts
- Wedge shaped outrigger load wheel housings for easy pallet separation
- Skid-free single load wheel on each outrigger for effortless turning
- Exceed industry standard ITA class II hook forks, ANSI B56.11.4 and ISO
- Ground, plated, hardened and honed Beech manufactured lift cylinders
SPECIFICATIONS
- FORK LENGTH INCHES :42
- LEGS ID DIM. C :42
- LEGS OD DIM. D : 50
- OVERALL LENGTH DIM. E : 54
- OVERALL HEIGHT DIM. B : 71
- LOAD CENTER INCHES : 24
- FORK HEIGHT RANG INCHES : 1.5 - 100
- BRAND : Beech Engineering
- MANUFACTURERS PART NUMBER : PW25-10042
