Description
Beech Reversed Telescopic Boom Floor Crane B-1000CW 1000 Lb. Capacity 31 Inch. W
Model B-1000CW 1,000 Pound Counterweighted Crane
The Model B-1000CW Hydraulic Floor Crane is designed without front legs, thus eliminating interference with load lifting or equipment.
- The B-1000CW includes the counterweight and extension boom at no additional cost.
REVERSED BOOM FLOOR CRANE

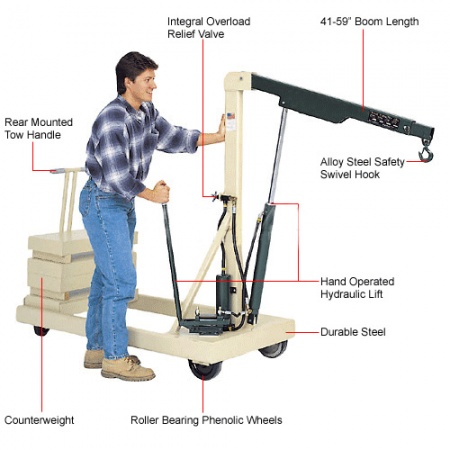

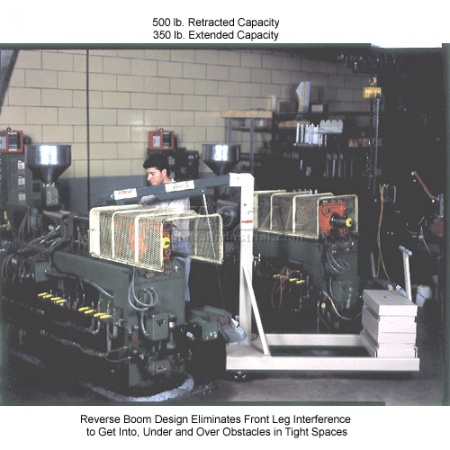

Reversed boom design eliminates front leg interference, allowing crane to get into, under and over obstacles in tight spaces. Provides safe, easy lifting in production areas and warehouse with simple hand operated hydraulic lift. Integral overload relief valve. Needle valve regulates lowering speed. Alloy steel safety swivel hook and counterweight are included. Highly maneuverable with a rear mounted tow handle and roller bearing phenolic wheels. Factory tested to 150% of capacity and exceeds ASME PALD-12 and ANSI Z-535 standards. 2 Year Limited Warranty.
Optional Power Lift (for 1000 & 2000 Cap. Lbs. models only) is available to control lifting operation, and includes 12V deep cycle battery, automatic charger and pendant control with 20' cord.
FEATURES
- 1000-pound capacity.
- Lift height of over 90" at full capacity.
- Safety Swivel Hook is attached directly to extension boom.
- For ease of movement, our crane has phenolic wheels with roller bearings 8" diameter x 2" wide load wheels and 5" diameter x 2" wide steering casters.
- Optional wheels and floor lock available.
- Safety by-pass relief valve is standard to prevent dangerous overloading.
- Each machine is factory proof tested to 150% of capacity.
- 2-year warranty on entire machine, 5 year on frame weldment.
- Exceeds ASME PALD-12 and ANSI Z535 Standards.
- Weight 1615 pounds (Counterweight = 1200 pounds).
"The Beech Advantage" is a counterweighted crane with no legs out from to interfere with load lifting or placement.
The Beech B-1000CW crane comes complete with counterweight and extension boom at no additional cost.
SPECIFICATIONS
- LENGTH INCHES :61
- WIDTH INCHES :31
- HEIGHT INCHES : 65
- COLOR FINISH : Tan
- ASSEMBLY : Assembled
- BOOM HEIGHT INCHES : 6 to 104
- BOOM LENGTH INCHES : 46 to 64
- BRAND : Beech Engineering
- CONSTRUCTION : Steel
- EXTENDED CAPACITY LBS. :600
- LOAD WHEEL DIAMETER INCHES :8
- MANUFACTURERS PART NUMBER : B1000CW
- RETRACTED CAPACITY LBS. : 1000
- STEER WHEEL DIAMETER INCHES : 5
- WEIGHT LBS : 1615
Specifications
| Manufacturer Part #: | B-1000CW |
| Dimensions (LxWxH): | 63.00in. x 31.00in. x 64.00in. |
