Description

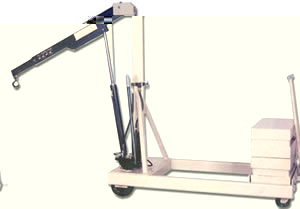

Beech Reversed Telescopic Boom Floor Crane B-1500CW 1500 Lb. Capacity 31 Inch. W

The Model B-1500CW Hydraulic Floor Crane is designed without front legs, thus eliminating interference with load lifting or equipment.
- The B-1500CW includes the counterweight and extension boom at no additional cost.

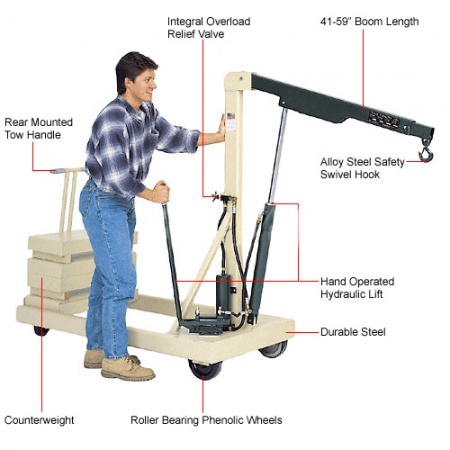

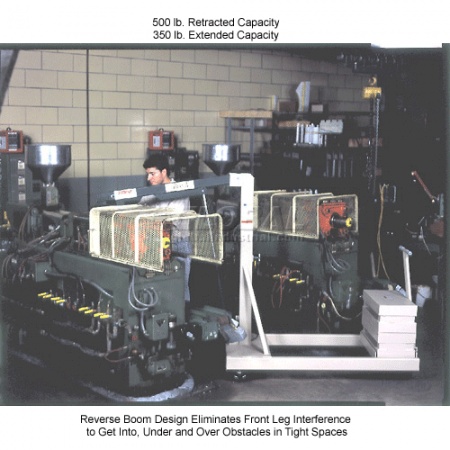

Reversed boom design eliminates front leg interference, allowing crane to get into, under and over obstacles in tight spaces. Provides safe, easy lifting in production areas and warehouse with simple hand operated hydraulic lift. Integral overload relief valve. Needle valve regulates lowering speed. Alloy steel safety swivel hook and counterweight are included. Highly maneuverable with a rear mounted tow handle and roller bearing phenolic wheels. Factory tested to 150% of capacity and exceeds ASME PALD-12 and ANSI Z-535 standards. 2 Year Limited Warranty.

Optional Power Lift (for 1000 & 2000 Cap. Lbs. models only) is available to control lifting operation, and includes 12V deep cycle battery, automatic charger and pendant control with 20' cord.

FEATURES

• 1500-pound capacity.
• Standard oversize roller bearing phenolic 6" x 2" load wheels and 4" x 2" Steering Casters provide ease of movement
• Each machine is factory proof tested to 150% of load
• Safety Swivel Hook is attached directly to boom
• Safety by-pass relief valve is standard to prevent dangerous overloading
• 2-year warranty on entire machine, 5 year on frame weldment.
• Exceeds ASME PALD-12 and ANSI Z535 Standards.
• Weight 2550 pounds

"The Beech Advantage" is a counterweighted crane with no legs out from to interfere with load lifting or placement.

SPECIFICATIONS

• Pump Type :Two Speed Manual
• COLOR FINISH : Tan
• ASSEMBLY : Assembled
• CONSTRUCTION : Steel
• MANUFACTURERS PART NUMBER : B1500CW
• RETRACTED CAPACITY LBS. : 1500
• WEIGHT LBS : 2550
