BestPack MBD22 Semi-Automatic Adjustable Case Sealer, Bottom Belt Drive, 3" Tape Head
Call Toll Free: 877.336.6877 for Pricing
Availability
Online
In Store
Same Day
Description

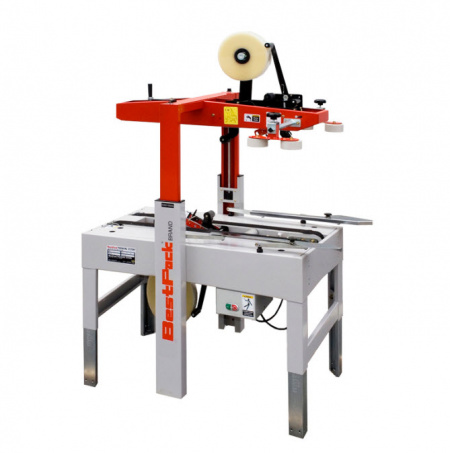

BestPack MBD22 Semi-Automatic Adjustable Case Sealer, Bottom Belt Drive, 3" Tape Head
The BestPack MBD Series is an operator-fed, adjustable carton sealer designed to efficiently fulfill light to the heavy-duty uniform top and bottom sealing carton closure application needs. The two bottom belts are powered by a 110V UL-approved electric motor. The MBD Series is also designed with four adjustable legs for quick and easy height modification to suit the needs of your production lines. Dual telescopic masts allow for an extra 4 inch carton height extension on the upper assembly.
Our MBD line incorporates our exclusive 2 inch or 3 inch pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food-grade 304 stainless steel for 21 CFR 110 compliance.
FEATURES
- Two Bottom Belt Drive
- Telescopic Mast Design
- Extra 4 Inches Carton Height Adjustment Available on Upper Assembly
- Adjustable Bed Height for: MBD22-2 & MBD22-3 - 23.5 Inches to 30.0 Inches
- Upper Side Compression Unit
- Height Adjustment Handle can be Mounted on Either Side of the Carton Sealer
- Guide Rail Centering Mechanism
- Tape Roll Lengths: 1,000 yd., 1,500 yd., 2,000 yd.
- Heavy Duty 2mm CNC Cut and Welded Frame Including Upper Welded Legs
- Sealer Available in 2 Inches or 3 Inches Tape Heads
- Exclusive 2 Inches or 3 Inches Pop-out Pressure
- Sensitive “High Speed” Tape Head with Patented Tab Adjustment and Noise Reduction Arm
- The Electrical On/Off Box can be Mounted on Either Side of the Sealer
DEMO VIDEO
SPECIFICATIONS
- Min Box Weight : 0.5 lbs

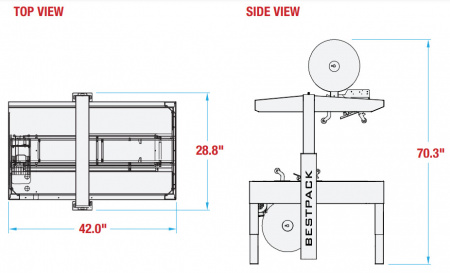

- Machine Length : 42 in
- Max Box Length : Unlimited
- Machine Height : 70-5/16 in
- Cord Length : 7 ft
- Weight : 310 lbs.
- Tape Width : 2 in
- Machine Width : 28-13/16 in
- Min Box Width : 6-1/2 in
- Min Box Height : 3 in
- Max Box Height : 20-5/16 in
- Max Box Width : 20 in
- Min Box Length : 6 in
- Conveyor Height Adjustment : 23-1/2 - 30"
Product Details
- Assembly Required : No
- Box Belt Speed : 80 ft.Per Minute
- Operating Speed : 20 Boxes/Minute
- Wattage : 165 W
- Manufacturers Part Number : MBD22-2
- Brand : BestPack
- Type : Bottom Belt Drive
- Color : Gray
- Series : MBD22
- Amperage : 1.5 A
- Hertz : 60 Hz
- Voltage : 110 V
- Package Quantity : 1
- Shipping Information: Shipping Dimensions 46x33x42 Inches | Shipping Weight: 310 lbs.
- Description : Manual Adjustable Case Sealer
OPTIONS
- Spare Parts Kit
- Locking Heavy-Duty Casters
- Interlock Safety Gates
- Food Grade 304 Stainless Steel
- Infeed/Exit Conveyor w/ Unique L-Bracket Stabilizer
