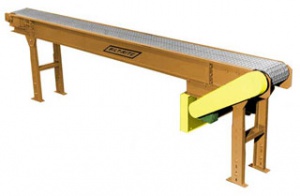

Bilt-Rite Horizontal Wire Mesh Belt Conveyor MH-400

The MH-400 conveyor has standard belts that extend approximately 1/2 inch above the frame rails and are made from galvanized steel, driven by multiple cast iron sprockets. The H-style supports are located at every bed joint and at conveyor ends, 31" to 36" to top of belt. The available options for this model are: longer or shorter units, stainless steel belts, other fixed/variable speed drives, and they are also available in curved sections. Please call for pricing and availability.

SPECIFICATIONS:

Belts: 12" to 36" wide. Flat wire 1/2" x 1" galvanized steel open mesh.

Beds: Roller bed frame available 18" thru 42" overall width. 1.9" Dia. x 16 Ga. rolls set high on 6" centers. Longitudinal runners optional.

Supports: "H" type, adjustable from 31" to 36" to top of belt.

Drive: 1/3 HP TEFC motor-reducer with fully enclosed guard. 115 V/ 1 PH/60C or 230-460 V / 3 pH/60C (specify).

Speed: Single direction at 50 feet per minute constant. Other speeds and Optional Vari-Speed Drives also available

Pulleys: 6" diameter cast iron drive sprockets with 4 1/2" diameter tail pulley.

Finish: Bilt-Rite blue.
