Description

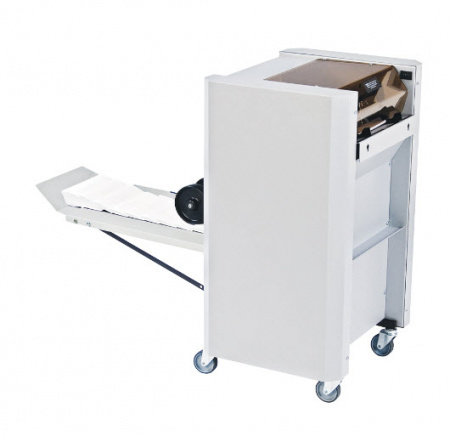

MBM Sprint 3000 Economical Bookletmaker (BO0851)

The MBM Sprint 3000 bookletmaker is an affordable and mobile option in the Sprint bookletmaking line. In one easy operation, this machine jogs, staples, and folds documents. The Sprint 2000 has a 10 sheet on-line capacity and a 25 sheet off-line capacity for making up to 100 page booklets. It has a variable speed of up to 1,500 booklets per hour. The side guides are set one inch wider than the paper to speed the loading process. While one booklet is folding the next is stapled making for very efficient production. Compatible with Maxxum 6 and 10 bin models and other popular vertical collators.

The MBM Sprint 3000 jogs staples and folds in one simple operation. The Sprint 3000 has quick and easy set up and can be used in conjunction with the FC 10 collator and face trimmer. The Sprint 3000 has 2 staple heads that can be positioned in 4 spots. The Sprint 3000 also features a powered exit conveyer.

SPECIFICATIONS

• Speed : 1500 Sets/hour
• Max. Cutting Height : 50 sheets of 80 GSM bond
• Book Sizes : 5 1/2 x 8 Inch to 12 x 18 Inch
• Dimensions :
• Width: 22 1/2 Inch
• Height: 24 1/2 Inch
• Length: 19 1/4 Inch (Conveyor stored)
• Length: 40 Inch (Conveyor in use)
• Weight : 185.2 Lbs.
• Power :
• 110v 60Hz
• Consumption approx. 180 Watts
• Fuse: Mains inlet - 10 amp 110 V.
• 24 Vdc power supply - 2.5 amp 110 V

Safety Features

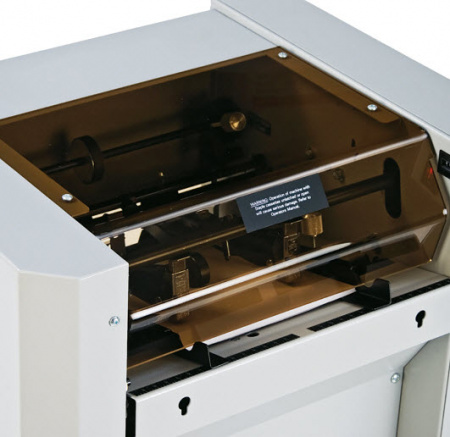

• Transparent safety access cover—machine will not operate with cover in open position

Characteristics

• Jogs, staples, and folds in one operation
• Quick and easy set-up and adjustment
• Variable speed produces booklets up to 100 pages (off-line)*
• 2 stapling heads, 4 stapling positions
• Uses 210-staple sticks

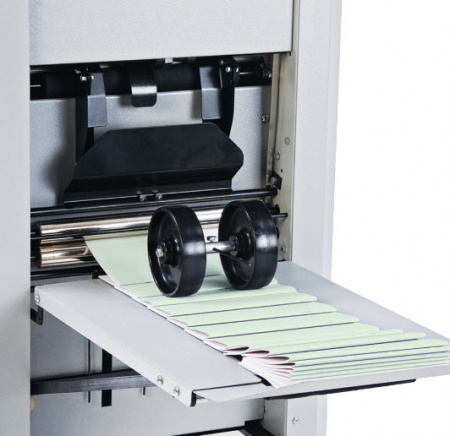

• Powered exit conveyor
• Transparent safety access cover—machine will not operate with cover in open position
• Mounted on heavy-duty casters
• Optional interface for on-line use with the MBM FC 10
• Optional face trimmer

Warranty

• 1-year limited warranty, excluding wearables
