Description

COUNT - PerfMaster Sprint Score and Perforating Machine - PMS

Need Parts for the Perfmaster Sprint? We have them.
See Below. All Parts are in Stock

Use the link below if you need it to make sure you are ordering the correct part name and part number or if you do not see the Part listed below on this page.

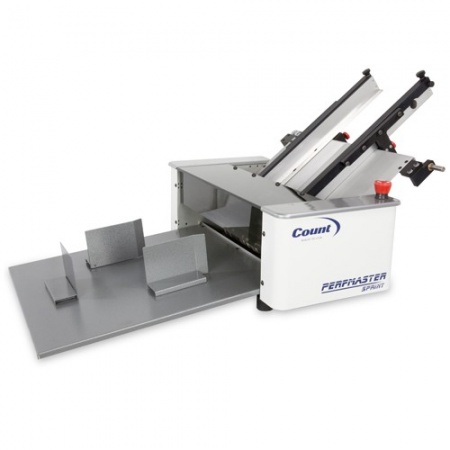

The COUNT PerfMaster Sprint is a simple-to-use top-feed perforating and scoring solution that gets the job done quickly with speeds of up to 12,000 sheets (8-1/2" x 11") per hour.

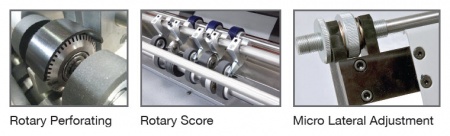

You can easily set up for a wide range of paper stocks and switch from perforating to scoring in seconds. You have 5 different interchangeable perf wheel options, including 2 microperf options. Top friction feed allows you to produce thousands of sheets per hour.

FEATURES

• Removable receiving tray and side rails make for easy mobility and tabletop use.
• Quickly change from perforating to scoring in just seconds.
• 18" wide paper feed capacity.
• Easily set Perf/Score depth control.
• Feeds single sheets, coated stock and multi-part open or glued edges.
• Magnetic paper stops on the receiving tray can be easily adjusted depending on the size of the paper.

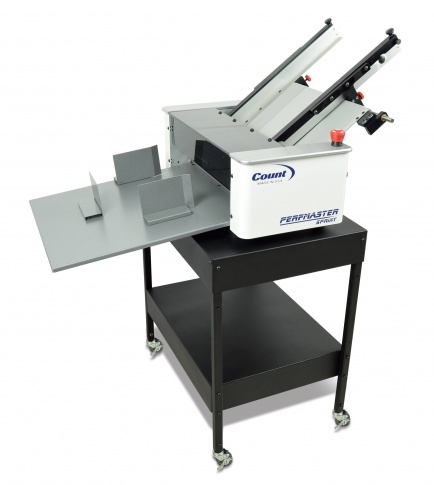

• Optional support stand available for easy mobility.
• Side rails on the paper feed table are easily adjustable for various paper sizes.
• Red emergency stop switch for easy job cancellation.
• Clear top lid provides visibility and easy internal access.

SPECIFICATIONS

• Model No :PMS
• Weight :100 lbs (45 kg)
• Max Linear Perf/Score Speed : 12,000
• Paper Weight Range : 60 - 350
• Dimensions : 44.0 L x 32.0 W x 32.0 H in / (111.8 x 81.3 x 81.3 cm)
• Shipping Information: Shipping Dimensions: 33.0 L x 36.0 W x 26.0 H inches | Shipping Weight: 183 lbs.
• Max Sheet Size : 24.0 L x 18.0 W in (61.0 x 45.7 cm)
• Min Sheet Size : 4.0 L x 4.0 W in (10.2 x 10.2 cm)
• Electrical: 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A

Shipping information: Shipping Weight: 183 lbs. Shipping Dimensions: 33 x 36 x 26 inches.

BLADE TYPES

Standard-Perf Wheel:

The perf wheel that comes standard with all COUNTâ„¢ machines has 33 teeth, or 9 cuts per inch.

blade options available:
Standard-Perf options:

• 5-1= 18 teeth or 5 cuts per inch
• 9-1= 33 teeth or 9 cuts per inch
• 12-1= 45 teeth or 12 cuts per inch

Micro-Perf Wheels:

Comes in as little as 185 teeth or 96 cuts per inch.

blade options available:
Micro-Perf options:

• 26-1= 96 teeth or 26 cuts per inch
• 50-1= 185 teeth or 50 cuts per inch
• *9-1 blade comes as the standard blade with purchase. Other blades are purchased separately.

If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com
