Akiles | CoilMac-EX 4:1 Round Hole Electric Coil Binding Machine w/ Electric Inserter (ACM-EX41+)
This Item Ships For Free
Availability
Online
In Store
Same Day
Description
Akiles | CoilMac-EX 4:1 Round Hole Electric Coil Binding Machine w/ Electric Inserter (ACM-EX41+)
FOR RELATED PRODUCTS CLICK ON THE RELATED ITEM TAB ABOVEFOR PARTS, SUPPLIES AND ACCESSORIES CLICK ON THE ACCESSORIES TAB ABOVE
This Akiles CoilMac-EX 4:1 Round Hole Electric Coil Binding Machine is an all-in-one electric coil punch and electric inserter. With its heavy-duty punch motor, built-in electric coil inserter and complete system of functions, this Akiles CoilMac-EX makes coil binding fast, easy, convenient and professional. This heavy duty all-metal constructed Akiles CoilMac-EX can punch upto 25 sheets of 20lb paper , and has a 13.5" punch throat with open ends for longer documents and continuous punch guide. This Akiles CoilMac-EX 4:1 Round Hole Electric Coil Binding Machine is backed by a 1-Year Manufacturer's Warranty.
Product Details

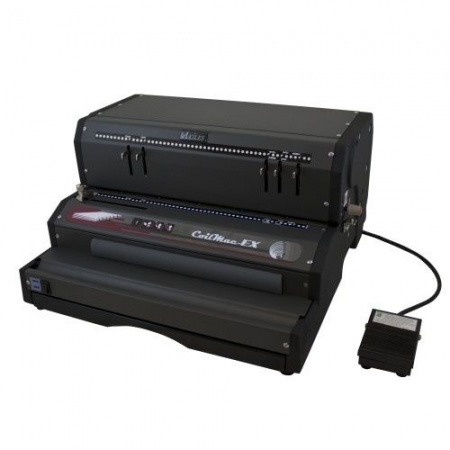

- All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
- Extended Single Punching Length (13 Inches ): With open ends & continuous punch guide to easily punch documents of any length (up to 26 Inches ).
- High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6 mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
- Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.

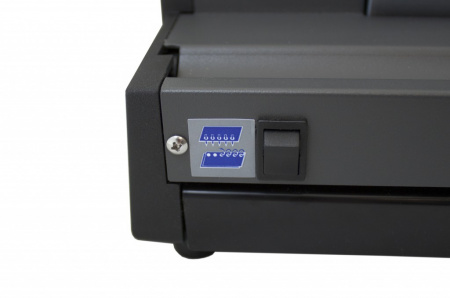

- Electric Reverse (Anti-Jam) Function: For trouble-free punching.

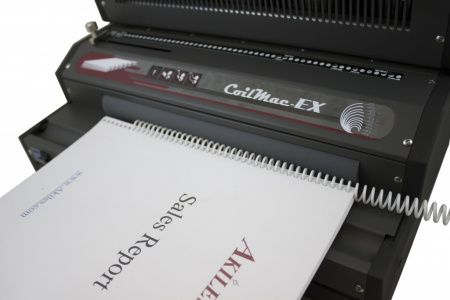

- Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8 Inches EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
- Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
- U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.

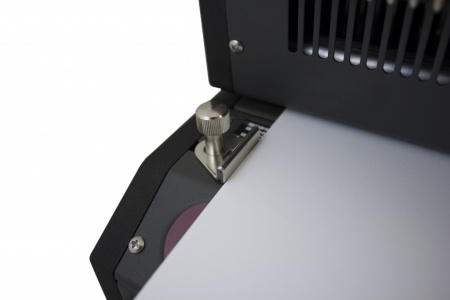

- Side Margin Control: Provides an evenly centered punch for all document sizes.
- Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
- Extra-High-Capacity Waste Drawer
- 6 Height-Adjustable Non-Skid Metal Feet
- CE Certification: All components certified & approved by CE for most stringent safety requirements.
- ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards

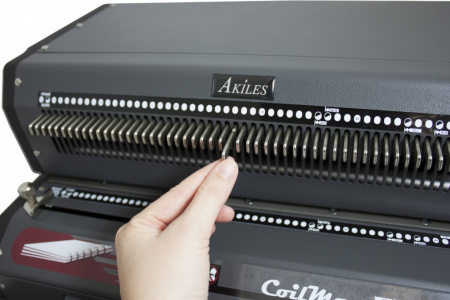

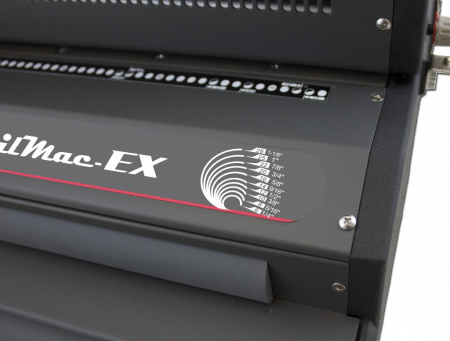

- Includes Coil Diameter Selector & Premium Oval Coil Crimpers
SPECIFICATIONS
- Model: CoilMac-EX +
- Pitch: Standard 4:1 (0.248 Inches )
- Operation: Punching – Electric Inserting – Electric
- Single Punch Capacity: Up to 25 sheets for 20 lbs paper. Up to 2.6 mm for hardboard (28-sheet equivalent thickness)*
- Suggested Binding Capacity: Up to 1 Inches (electric) Up to 2 Inches (manual)
- Single Punch Length: 13 Inches (54 holes)
- Hole Size: Oval (4mm x 5mm)
- Disengageable Pins: All 54
- Weight & Dimensions: 50 lbs
- Warranty: 1 Year
