DIBIPACK 3246 STX One Step Shrinkwrapper Machine

Quantity:

0
MSRP:
$3,495.00

Price You Pay:

$3,100.00

Estimated Oversize Handling Fee :

$180.00
Sorry, Currently Out Of Stock
This Item Has Been Discontinued.
Availability
Online
In Store
Same Day

Description

DIBIPACK 3246 STX One Step Shrinkwrap Machine



DIBIPACK 3246 STX One Step Shrinkwrap Machine. A "one step" semi-automatic shrink-wrapper that is simple to use. The operator places the product on the package loading tray in between the two layers of centerfold film. The operator then moves the package into the sealing area and lowers the hood. Once the hood is lowered, the operator applies pressure to make the seal. When the shrink time is completed, the hood will automatically return to the up position and the operator may remove the completed package.

  • "One-step® system: simultaneous sealing and shrinking
  • Two possible working programs: sealing+shrinking and sealing only.
  • Traditional electronic control panel: sealing time, air temperature and time of hood closing adjustable by hand
  • Hold-down solenoid (the hood remains closed up to the end of shrinking) and starting control with proximity included
  • Unit-counter included
  • Low maintenance
  • Reduced energy consumption
  • Reduced overall machine dimensions: it is not necessary a tunnel.
  • Easily transportable: machine stand equipped with wheels on request
  • Stand and Scrap-rewind on request
  • The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefin films (GREEN FILM GOLDEN FILM) Machine made according to CE rules.


SPECIFICATIONS

  • Power supply :230 V - 1 Ph
  • Maximum power required :2,1 KW
  • Overall machine dimensions L x W : 44.09 x 26.77 INCHES (1120 x 680 mm)
  • Working plate height (on stand) : 36.22 INCHES (920 mm)
  • Machine weight : 156.52 LBS (71 kg)
  • Sealing area W x L : 12.5 x 18 INCHES (320 x 460 mm)
  • Maximum product height : 7.87 INCHES (200 mm)
  • Impulse sealing system : Bottom blade
  • Maximum roll dimensions DIA x W : 9.84 x 18.50 INCHES (250 x 470 mm)
  • Output : 4 - 6 pcs/min

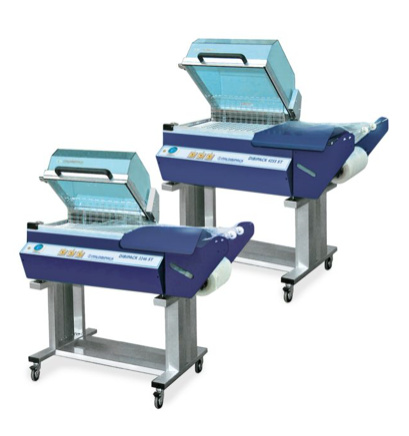

  • Shown with Optional Stand ( Add $245.00)



If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #: 3246 STX
Dimensions (LxWxH): 56.00in. x 28.00in. x 45.00in.
Origin: Italy

SPECIFICATIONS

  • Power supply :230 V - 1 Ph
  • Maximum power required :2,1 KW
  • Overall machine dimensions L x W : 44.09 x 26.77 INCHES (1120 x 680 mm)
  • Working plate height (on stand) : 36.22 INCHES (920 mm)
  • Machine weight : 156.52 LBS (71 kg)
  • Sealing area W x L : 12.5 x 18 INCHES (320 x 460 mm)
  • Maximum product height : 7.87 INCHES (200 mm)
  • Impulse sealing system : Bottom blade
  • Maximum roll dimensions DIA x W : 9.84 x 18.50 INCHES (250 x 470 mm)
  • Output : 4 - 6 pcs/min
  • Shown with Optional Stand ( Add $245.00)
