Description

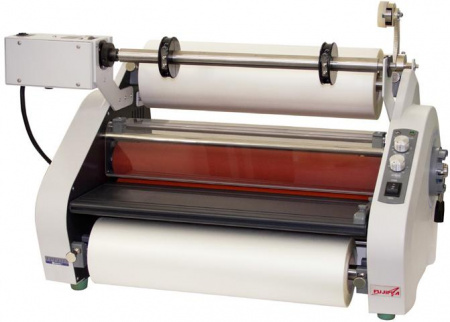

Drylam DL-LPP4513 18” DryLam Versatile TableTop Multi-Laminator

The LPP4513, manufactured by Fujipla, is an incredibly versatile desktop roll laminator that's a jack of all trades, laminating both single sided and double sided prints and mounting PSA and heat activated foam boards, making this compact machine an excellent option for companies that have various lamination needs. The LPP4513 will laminate film rolls up to 18 inches wide with thicknesses ranging between 1.2mil and 5mil with a variable speed that goes up to 10 feet per minute. The mandrels accept 1" and 3" core sizes and the roller pressure gaps to allow foam boards up to 1/4" wide to be inserted for mounting, in addition to simultaneously mounting and laminating a board in a single pass.

This intuitive and user friendly machine features a standby mode for saving energy, heated rollers that ensure scratch free lamination and an easy set temperature dial with a ready light when the correct temperature is achieved. The LPP4513 also includes a foot pedal web advance to prevent wasting lamination and, for single sided laminating, a built-in decurler to produce flat sheets and an inline perforator wheel for easily separating sheets by hand. Optional line rewinder is available seperately for PSA cold pressure lamination.

We highly recommend the LPP4513 for companies needing a heavy duty laminator with a small footprint that can handle nearly any lamination job. We want you completely satisfied with your purchase, which is why we include our Saddle Point Systems One Year Local Warranty for all Bay Area customers. Call us toll free at 855-880-7500 with any questions regarding the LPP4513 or for a free consultation to see if this machine is a good fit for your business' lamination needs.

FEATURES

• One side laminating with built-in decurler and easy hand sheet separation
• Two side Laminating 1.2 to 5 mil films
• Mounting capabilities to foam board
• Foot pedal web advance included
• Easy Set Temperature dial, ready light when set temperature is achieved
• Optional liner rewinder available for use of PSA (cold) films
• Energy saving standby mode
• Heated rollers for scratch free laminations

SPECIFICATIONS

• Manufacturer: Fujipla
• Mandrel Core Size: 1 inch & 3 inches
• Maximum Lamination Width: 18 inches
• Laminating Film Thickness: 1.2 mil - 5 mil
• Lamination Speed: Variable up to 10 feet/minute
• Temperature Control Range: Up to 270°F
• Power Source: 120V AC, 60Hz
• Dimensions: 28.5 W x 17.7 D x 15.8 H Inches
• Net Weight: 65 lbs.
• Warm-up Time: 5 minutes
• Lamination Type: Single & Double Sided
• Maximum Mounting Thickness: 1/4 inches
• Equipped with Built-In Single Sided Decurler
• Warranty: Saddle Point Systems One Year Warranty (Manufacturer's Warranty for non-local customers)
