Description

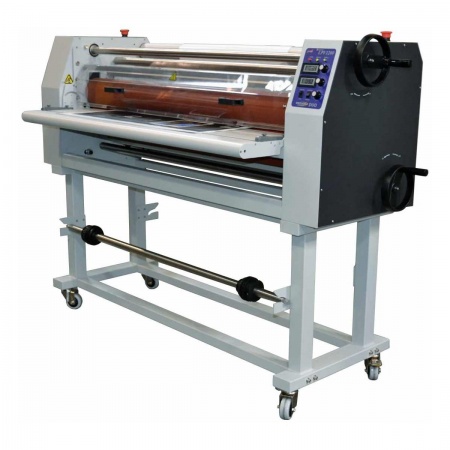

Drylam LPV1200 DUO System 47" Thermal & Pressure Laminator

The LPV1200 DUO System 47" Wide Format Laminator, manufactured by Fujipla, is a dual heat and pressure wide format laminator and mounter of the highest caliber. The LPV1200 features a foot pedal web advance with a mechanical actuated roller that allows you to mount material up to a whopping 1 inch in thickness, making it perfect for foam board. The mandrels are marked at 38 inches and 43 inches for easy film alignment, while a 100lbs heavy duty roller stand is included with this laminating system.

The digital temperature readout tells you the precise temperature of the top and bottom nip rollers, while the versatile DUO System runs thermal and PSA films ranging from 1.2mil to 10mil in thickness, making it perfect for paper stocks, porous materials, non-porous synthetic stocks, floor graphics, decals, signage, etc. Some key safety features include an emergency shutoff button, cooling fans to ensure the machine doesn't overheat, nip area sensors that stop the roller from advancing when tripped and a nip area safety shield that swings up for easy threading and cleaning.

With lamination speed up to 12 feet per minutes, this wide format laminator will efficiently and consistently produce beautiful results.

Safety Features

• Emergency Shutoff Button on Top Rear Corner of Machine (LPP1112 Only)
• Nip area sensors stop roller advancement if tripped
• Nip area safety shield swings up for easy threading and cleaning

Key Features Include:

• Foot pedal web advance included
• Heavy duty roller stand included
• Mechanically actuated pressure gaps up to 1 inch
• Mandrels marked at 38" and 43" for easy film alignment
• Digital temperature readout for top and bottom nip rollers
• Runs thermal or PSA Films
• Includes cooling fans
• Includes release liner and output rewinders
• Affordable wide format mounting and laminating
• Use thermal laminating films or pressure sensitive films 1.5 mil through 10 mil
• Heated upper and lower rollers with independent controls
• Rollers gap to handle up to 1" thick substrates
• 47" width capacity

SPECIFICATIONS
