Description

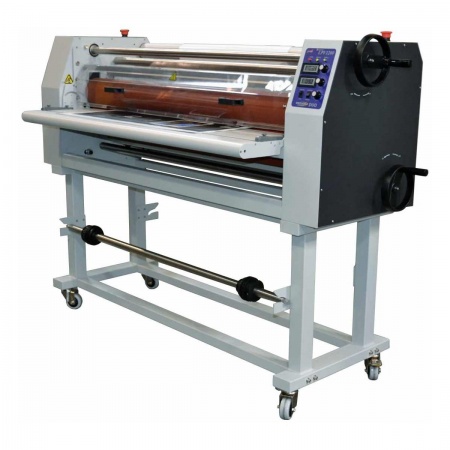

Drylam LPV1600 DUO System 63" Thermal & Pressure Laminator

The LPV1600 DUO System, manufactured by Fujipla, is a wide format laminator and mounter with a 63 inch laminating width that can churn out laminated materials at a rate of 12 feet per minute. Aside from a 16 inch increase in width from its brother model, the LPV1200 DUO (47" wide), the specifications are identical. The LPV1600 will laminate film ranging from 1.2mil - 10mil in thickness and runs both thermal and cold pressure sensitive (PSA) films, making it perfect for paper stocks, porous materials, non-porous synthetic stocks, floor graphics, decals and signage. The mechanical actuated roller will mount material up to 1 inch in thickness, allowing for extra thick, extra wide foam board with convenient marks on the mandrels at 38 inches and 43 inches for easy film alignment.

The LPV1600 comes with a heavy duty stand mounted on casters and includes a release liner and output rewinders for pressure sensitive film rolls. Some key safety features include an emergency shutoff button, cooling fans to ensure the machine doesn't overheat, nip area sensors that stop the roller from advancing when tripped and a nip area safety shield that swings up for easy threading and cleaning. Additionally, the LPV1600 DUO System comes a foot pedal web advance for hands free operation and a digital temperature readout for the top and bottom nip rollers for added precision.

We highly recommend this incredibly versatile laminating and mounting system to anyone looking to laminate high volumes of large format materials.

Safety Features

• Emergency Shutoff Button on Top Rear Corner of Machine (LPP1112 Only)
• Nip area sensors stop roller advancement if tripped
• Nip area safety shield swings up for easy threading and cleaning

Key Features Include:

• Foot pedal web advance included
• Heavy duty roller stand included
• Mechanically actuated pressure gaps up to 1 inch
• Mandrels marked at 38" and 43" for easy film alignment
• Digital temperature readout for top and bottom nip rollers
• Runs thermal or PSA Films
• Includes cooling fans
• Includes release liner and output rewinders
• Affordable wide format mounting and laminating
• Use thermal laminating films or pressure sensitive films 1.5 mil through 10 mil
• Heated upper and lower rollers with independent controls
• Rollers gap to handle up to 1" thick substrates
• 63" width capacity

SPECIFICATIONS
