Description

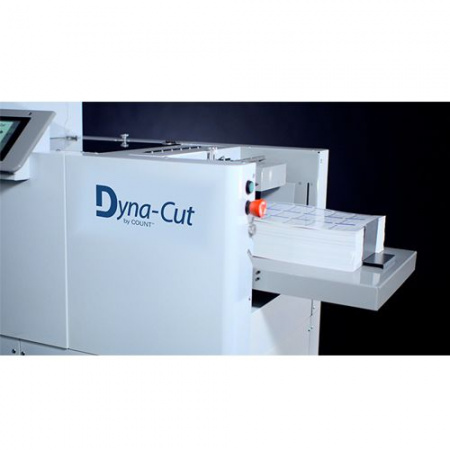

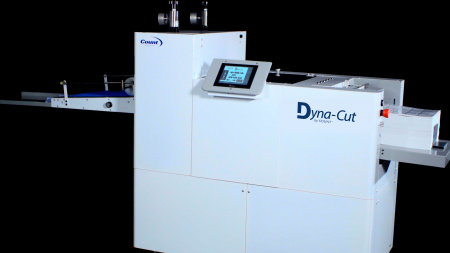

COUNT | Dyna-Cut Rotary Die Cutter

The COUNT Dyna-Cut is an affordable rotary die cutter system that produces top-quality pieces from custom flexible dies. Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches. The Dyna-Cut produces a variety of digital print and packaging products such as custom-shaped brochures and direct mailers, invitations, retail packages, labels, greeting cards, and folded boxes. At a speed of up 6,000 cycles per hour, the Dyna-Cut produces not only single and multiple-up pieces but a wide variety of paper stocks up to 14"x 20". Other great features include: Fast and efficient die changes, Touch Screen User Interface, Top Feed Vacuum System, Large 8" Capacity Feeder, and Conveyor System with Scrap Separator.

FEATURES

• Designed for use with flexible dies.
• Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches.
• High speed output of up to 6,000 cycles per hour.
• Fast and efficient die changes.

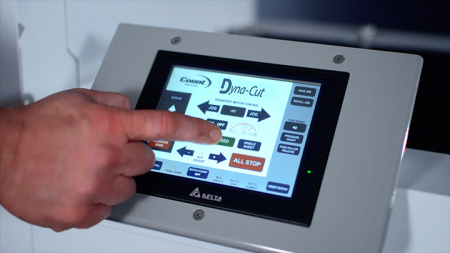

• Touch Screen User Interface.
• Top Feed Vaccuum System.
• Large 8 inch Capacity Feeder.

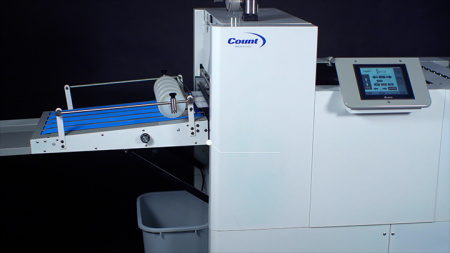

• Conveyor System with Scrap Separator.

SPECIFICATIONS

• Speed: 6000 cycles per hour
• Lead time for dies: 1 week

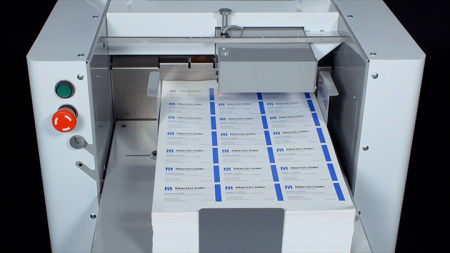

• Feed Capacity: Vacuum fed, 8 in
• Delivery: Motorized belt
• Rollers: Urethane
• Registration Mark Sensor: Yes
• Reg Board Alignment: Yes
• In-line Scrap Separator: Yes
• Paper Weight Range: 106-400 gsm
• Dimensions: 105 L x 29.25 W x 55.25 H in
• Max Sheet Size: 20.0 L x 14.0 W in
• Min Sheet Size: 11.0 L x 8.25 W in
• Voltage: 110v or 220v
• Motor: Dual (cylinder and feeder)
• Double Sheet Detector: Yes
