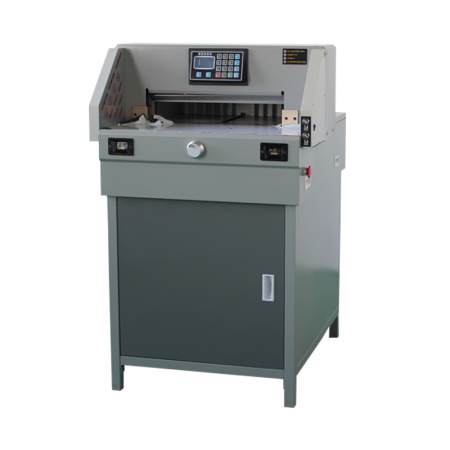

ERC 4908S Programmable Electric Paper Cutter 19.29 Inch(490mm) Cutting Width | 3.14 Inch (80mm) Cutting Height

Quantity:

MSRP:
$4,750.00

Price You Pay:

$3,995.00

Estimated Oversize Handling Fee :

$350.00
Yes! This Item Is In Stock!
Availability
Online
In Store
Same Day

Description

ERC 4908S Programmable Electric Paper Cutter 19.29 Inch(490mm) Cutting Width | 3.14 Inch (80mm) Cutting Height



FEATURES

  • Cutting thickness is 80 mm (3.14-Inch)
  • Infrared for safety operation;
  • .Programmable: 100 programs with 7cuts in each program
  • Electronic hand wheel for backgauge position with variable speed.
  • Blade fine-depth can be adjusted from outside of machine.
  • Single clamping button for convenient operation
  • Red Emergency Stop Switch
  • Fine rotate button for backgauge position with variable speed
  • Guided on both sides for pushing paper
  • Cutting motor with non-noise.
  • Distance from front edge of Cutting Table to front of Cutting Blade: 275mm/10.826 inches
  • Distance from back of Cutting Blade to the Back of the Cutting Table (Behind the Blade) is 490mm or 19.29 Inches.

Note: When making your purchase of this item, consider that we carry all parts for this Cutter and offer you support! We are in the USA and you can easily reach us by CHAT, E-mail, Fax, and Telephone. See if our competitors can make those same statements. Most of them do not and cannot.

SPECIFICATIONS

  • Max Cutting Size :490 mm (19.29 Inch)
  • Cutting Height:80 mm (3.14 Inch)
  • Min Cutting Size : 40 mm (1.57 Inch)
  • Cutting Precision : ±0.3mm (0.011 Inch)
  • Clamp Operation : Electric
  • Cutting Paper Model : Programmable
  • Display : LCD
  • Table : Stainless Steel
  • Power : 220v(110v)±10% 50HZ 1.3KW
  • Net Dimensions : 768 x 960 x 1230 mm (30 x 38 x 48 Inch)
  • Net Weight : 160 kgs (353 Lbs)
  • Shipping Dimensions: 768 x 960 x 1230 mm (42 x 39 x 58 Inch)
  • Shipping Weight : 390kgs (860 Lbs)

DEMO VIDEO






If you have any questions or concerns, contact a customer service representative today.
Phone: 877.336.6877 Visit: www.officeequipmentmachineshop.com


Specifications

Manufacturer Part #:
Dimensions (LxWxH): 31.00in. x 38.00in. x 49.00in.

SPECIFICATIONS

  • Max Cutting Size :490 mm (19 Inch)
  • Cutting Thickness :80 mm (3 Inch)
  • Min Cutting Size : 40 mm (1.57 Inch)
  • Cutting Precision : ±0.3mm (0.011 Inch)
  • Backstop Contral: Programmable or Manual Numerical Control. Precision Fine Tuning. Electronic Handwheel makes for eacy calibration.
  • Clamp Operation : Electric
  • Cutting Paper Model : Programmable
  • Display : LCD
  • Table : Stainless Steel
  • Power : 220v(110v)±10% 50HZ 1.3KW
  • Net Dimensions: 768 x 960 x 1230 mm (30 x 38 x 48 Inch)
  • Net Weight : 160 kgs (353 Lbs)
